SECTION 3 - MACHINE CONTROLS AND INDICATORS

3121678

– JLG Lift –

3-9

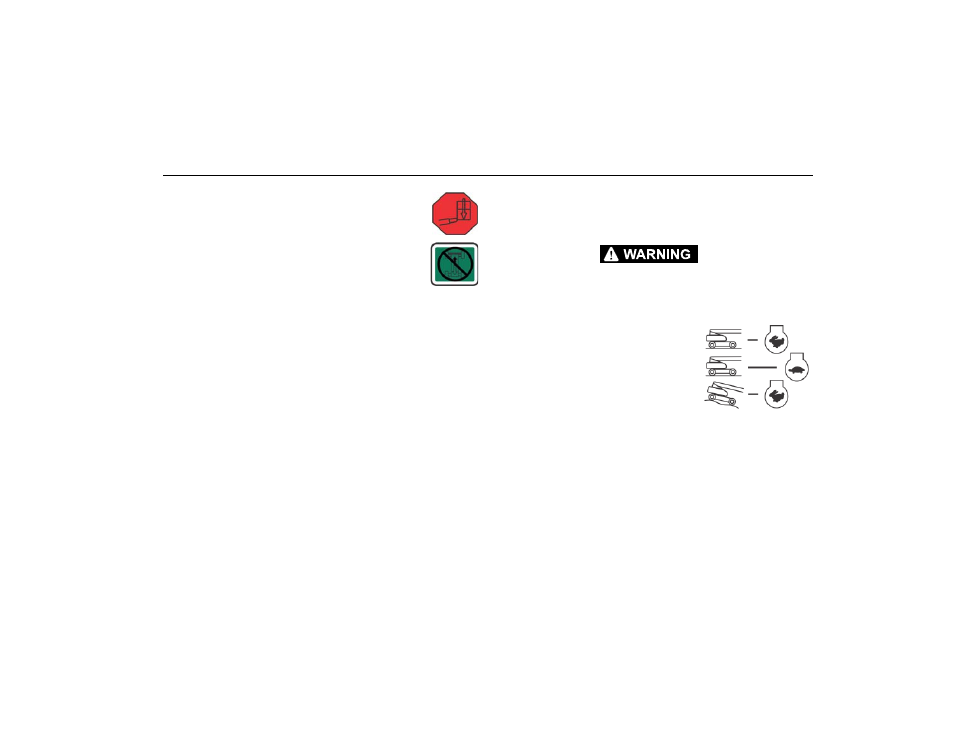

Platform Overload Indicator. (If Equipped)

Indicates the platform has been overloaded.

Drive and Steer Disable Indicator (If equipped)

Indicates the Drive and Steer Disable function
has been activated.

Platform Console

(See Figure 3-2., Platform Console)

TO AVOID SERIOUS INJURY, DO NOT OPERATE MACHINE IF ANY CONTROL LEVERS OR
TOGGLE SWITCHES CONTROLLING PLATFORM MOVEMENT DO NOT RETURN TO THE
OFF OR NEUTRAL POSITION WHEN RELEASED.

Drive Speed/Torque Select

The machine has a two position
switch - The forward position
gives maximum drive speed. The
back position gives maximum
torque for rough terrain and
climbing grades.
