SECTION 3 - CHASSIS & SCISSOR ARMS
3121133 – JLG Sizzor – 3-5
3.3 LEVEL SENSOR AND ANALYZER CONNECTIONS
The level sensor is located at the ground control station.
Using a screwdriver, open the ground control station and
locate the level sensor as shown in Figure 3-2., Level Sen-
sor and Analyzer Connections.
There are two analyzer connection ports. One in the
ground control station and the other at the platform con- trol station on the under side of the platform control box as
shown in Figure 3-2., Level Sensor and Analyzer Connec-
tions.
NOTE: Ensure that the level sensor is installed with the bub-
ble towards the top side of the lower control box.

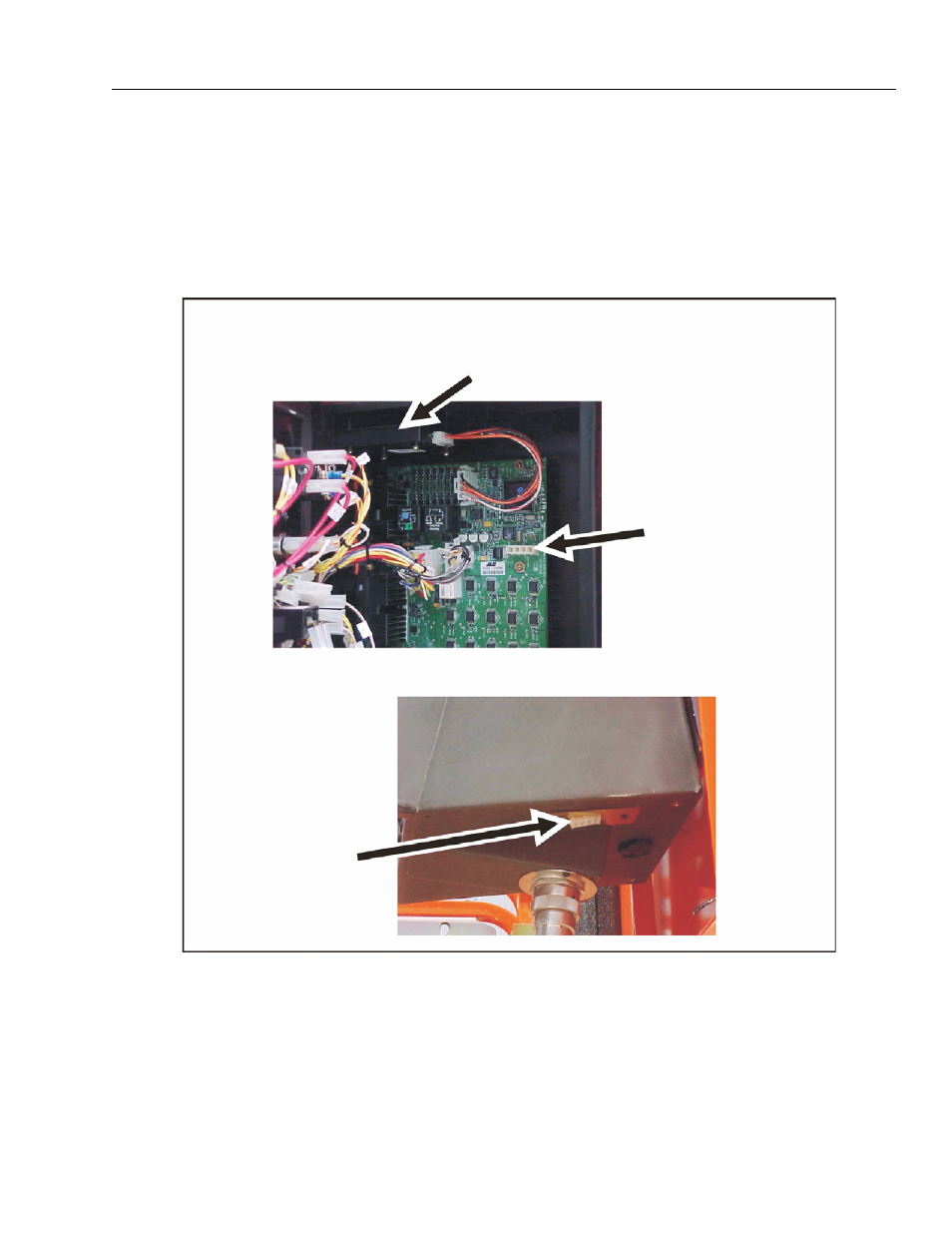

Figure 3-2. Level Sensor and Analyzer Connections
Ground Control
Analyzer Connection
Level Sensor
Platform Control
Analyzer Connection
