SECTION 3 - CHASSIS & SCISSOR ARMS

3-20

– JLG Sizzor –

3121133

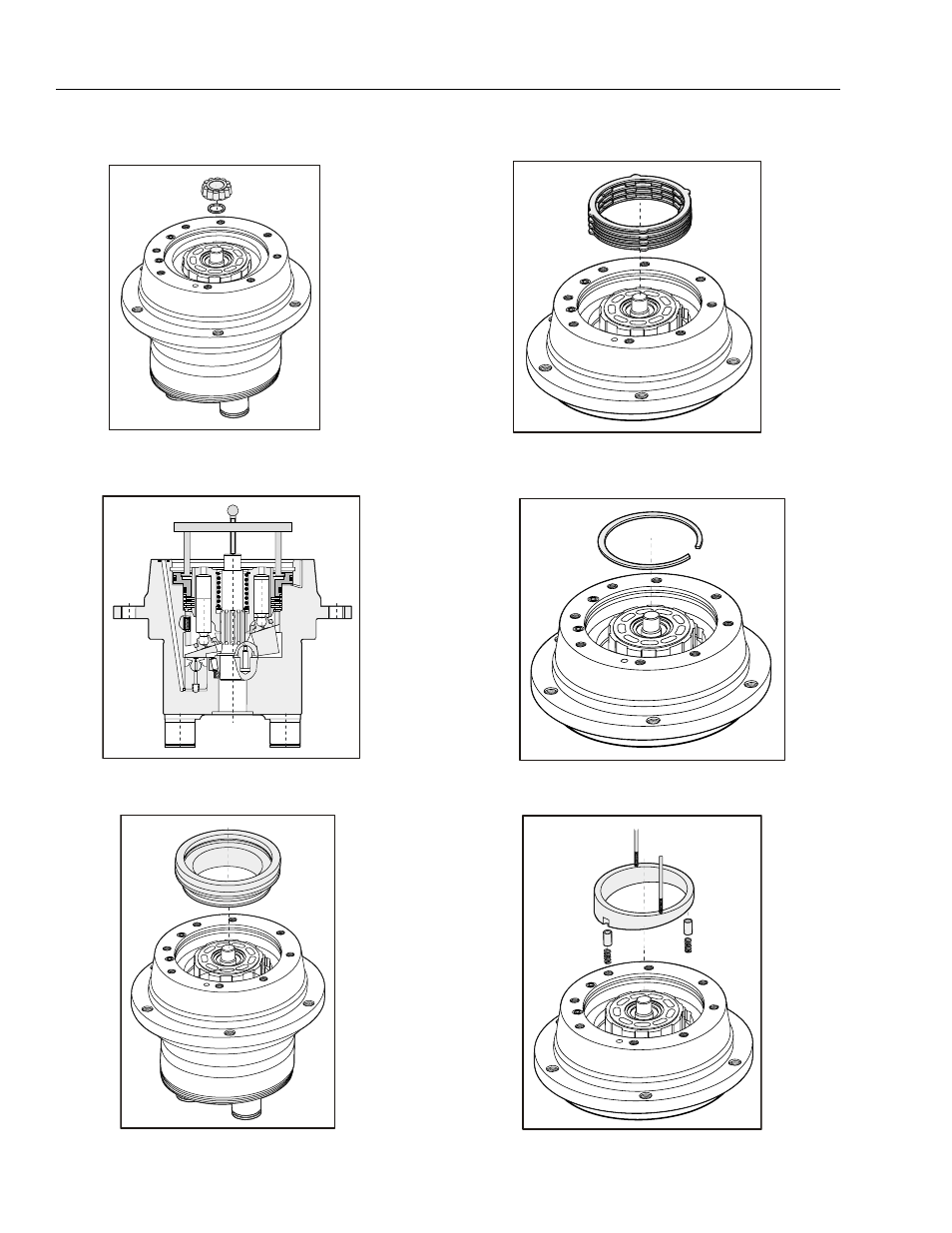

5. Disassemble bearing with synchronizing plate.

6. Press off pressure ring with extractor.

7. Remove pressure ring.

8. Disassemble lamination kit.

9. Disassemble Seeger snap ring.

10. Disassemble cradle stop with 2 screws M4 x 75mm.
