Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
4
1
3

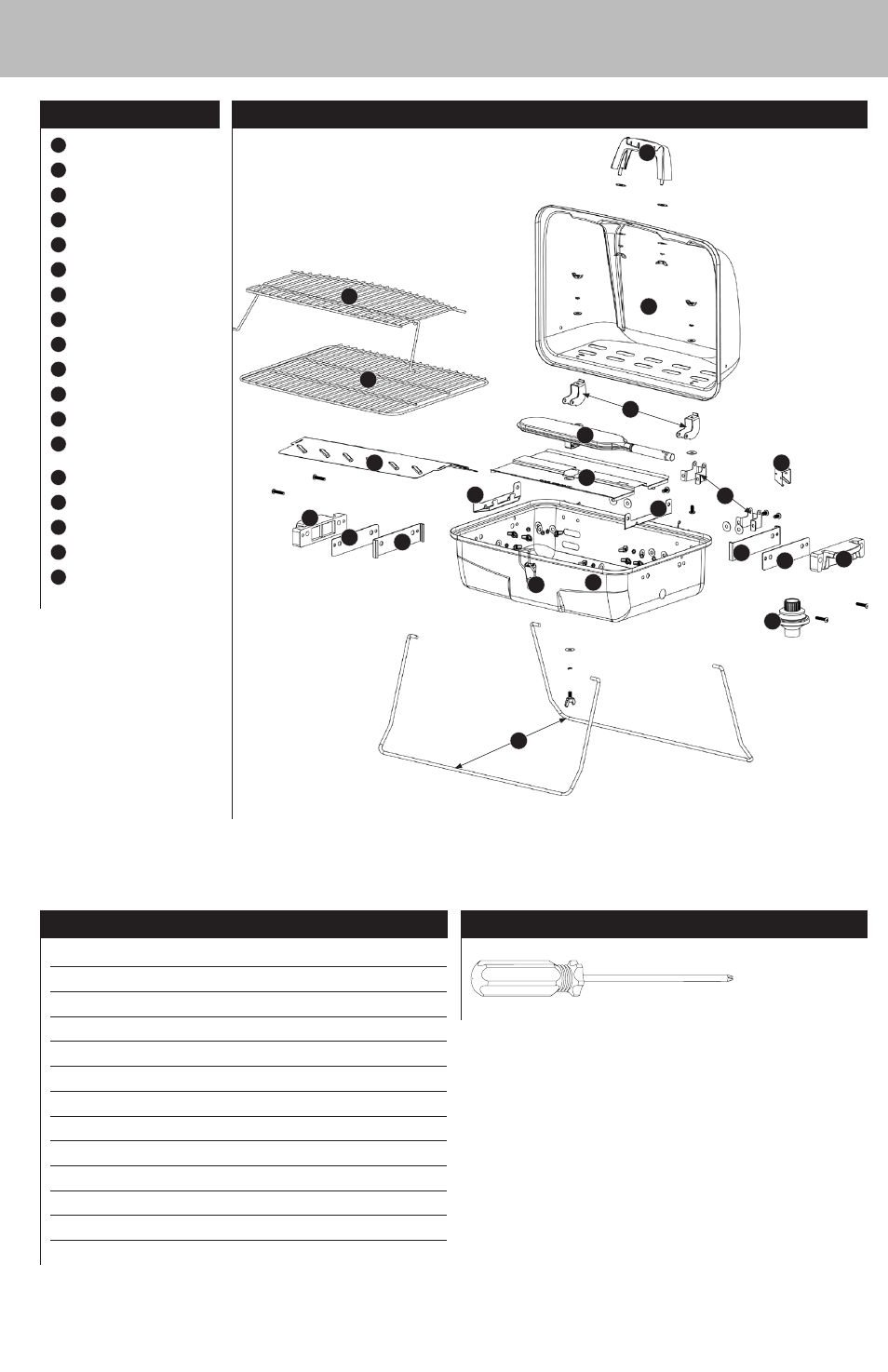

Parts List
1 Lid Handle
2 Lid
3 Warming Rack
4 Cooking Grid
5 Top Hinge (2)
6 Burner
7 Wind Cover
8 Bottom Hinge (2)
9 Heat Plate
10 Heat Reflector Plate
11 Heat Plate Support (2)
12 Side Handle (2)
13 Side Handle Heat Reistant
Washer (2)
14 Side Handle Heat Plate (2)
15 Bottom Bowl
16 Lock
17 Regulator/Control Valve
18 Leg (2)
Hardware
A
Screw M5x12 Nickel Plated Phillips Truss Head 6 pcs
B
Screw M5x35 Nickel Plated Phillips Truss Head 4 pcs
C
Wing Bolt M6x15 Nickel Plated 1 pc
D
Wing Nut M5 Steel 10 pcs
E
Wing Nut M6 Steel 2 pcs
F
Washer M5 Steel 10 pcs
G
Washer M6 Steel 3 pcs
H
Washer ø6 Heat Resistant 8 pcs
I
Lock Washer ø5 Zinc Plated 10 pcs
J
Lock Washer ø6 Zinc Plated 3 pcs
K
Pin ø5 x 30 Zinc Plated 2 pcs
L
Cotter Pin ø1.4 x 30 Steel 2 pcs
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver
15
6
12
11
10
13
14
16
17
9
2
Exploded View
5
8
7
11
12
13
14
18
