SECTION 7 - BASIC ELECTRICAL INFORMATION & SCHEMATICS
3121298 – JLG Lift – 7-9
HD30/HDP20 Series Assembly
1. Grasp contact (1) about 25mm behind contact crimp
barrel.
2. Hold connector with rear grommet (2) facing you.

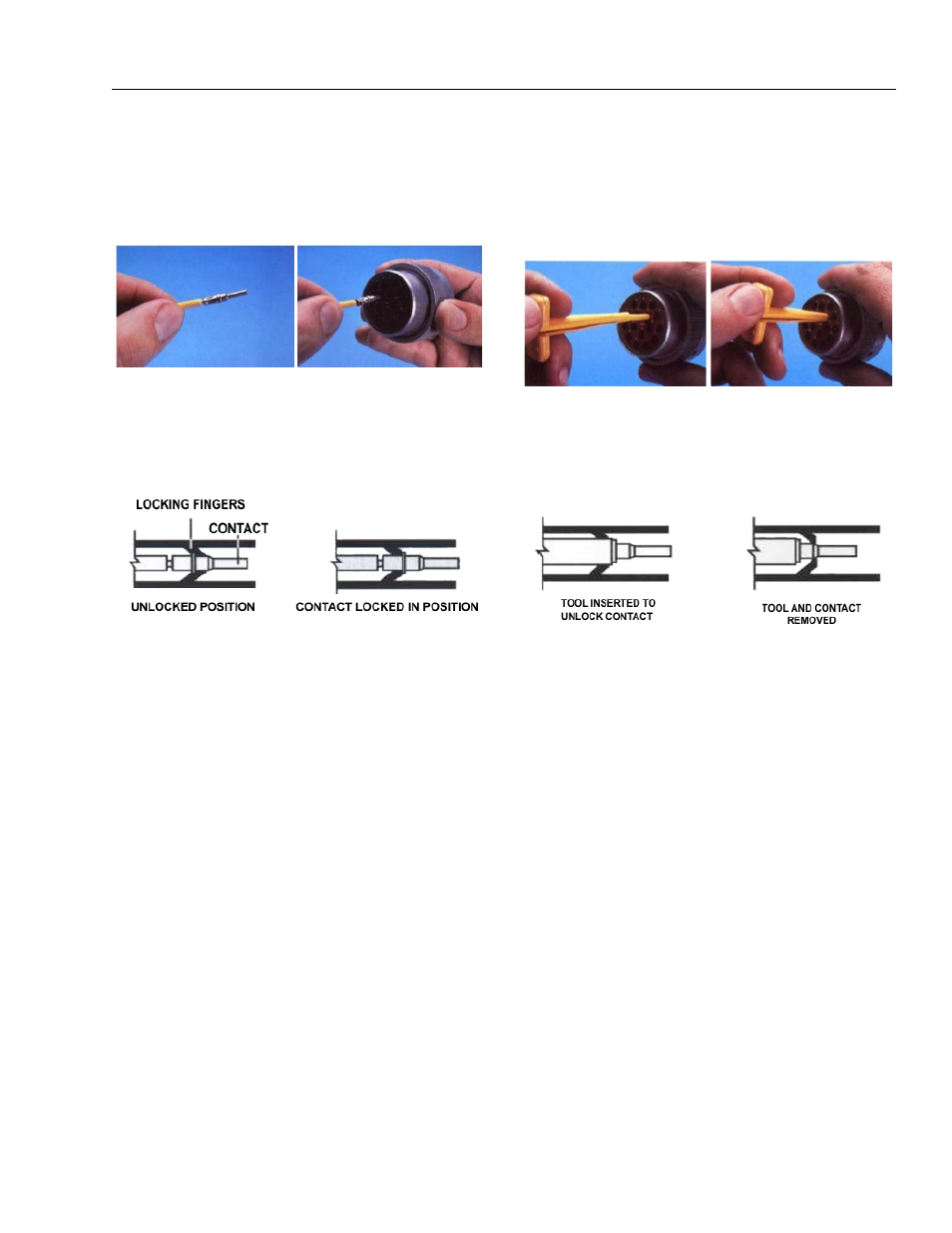

Figure 7-22. HD/HDP Contact Installation
3. Push contact straight into connector grommet until a
positive stop is felt. A slight tug will confirm it is locked
in place.
Figure 7-23. HD/HDP Locking Contacts Into Position
NOTE: Insert sealing plugs in unused wire cavities for full environ-
mental sealing.
HD30/HDP20 Series Disassembly
1. With rear insert toward you, snap appropriate size
extractor tool (1) over wire of contact to be removed.
2. Push tool in the insert cavity (2) until it engages contact
and resistance is felt.
Figure 7-24. HD/HDP Contact Removal
3. Pull contact-wire assembly out of connector
NOTE: Do Not twist or insert tool at an angle.
Figure 7-25. HD/HDP Unlocking Contacts
1 2
1 2
