SECTION 7 - BASIC ELECTRICAL INFORMATION & SCHEMATICS
7-6 – JLG Lift – 3121298
7.4 AMP CONNECTOR
Plug and header assembly colors are mechanically keyed to
mate only with identical colors.

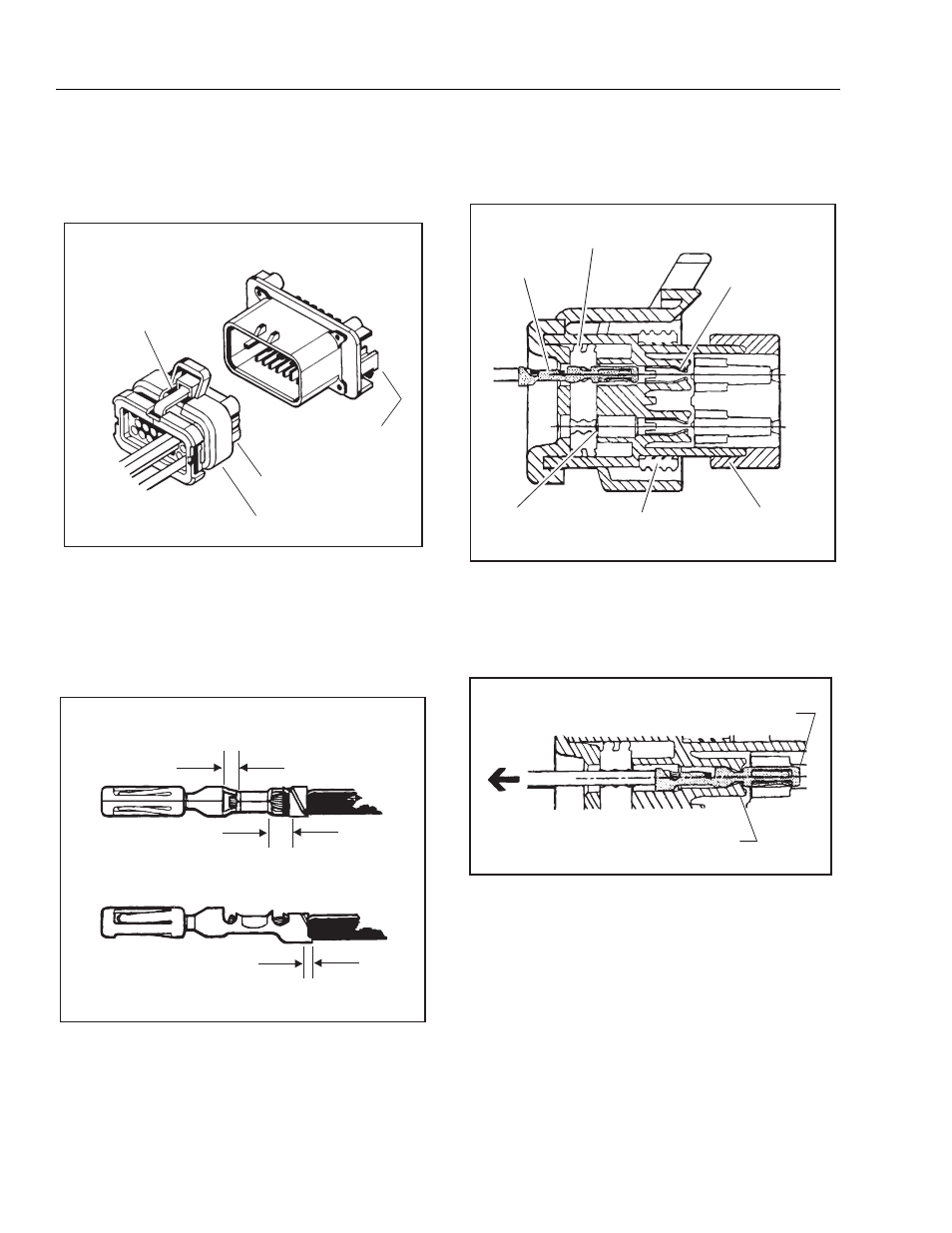

Figure 7-13. AMP Connector
Contact Assembly
1. Strip wire and install in crimp end of connector as
shown in Figure 7-14.
2. Crimp connector. Do not damage cutoff tab.
Figure 7-14. AMP Contact Assembly
Connector Assembly
1. Check wedge lock is in the open, or as-shipped, position.
Figure 7-15. AMP Connector Assembly
2. Push contact straight into circuit cavity as far as it will go.
3. Pull on contact wire with a force of 1 - 2 lb to be sure
retention fingers are holding contact.
Figure 7-16. AMP Contact Installation
