ELECTRICAL
G10-55A, G12-55A 3126020 10-42

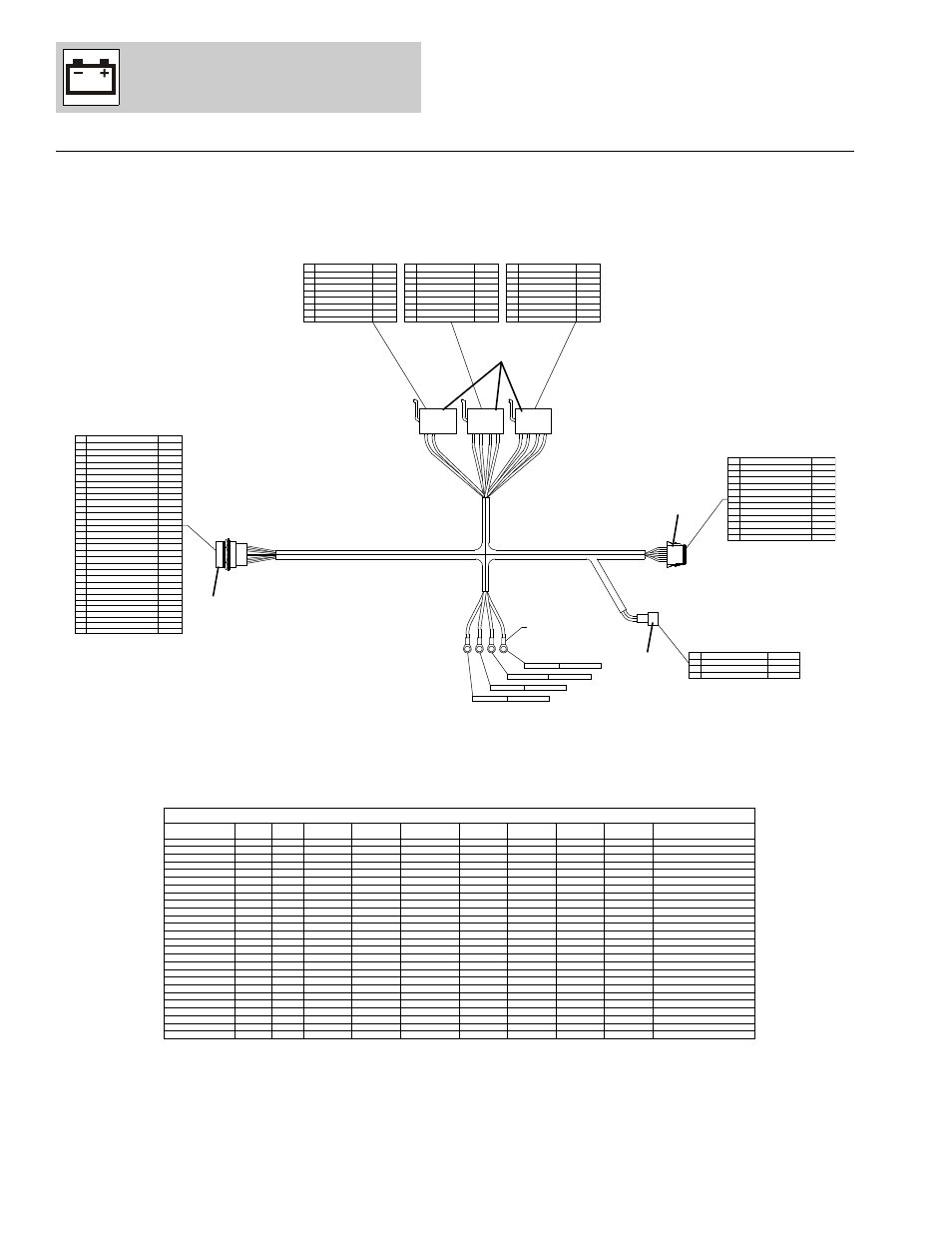

Figure 10-9 Dash Harness
OPEN
WIRE DESIGNATION
8 --
7 OPEN --
6 OPEN --
5 OPEN --
4 OPEN --
3 HORN 16 GXL
2 HORN PWR 16 GXL
1 OPEN --
CONN
POS WIRE GA
& TYPE
OPEN
WIRE DESIGNATION
8 --
7 DASH GND 16 GXL
6 ST RLY 16 GXL
5 SHIFT PWR 1 16 GXL
4 OPEN --
3 OPEN --
2 TRAN/BRK PWR 16 GXL
1 PK BRK SOL 16 GXL
STEER/SWAY PWR
WIRE DESIGNATION
8 16 GXL
7 HORN PWR 16 GXL
6 GAGE PWR 16 GXL
5 DASH GND 16 GXL
4 KEY START 16 GXL
3 KEY ACC 16 GXL
2 KEY IGN 16 GXL
1 KEY BAT PWR 16 GXL
CONN
POS WIRE GA
& TYPE
OPEN
WIRE DESIGNATION
8 --
7 DASH GND 16 GXL
6 OPEN --
5 OPEN --
4 OPEN --
3 STR AW 16 GXL
2 STEER/SWAY PWR 16 GXL
1 STR CRB 16 GXL
CONN
POS WIRE GA
& TYPE
CONN
POS WIRE GA
& TYPE
9 STR AW 16 GXL
PK BRK SOL 16 16 GXL
15 SHIFT PWR 1 16 GXL
14 ST RLY 16 GXL
13 TRANS TMP SW 16 GXL
12 FUL LVL 16 GXL
11 HORN 16 GXL
10 STR CRB 16 GXL
17 HR MTR 16 GXL
PLUGGED 24 --
23 TRAN/BRK PWR 16 GXL
22 ENG STOP LT 18 GXL
21 ENG WARN LT 18 GXL
20 WAIT TO START LT 18 GXL
19 CLT TMP 16 GXL
18 OIL PSI 16 GXL
25 PLUGGED --
26 PLUGGED --
27 PLUGGED --
28 PLUGGED --
29 CAN H/904
30 CAN L/905
31 SHIELD /020 --
A
G
WIRE DESIGNATION
C SHIELD /020 - -
B CAN L/905 18 GXL
A CAN H/904
CONN
POS WIRE GA
& TYPE
KEY START 16 GA GXL
KEY BAT PWR 16 GA GXL
KEY ACC 16 GA GXL
F
HR MTR
WIRE DESIGNATION
8 16 GXL
7 TRANS TMP SW 16 GXL
6 ENG STOP LT 18 GXL
5
KEY IGN 16 GA GXL
GAGE PWR 16 GXL
4 CLT TMP 16 GXL
3 DASH GND 16 GXL
2 OIL PSI 16 GXL
1 FUL LVL 16 GXL
CONN
POS WIRE GA
& TYPE
B
A
8 1 2 3
B
(4 PLACES)
A
8 1 2 3
B
A
8 1 2 3
B C D
E
#10 RINGS
18 GXL
--
--
18 GXL
18 GXL ENG WARN LT 9
10
11
12 WAIT TO START LT
PLUGGED
PLUGGED
18 GXL
18 GXL
CARLINGSWITCH
CARLINGSWITCH
CARLINGSWITCH
CARLINGSWITCH
CARLINGSWITCH
CARLINGSWITCH
CARLINGSWITCH
CARLINGSWITCH
CARLINGSWITCH
#10 RINGS
#10 RINGS
KEY ACCESSORY
KEY BATTERY POWER
KEY IGNITION
KEY START
OIL PSI
RED
ENG WARN LT VIOLET
HR MTR
HORN PWR
ORANGE
WIRE END
A
CLT TMP
KEY BAT PWR
DASH GND
KEY IGN
SHIFT PWR 1
ST RLY
STEER/SWAY PWR ORANGE
STR AW
STR CRB 16
BROWN
KEY ACC
KEY START
OIL PSI
VIOLET
GAGE PWR
HORN
ENT STOP LT ORANGE
FUL LVL
DK BLUE
BLACK
VIOLET
DK BLUE
RED
VIOLET
CARLINGSWITCH
COOLANT TEMP
REMARKS
WIRE CHART
PK BRK SOL VIOLET
TRAN/BRK PWR ORANGE 16
TRANS TMP SW 16
DK BLUE
VIOLET
WAIT TO START LT WHITE
VIOLET
DK BLUE
DASH GROUND
ENGINE STOP LIGHT
FUEL LEVEL
GAGE POWER
HORN
HORN POWER
HOUR METER
ENGINE WARN LIGHT
COLD STAR AID WAIT LIGHT
PARK BRAKE SOLENOID
SHIFT POWER 1
START RELAY
STEER POWER
ALL-WHEEL STEER
CRAB STEER
TRANS/BRAKE POWER
TRANSMISSION TEMP SWITCH
RED
VIOLET
ORANGE
16
16
16
16
16
18
18
16
16
16
16
16
16
16
16
16
16
18
16
16
WIRE END
B
WIRE END
C
WIRE END
D
WIRE END
E
WIRE END
F
WIRE END
G
CARLINGSWITCH
WIRE
GAUGE WIRE
COLOR/STRIPE
WIRE
DESIGNATION
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH HD
DEUTSCH DT
DEUTSCH DT
DEUTSCH DT
DEUTSCH DT
DEUTSCH DT
DEUTSCH DT
DEUTSCH DT
DEUTSCH DT
#10 RINGS
#10 RINGS
DEUTSCH DT
DEUTSCH DT
CAN H/904 18 YELLOW CAN BUS HIGH DEUTSCH HD
CAN L/905 18 GREEN CAN BUS LOW DEUTSCH HD
SHIELD /020 - - CAN BUS SHIELD DEUTSCH HD - -
DEUTSCH DT
DEUTSCH DT
DEUTSCH DT
2
3
4
1
PAP3380
G10-55A S/N 0160032061 thru 0160037175
G12-55A S/N 0160032067 thru 0160037176
