OPTIONS
G9-43A/G10-43A 91514001 12-24

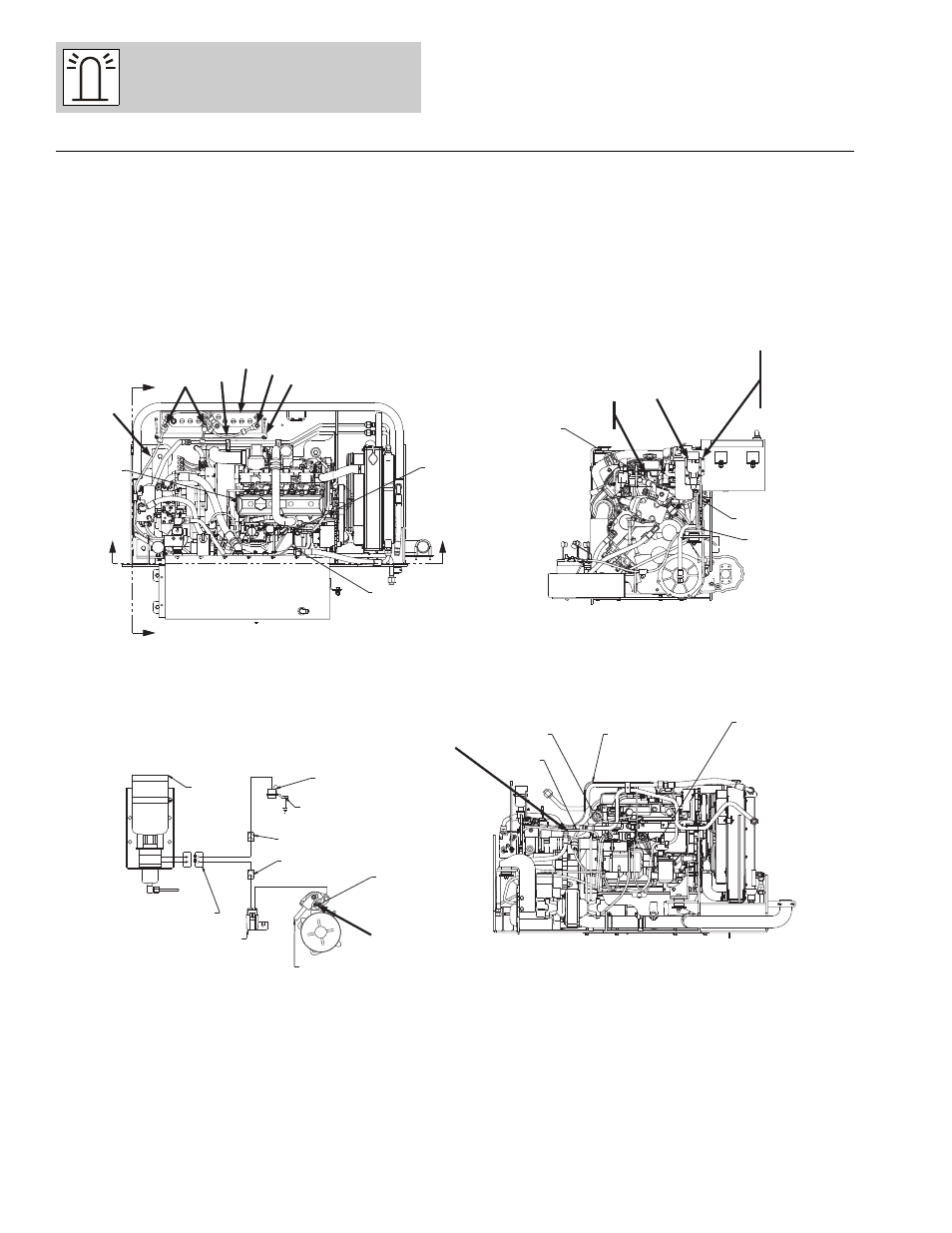

Figure 12-5 Cold Start Installation - John Deere Engine
5
6
7
8
9
10
11
12
13
1
2
3
4
E.T.S. SWITCH
NYLON TUBING
TO COLD START BOTTLE
(TIE WRAP TO TOP TUBE)
NOZZLE FOR
COLD START KIT
(THREAD INTO
INTAKE TUBE)
HARNESS FROM COLD
START BOTTLE
HARNESS THAT HAS
A DOUBLE WEATHERPACK
ON ONE END AND TWO
SINGLE WEATHERPACKS
ON THE OTHER
E.T.S. SWITCH
MOUNTED TO ENGINE
(BASE MUST BE IN
CONTACT WITH ENGINE)
IN-LINE FUSE HARNESS
(TIE WRAP TO
ENGINE HARNESS)
CONNECTOR
HARNESS
E.T.S HARNESS NYLON TUBING TO
COLD START BOTTLE
(TIE WRAP TO TOP
HYDRAULIC TUBE)
A
B
KOMPAC KBI
LEFT HAND FILTER FITTING
212020 12V DC
REMOVE RING TERMINAL
SUPPLIED WITH HARNESS
AND REPLACE WITH
P/N 8698-3191.
ATTACH TO SOLINOID
TERMINAL ON STARTER.
POSITIVE
BATTERY CABLE
E.T.S SWITCH
WEATHERPACK SINGLE
WIRE CONNECTOR
WEATHERPACK SINGLE
WIRE CONNECTOR
WEATHERPACK DOUBLE
WIRE CONNECTOR
FUSE HOLDER
COLD START
BOTTLE
THIS SURFACE
MUST BE IN CONTACT
WITH ENGINE
14
14
SCHEMATIC
VIEW B-B
VIEW A-A
A A
B
B
NOTE: ADD LOCTITE ® 242 TM (0100011) ON ALL BOLT THREADS.
USE LOCTITE ® 545 TM (0100075) ON ALL HYDRAULIC FITTING THREADS.
Before S/N 0160040675
excluding 0160040468 & 0160040672
