Page 36
G9-43A/G10-43A
91514001
2-8
BOOM

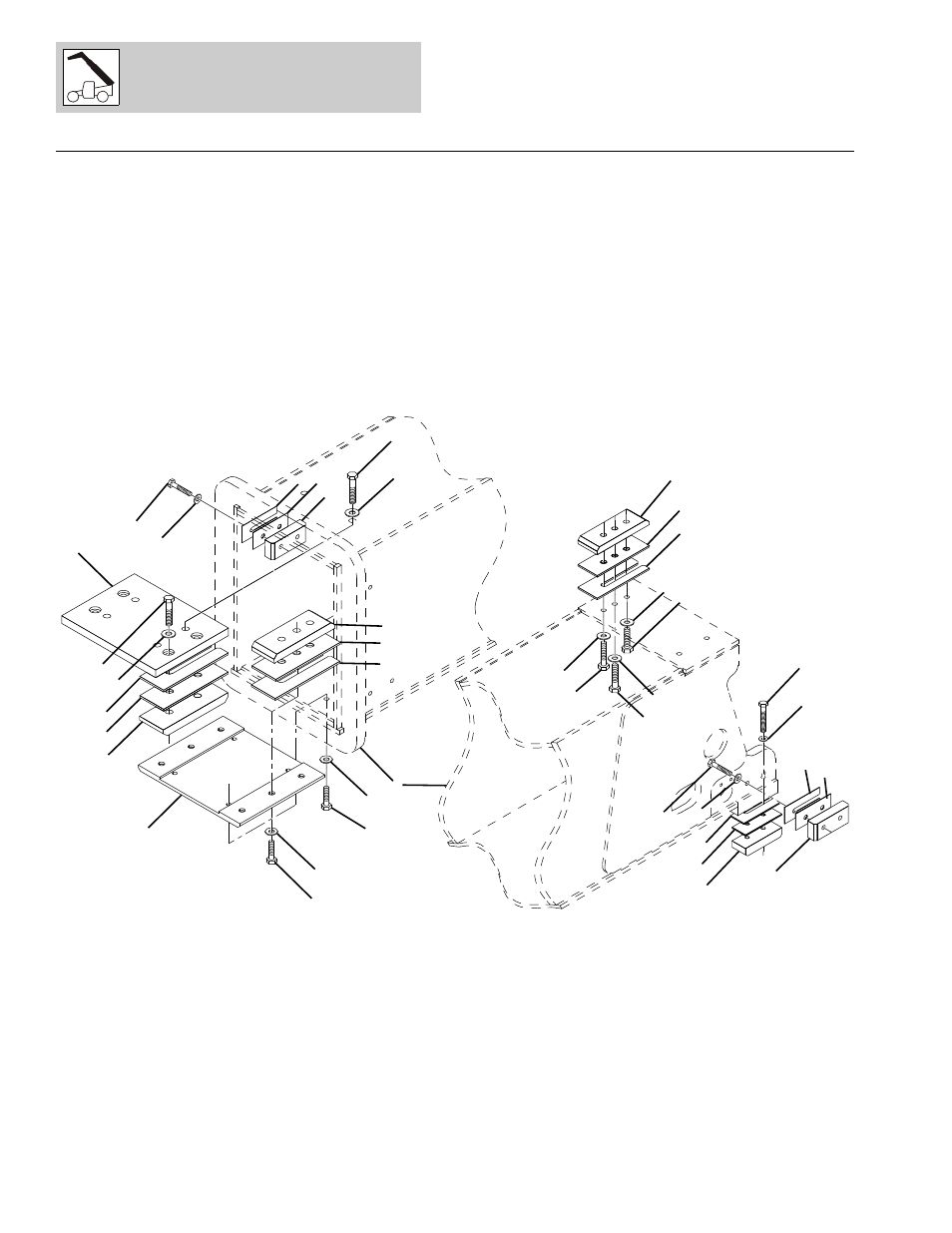

Figure 2-4 Bearing Pads, Spacers & Shims, (Second Boom Section)
PAP11410
19
18
11
12
1
22
4
21
23
18
19
7
2
3
8 9
10
11
12
13
5
18
19
18
20
18
19
5
6
13
15
16
17
2
3
10
8
9
3
14
6
NOTE: 1. WEAR PAD SHIMMING:
A. WHENEVER A SHIM IS USED WITH A PAD, A SPACER WITH HOLES MUST BE INSERTED BETWEEN PAD & SHIM.
B. THE WEAR PAD OR WEAR PAD INSERT MUST NOT SIT DIRECTLY ON THE SLOTTED SURFACE OF SHIMS.
C. BEFORE S/N 0160037671 ADD BEARING PAD SHIMS & SPACERS AS REQUIRED TO SHIM BOOM TO WITHIN 1/16 IN. (1.58 MM)
OF A TIGHT FIT.
S/N 0160037671 & AFTER ADD BEARING PAD SHIMS & SPACERS AS REQUIRED TO SHIM BOOM TO MAINTAIN A TOTAL MINIMUM GAP
OF 0.070 TO 0.130 IN. (1.8 TO 3.3 MM) BOTH HORIZONTAL & VERTICAL DIRECTIONS.
D. THE LENGTH OF PAD BOLTS DEPENDS ON THE NUMBER OF THE SHIMS USED. THE BOLT CANNOT EXTEND PAST
CHAMFER ON WEAR PAD.
2. USE LOCTITE
®
242
TM
(0100011) ON ALL BOLT THREADS.
3. ADD MYSTIK TETRIMOLY GREASE (14404793) TO ALL PAD SLIDE PATHWAYS. IF APPLICABLE, THIS INCLUDES ALL PAD
GREASE FITTINGS AT THE REAR OF BOOM.
