ELECTRICAL
91514001 G9-43A/G10-43A 10-19

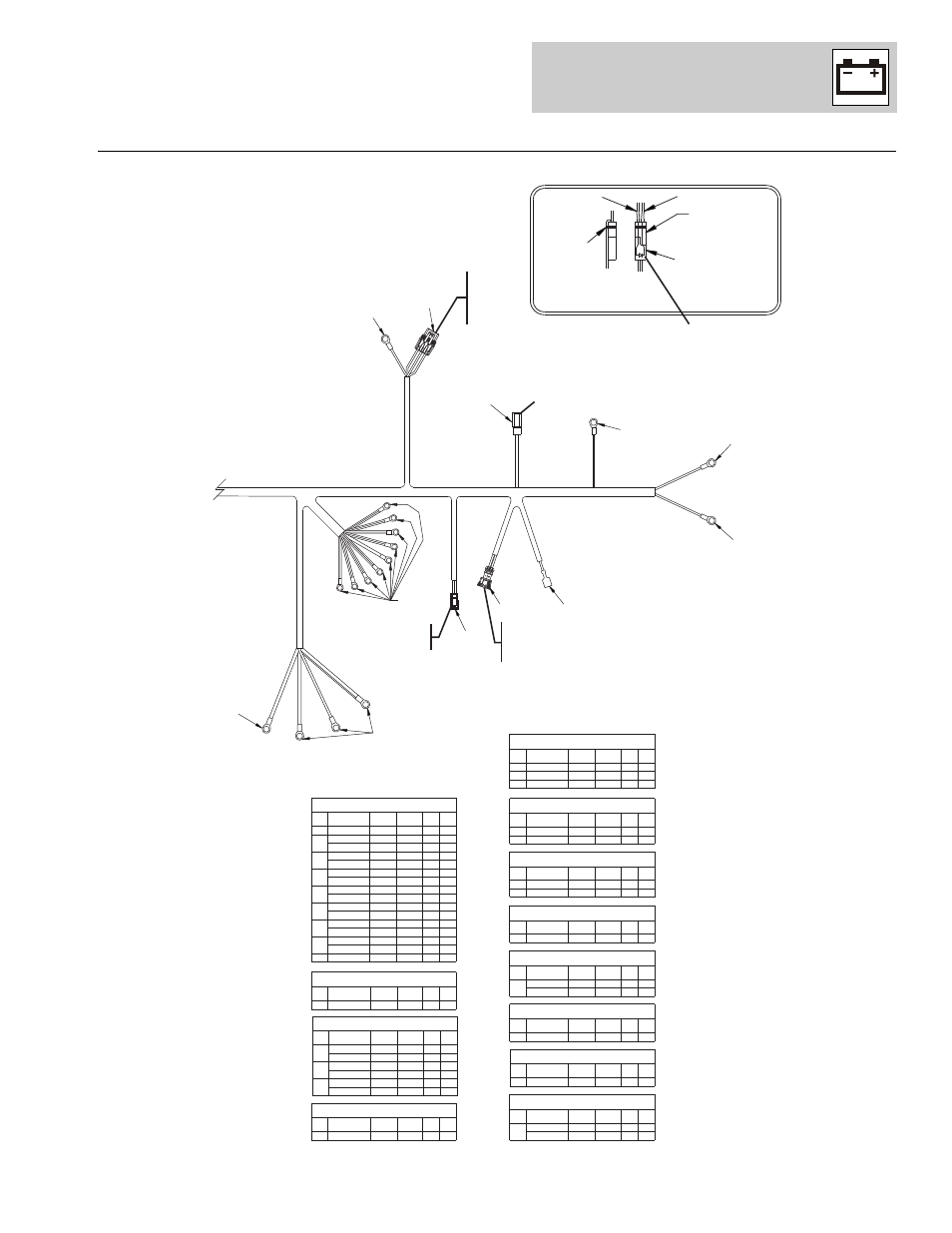

Figure 10-3 Engine Harness - Perkins Engine (Continued)
PAL1041
DIODE
INSTALLATION
(TYP) 3-PLCS
MOLDED DIODE
POWER GND
TIE WRAP
MOLDED
TWO POSITION
CONNECTOR
32
X18
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 START SOL RED/VIL 10 AWG GXL X9
X20
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 OIL GAG BLU/BRN 16 AWG GXL X2
X21
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
A HR MTR BLU/RED 16 AWG SXL X1
B PS IGN ORN/DGN 16 AWG SXL SP1
C GP SW WHT/BLU 16 AWG SXL X2
X22
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 FUEL PUMP WHT/VIL 16 AWG GXL X8
2 GND-15 BLACK 16 AWG GXL X17
X23
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 PS IGN ORN/DGN 16 AWG GXL X25
2 GND-14 BLACK 16 AWG GXL X17
X24
CONN
POS
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 GLOW PLG ORN/RED 8 AWG GXL X10
X25
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1
PS IGN ORN/DGN 16 AWG GXL SP1
PS IGN ORN/DGN 16 AWG GXL X23
X26
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 CLT TMP BLU/VIL 16 AWG GXL X2
X27
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 ALT EXC VIL/RED 16 AWG GXL X1
X28
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1
ALT BAT 1 RED/WHT 8 AWG GXL X19
ALT BAT 2 RED/WHT 8 AWG GXL X19
X20
X21
X18
X19
X17
X22
X23 X25
X24
X26
X27
X28
16
22
24
25
29
7
8
28
30
31
X17
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1 GND-1 BLACK 8 AWG GXL X2
2
GND-3 BLACK 16 AWG GXL X12
GND-4 BLACK 16 AWG GXL X13
3
GND-5 BLACK 16 AWG GXL X16
GND-6 BLACK 16 AWG GXL X10
4
GND-7 BLACK 16 AWG GXL X3
GND-8 BLACK 16 AWG GXL X4
5
GND-9 BLACK 16 AWG GXL X5
GND-10 BLACK 16 AWG GXL X5
6
GND-11 BLACK 16 AWG GXL X5
GND-12 BLACK 16 AWG GXL X5
7
GND-13 BLACK 16 AWG GXL X5
GND-14 BLACK 16 AWG GXL X23
8
GND-15 BLACK 16 AWG GXL X22
GND-2 BLACK 12 AWG GXL X2
9 GND-16 BLACK 16AWG GXL X15
X19
TERM
#
WIRE
DESIGNATION COLOR GAUGE TYPE TO
1
ALT BAT 1 RED/WHT 8 AWG GXL X28
ALT BAT 2 RED/WHT 8 AWG GXL X28
2
BAT-1 RED 8 AWG GXL X1
BAT-2 RED 12 AWG GXL X1
3
ST RLY PWR ORANGE 10 AWG GXL X9
GP PWR RED/GRN 8 AWG GXL X11
S/N 0160020943 thru 0160040674
including 0160020803, 0160020823 & 0160020824
excluding 0160040468 & 0160040672
