SECTION 3 - TROUBLESHOOTING

3-40

– JLG Sizzor –

3120829

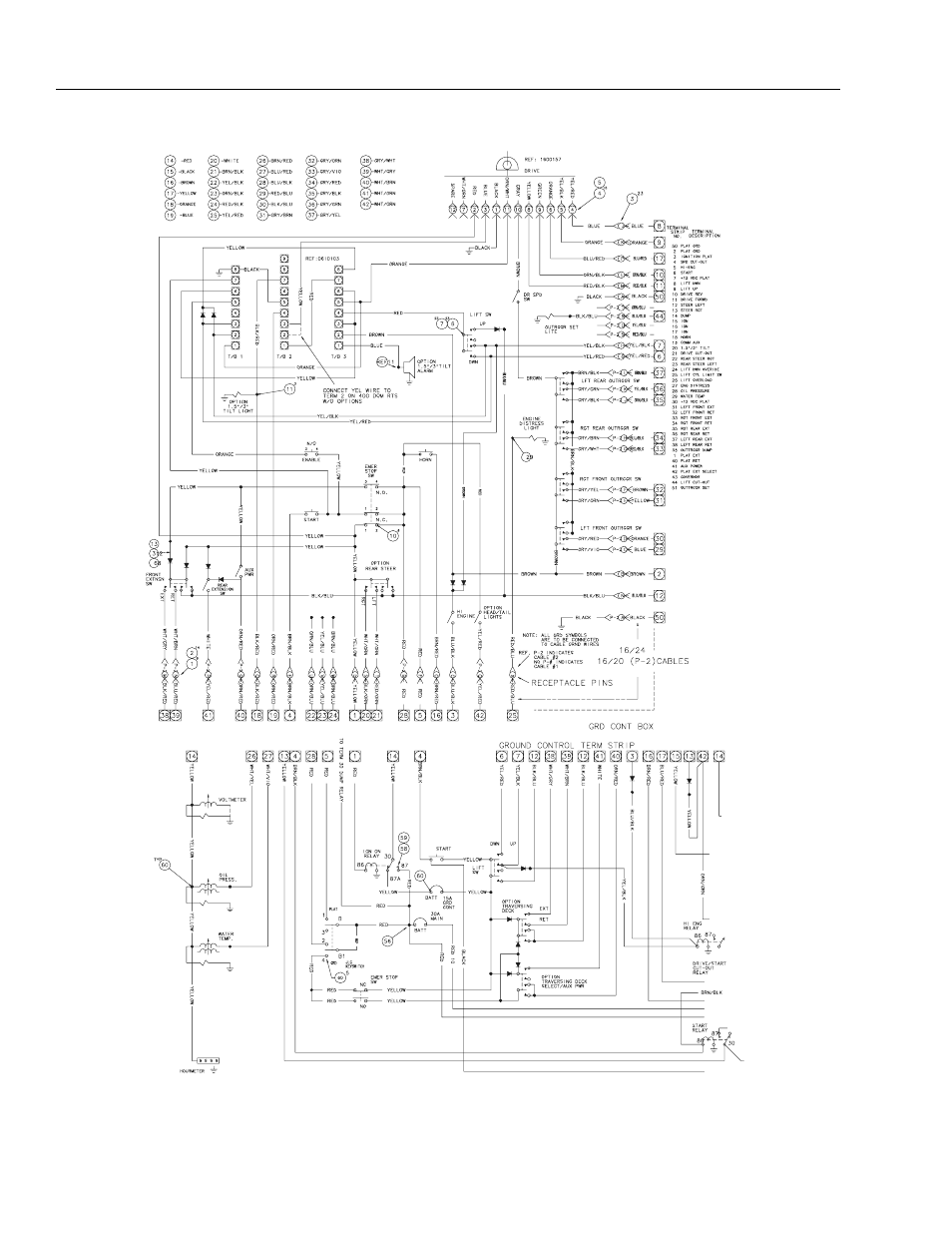

Figure 3-28. Electrical Schematic - 500 RTS Ford LSG (Sheet 1 of 2)
