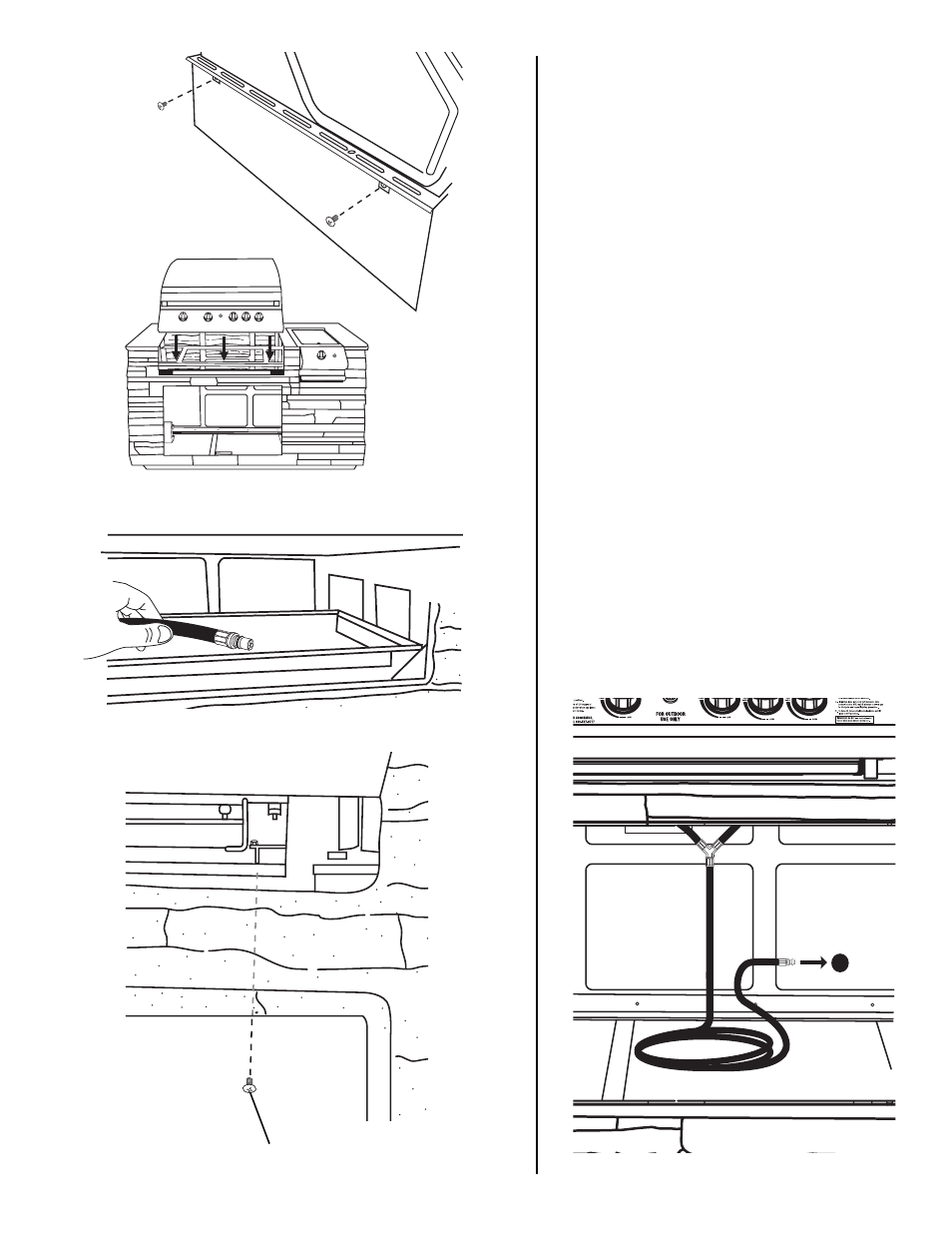

Step 10
Attach the grill body side trim to the
grill side end cap by using two
M6 x 12mm bolts. Repeat for other
end cap.
Step 11
With the help of a friend, (we
recommend 3 to 4 people to
assembly the grill body) place grill
body assembly on Grill Island. Make
sure the hose and coupler fitting
will pass through the front gap
between the front panel and grill
body support bracket. Then align
the two holes at the bottom front
grill bracket to the grill support
bracket, then tighten securely by
using two M6 x 12mm bolts.
Step 12
Route the hose through the
opening in the back panel for
connection to the quick-disconnect
coupler.
M6 x 12mm bolt
