Brinkmann 810-6830-0 User Manual
Page 25
24
Step 7

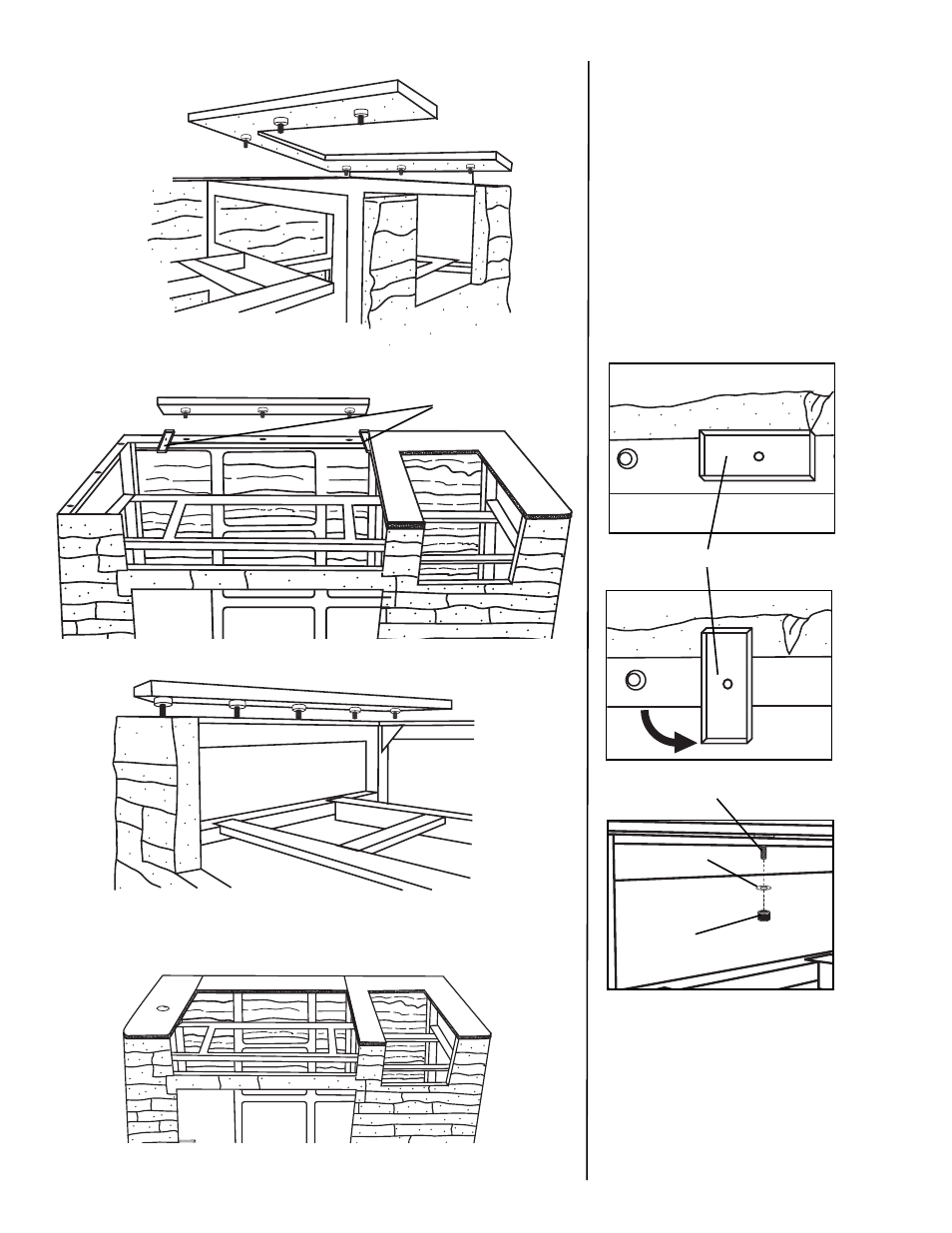

Attach the granite tops by aligning
the M8 threaded studs into the
rubber ringed holes which are
located on the top of the Grill Island
base. Secure granite top to base
using round washers and M8 nuts
applied to each threaded
stud.(Hand tighten only)
Note:
Before attaching the back
granite piece turn support
plates 90 degrees.
Note:
After granite top installation,
seams can be filled with
clear silicone caulk for a
more finished appearance.
Threaded Stud
Washer
M8 Nut
Support Plates
Support Plates
