Chapter 8 – Prestart Inspection
S3219E/S4732E – 1500834 27
2. Visually check the rail and toeboard welds for
cracks.
3. Visually check all bolts and nuts fastening the platform
and guardrails in place. They must be present and
not show any signs of looseness.
4. Inspect the entry doors to see that they swing freely
and are not deformed in any way. Make sure the
doors are secure when they are closed.
Platform Extension
Latch handles on each side of the extension deck secures
the extension deck to the main platform deck.
Caution
The extension deck is free to move when the snapper
pins are removed, the latch handles are raised and the
locks are disengaged. Personal injury may result from
accidentally extending or retracting the deck. Make
certain both latch handles are fully lowered, the snap-
per pins are in place and the locks are fully engaged
when the deck is extended in the working position
and when it is stowed. Do not attempt to extend or
retract the platform unless the aerial platform is on a
level surface.
To inspect the platform extension:
1. Inspect the snapper pins and latch handles (refer to
Figure 8.17) on each side of the platform to ensure
they release to extend the platform.

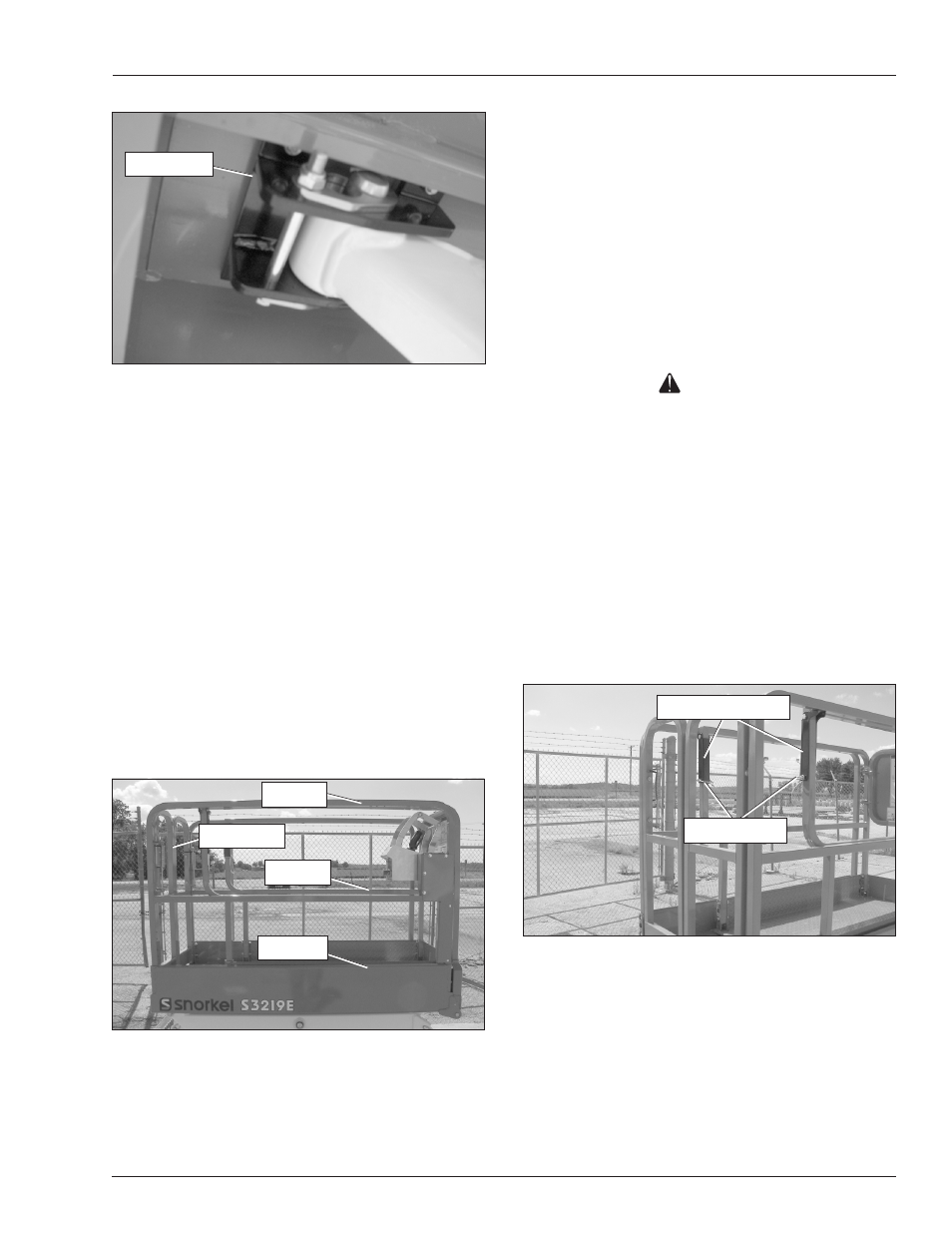

Figure 8.17 – Platform Extension
2. Release the latch from each of the snapper pins.
While facing the front of the platform, firmly grasp
each of the latch handles and raise them to unlock the
extension deck. Push the extension deck forward to
the fully extended position. Fully lower the handles to
lock the platform in position and replace the snapper
pins (refer to Figure 8.17).
3. Inspect the rollers on the platform extension. They
must be in place, in good condition, and free to move
without obstruction.
Figure 8.15 – Underneath Front of Platform
Fasteners
To inspect the fasteners:
1. Visually inspect all fasteners to see that none are
missing or loose.
2. Inspect all of the bolts, nuts, rollpins, collars, and
snap rings. They should all be present, tight, and not
damaged in any way.
Upper Control Station
Inspect the platform and upper controls only if all functions
operated properly from the lower controls.
Guardrail System
The guardrail system includes (refer to Figure 8.16):
A top rail
A mid rail
Saloon style entry doors
Toeboards around the sides of the platform.
Figure 8.16 – Upper Controls
To inspect the guardrail system:
1. Visually inspect all components of the guardrail
system. Make sure the rails and toeboards are all in
place and free of any damage or deformation.




Slide Block
Top Rail
Mid Rail
Toeboard
Entry Doors
Snapper Pins
Extension Handles
