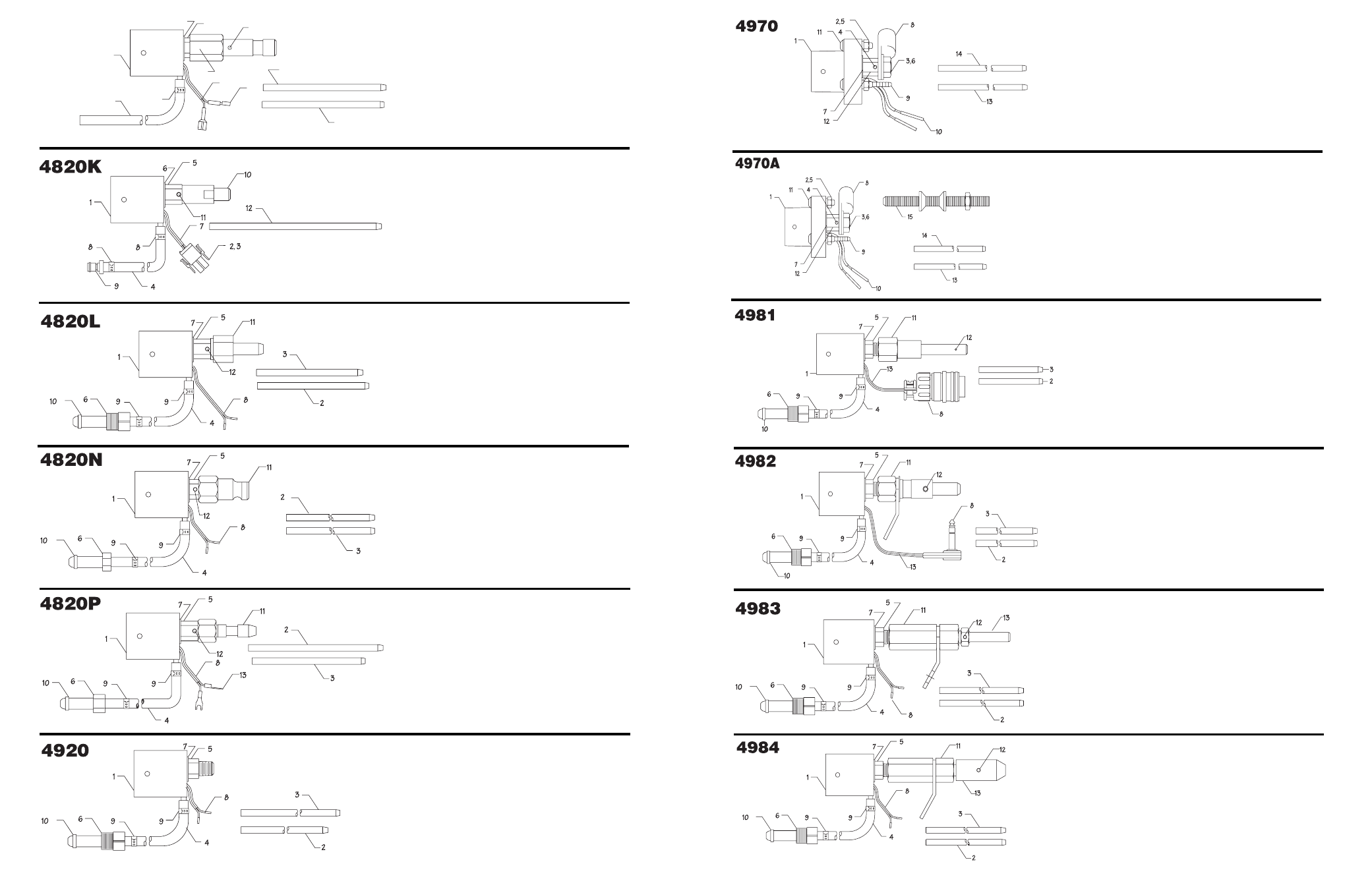

Bernard Quick Disconnect Feedder End Adapter Kits 4820G - 4995 - Manual (Page 2)

4820G
2
3
7
5
1
9 4
6
11
8
10
FOR USE ON ITEM PART NO. DESCRIPTION
Hobart 1 4893 Body, w/Gas Barb & O-Ring
Beta-Mig 2 4850 Guide Tube, Small I.D.
200-2000 3 373 Guide Tube, Large I.D.
Models 17 & 19 4 1571 Gas Hose
5 4908 Socket
Miller 6 5108 Adaptor Body
Migman 105 7 4912 Snap Ring
W/pre-cut guide 8 4942 Wire Assembly
tubes 9 1930 Oetiker Clamp
10 1346 Terminals
11 396 Set Screw
FOR USE ON ITEM PART NO. DESCRIPTION
ESAB 1 4893 Body, w/Gas Barb & O-Ring
Me-2 2 9394 Housing, Male Connector
Migmaster 180 3 9395 Pin, Connector
CENTURY 4 1571 Gas Hose
100, 130, 150, 160 5 4972 Socket
200, 225, 250 6 4912 Snap Ring
powermate225 7 4942 Wire Assembly
AIRCO 8 1930 Oetiker Clamp
Dippak 250, 300 9 9713 Plastic Gland
MIGhty 2E, 4HD, 10 4805 Adaptor Body
IIE, IVHD 11 396 Set Screw
CEMIG 169T, 200T 12 4852 Guide Tube, Small I.D.
POWCON
PDP1, powerdrive1,
power drive1E, DAV Mig
FOR USE ON ITEM PART NO. DESCRIPTION
Panasonic 1 4893 Body, w/Gas Barb & O-Ring
YW501FK 2 4958 Guide Tube, Small I.D.
3 379 Guide Tube, Large I.D.
National 4 1571 Gas Hose
most models 5 4972 Socket
6 366 Gas Nut
7 4912 Snap Ring
8 4942 Wire Assembly
9 1930 Oetiker Clamp
10 663 Hose Gland
11 7115 Adaptor Body
12 396 Set Screw
FOR USE ON ITEM PART NO. DESCRIPTION
L-TEC 1 4893 Body, w/Gas Barb & O-Ring
mig-31 2 194 Guide Tube, Small I.D.
swm-30 3 371 Guide Tube, Large I.D.
swm-31 4 1571 Gas Hose
5 4972 Socket
6 1566 Gas Nut
7 4912 Snap Ring
8 4942 Wire Assembly
9 1930 Oetiker Clamp
10 663 Hose Gland
11 4998 Adaptor Body
12 396 Set Screw
FOR USE ON ITEM PART NO. DESCRIPTION
OTC 1 4893 Body, w/Gas Barb & O-Ring
most models 2 4958 Guide Tube, Small I.D.
3 379 Guide Tube, Large I.D.
Gelco 4 1571 Gas Hose
all models 5 4972 Socket
6 366 Gas Nut
7 4912 Snap Ring
8 4942 Wire Assembly
9 1930 Oetiker Clamp
10 663 Hose Gland
11 7124 Adaptor Body
12 396 Set Screw
13 4261 Spade Terminal
FOR USE ON ITEM PART NO. DESCRIPTION
Quick Disconnect, 1 4893 Body, w/Gas Barb & O-Ring
feeder end w/guide 2 478 Guide Tube, Small I.D.
tubes (2) 3 479 Guide Tube, Large I.D.
Fits all existing 4 1571 Gas Hose
Bernard adaptors 5 4908 Socket
6 1566 Gas Nut
7 4912 Snap Ring
8 4942 Wire Assembly
9 1930 Oetiker Clamp
10 663 Hose Gland
FOR USE ON ITEM PART NO. DESCRIPTION
ESAB, most models 1 4971 Feeder Mount
2 1456 Hex Nut
W/pre-cut guide 3 4974 Hex Jam Nut
tubes 4 396 Set Screw
5 3613 Lock Washer
6 4975 Flat Washer
7 4912 Snap Ring
8 B-120 Solder Type Lug
9 4214 Gas Barb Assy. (w/4907 O-Ring)
10 4942 Wire Assembly
11 4973 Button Head Screw
12 4972 Power Socket
13 478 Guide Tube, Small I.D.
14 479 Guide Tube, Large I.D.
FOR USE ON ITEM PART NO. DESCRIPTION
Universal flange 1 4971 Feeder Mount
mount quick 2 1456 Hex Nut
disconnect 3 4974 Hex Jam Nut
4 396 Set Screw
includes universal 5 3613 Lock Washer
centering device for 6 4975 Flat Washer
most European 7 4912 Snap Ring
feeders 8 B-120 Solder Type Lug
9 4214 Gas Barb Assy. (w/4907 O-Ring)
10 4942 Wire Assembly
11 4973 Button Head Screw
12 4972 Power Socket
13 478 Guide Tube, Small I.D.
14 479 Guide Tube, Large I.D.
15 4989 Centering Kit Complete
FOR USE ON ITEM PART NO. DESCRIPTION
Lincoln LN4, LN-5, 1 4893 Body, w/Gas Barb & O-Ring
LN-6, LN-8, LN-9 2 4951 Guide Tube, Small I.D.
3 4961 Guide Tube, Large I.D.
W/pre-cut 4 1571 Gas Hose
guide tubes and plugs 5 4908 Socket
6 1566 Gas Nut
7 4912 Snap Ring
8 1694 Lead Set (Includes 4942)
9 1930 Oetiker Clamp
10 663 Hose Gland
11 1381 Adaptor Body
12 1384 Set Screw
13 4942 Wire Assembly
FOR USE ON ITEM PART NO. DESCRIPTION
Hobart, all models 1 4893 Body, w/Gas Barb & O-Ring
except 200 2 4952 Guide Tube, Small I.D.
3 4962 Guide Tube, Large I.D.
W/pre-cut guide 4 1571 Gas Hose
tubes and plug 5 4908 Socket
6 1566 Gas Nut
7 4912 Snap Ring
8 1692 Lead Set (Includes 4942)
9 1930 Oetiker Clamp
10 663 Hose Gland
11 1362 Adaptor Body
12 396 Set Screw
13 4942 Wire Assembly
FOR USE ON ITEM PART NO. DESCRIPTION
Miller, 10 & 30 Series 1 4893 Body, w/Gas Barb & O-Ring
70 & 80 Series 2 4953 Guide Tube, Small I.D.
3 4963 Guide Tube, Large I.D.
Machinery & Weldor 4 1571 Gas Hose
MHFC-H, MHFC-R1 5 4908 Socket
6 1566 Gas Nut
W/pre-cut 7 4912 Snap Ring
guide tubes 8 4942 Wire Assembly
9 1930 Oetiker Clamp
10 663 Hose Gland
11 1363 Adaptor Body
12 396 Set Screw
13 489 Adaptor Shank
FOR USE ON ITEM PART NO. DESCRIPTION
Linde, SWM-11, 11B, 1 4893 Body, w/Gas Barb & O-Ring
23, 24, 25, 26, 35, 2 4955 Guide Tube, Small I.D.
SEH-3, SEH-5, 3 4965 Guide Tube, Large I.D.
SEH-10 4 1571 Gas Hose
Digimig 5 4908 Socket
6 1566 Gas Nut
W/pre-cut 7 4912 Snap Ring
guide tubes 8 4942 Wire Assembly
9 1930 Oetiker Clamp
10 663 Hose Gland
11 1363 Adaptor Body
12 396 Set Screw
13 1170 Adaptor Shank
