13

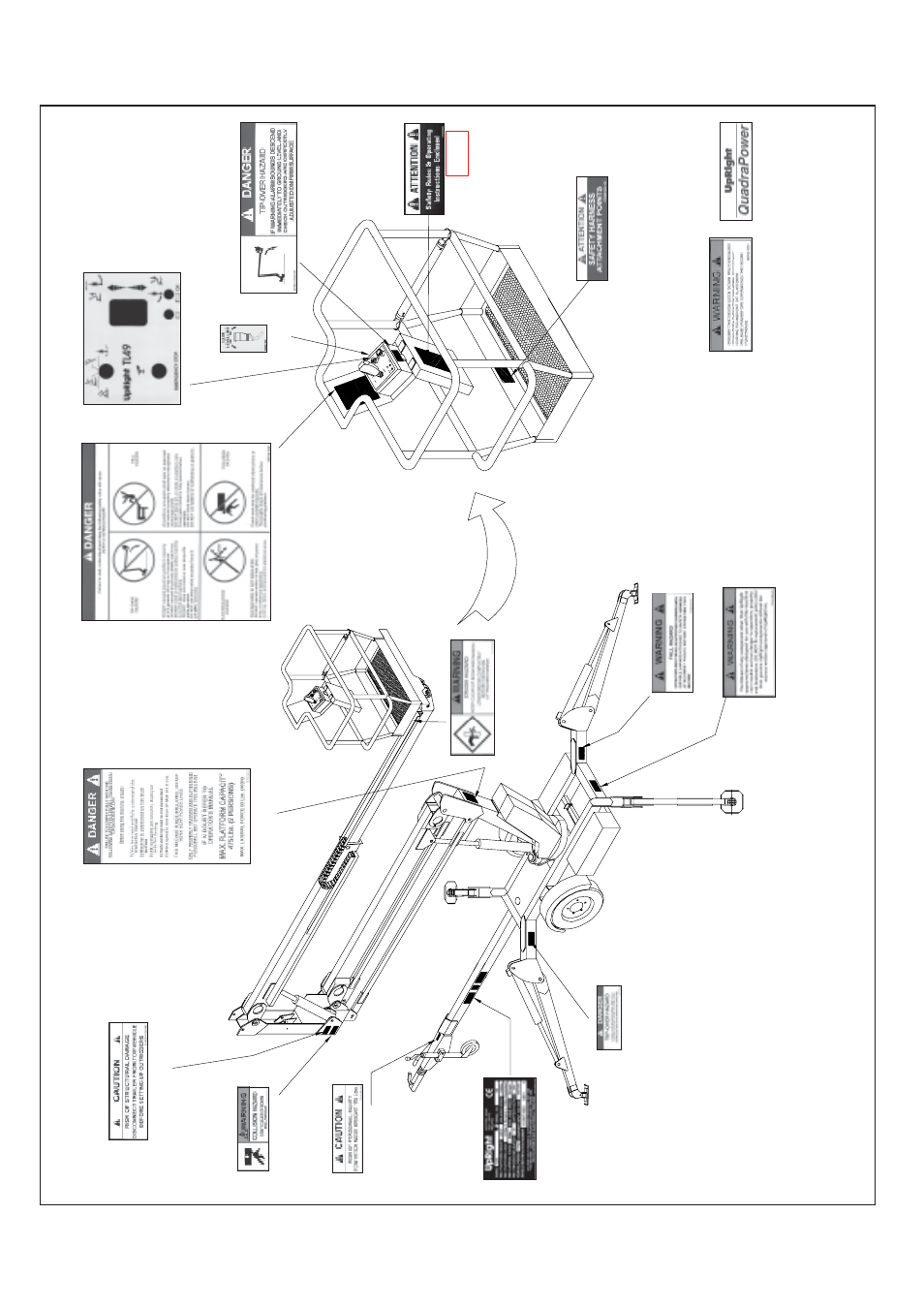

Note: Decals can be ordered by using the Part Numbers located beneath each decal.
This Operators Manual (Part Number 058651-000) is located in the Manual Holder within the Platform
057435-000
1 REQUIRED
057425-001
1 REQUIRED
057426-000
1 REQUIRED
057420-000
1 REQUIRED
057434-000
1 REQUIRED
NOT SHOWN
BOOM LOCK PIN
058992-000
1 REQUIRED
057432-000
2 REQUIRED
057422-000
2 REQUIRED
NOT SHOWN MOS90 DECAL
057387-000
1 REQUIRED
058760-000
2 REQUIRED
057417-010
4 REQUIRED
057431-001
1 REQUIRED
058802-000
1 REQUIRED
058012-000
1 REQUIRED
058538-000
1 REQUIRED
058080-000
1 REQUIRED
057424-000
3 REQUIRED
