7. By alternating from 1&2 to
3&4, carefully inch down each
pair of Outriggers until all four
Outriggers are fully deployed,
and the wheels are well clear of
the ground.
8. Now, by using the Level
indicator (Fig.4), raise opposite
Outriggers until the bubble and
indicator ring are concentric
(i.e., the bubble rests in the
centre).
9. Check that each LED on the Ground Control panel is still illuminated. This indicates that
each foot is in firm contact with the supporting surface.
SETTING UP
Emergency
Stop
Outrigger Load
Indicators
Cage Overload
Indicator

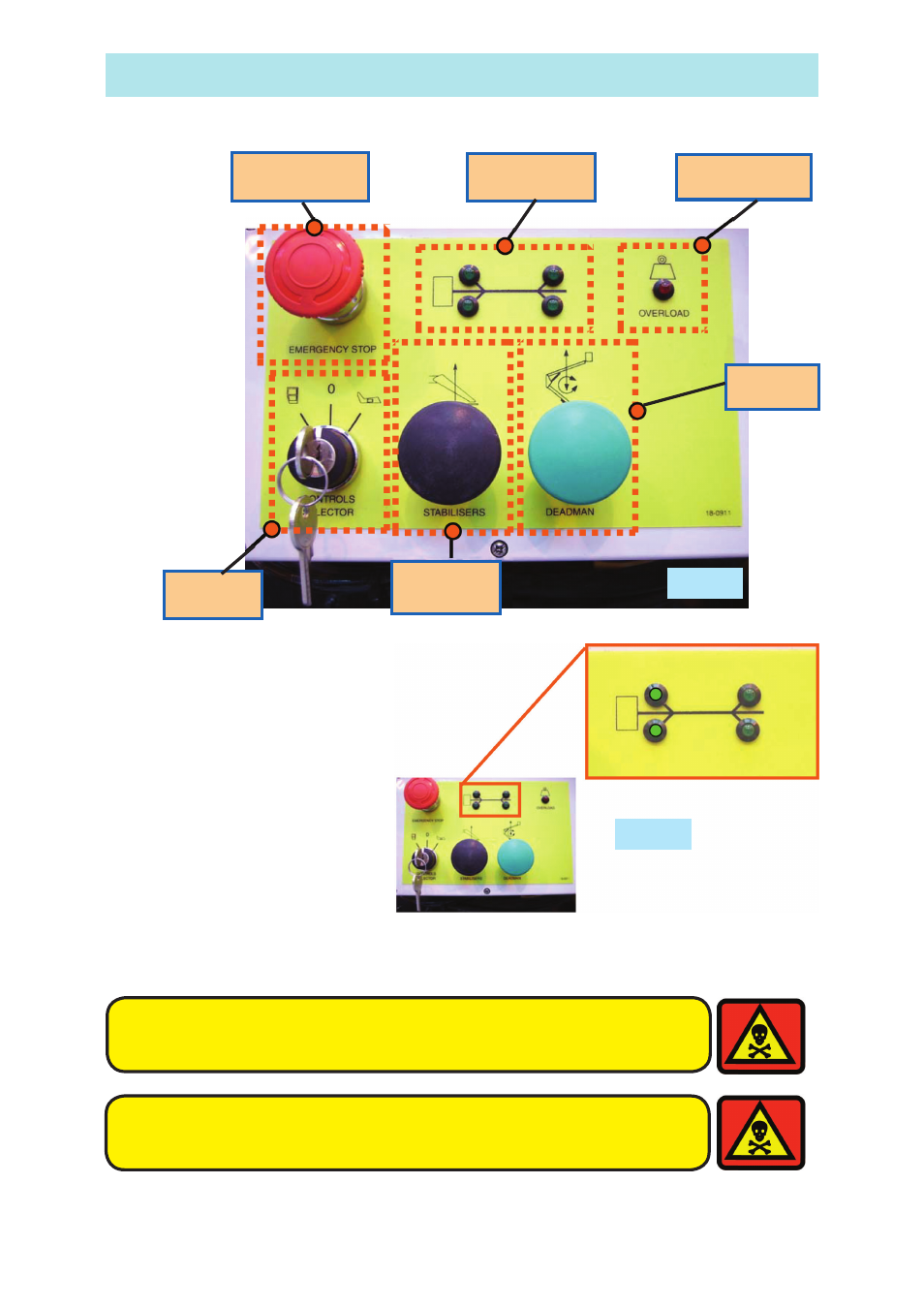

Fig. 5 Control
Selector
Motor Run
Outriggers
Motor Run
Booms
Fig. 6
The unit is designed to operate on a supporting surface of minimum
bearing strength of 50N/cm 2 .
The maximum outrigger load is 10.3kN.
