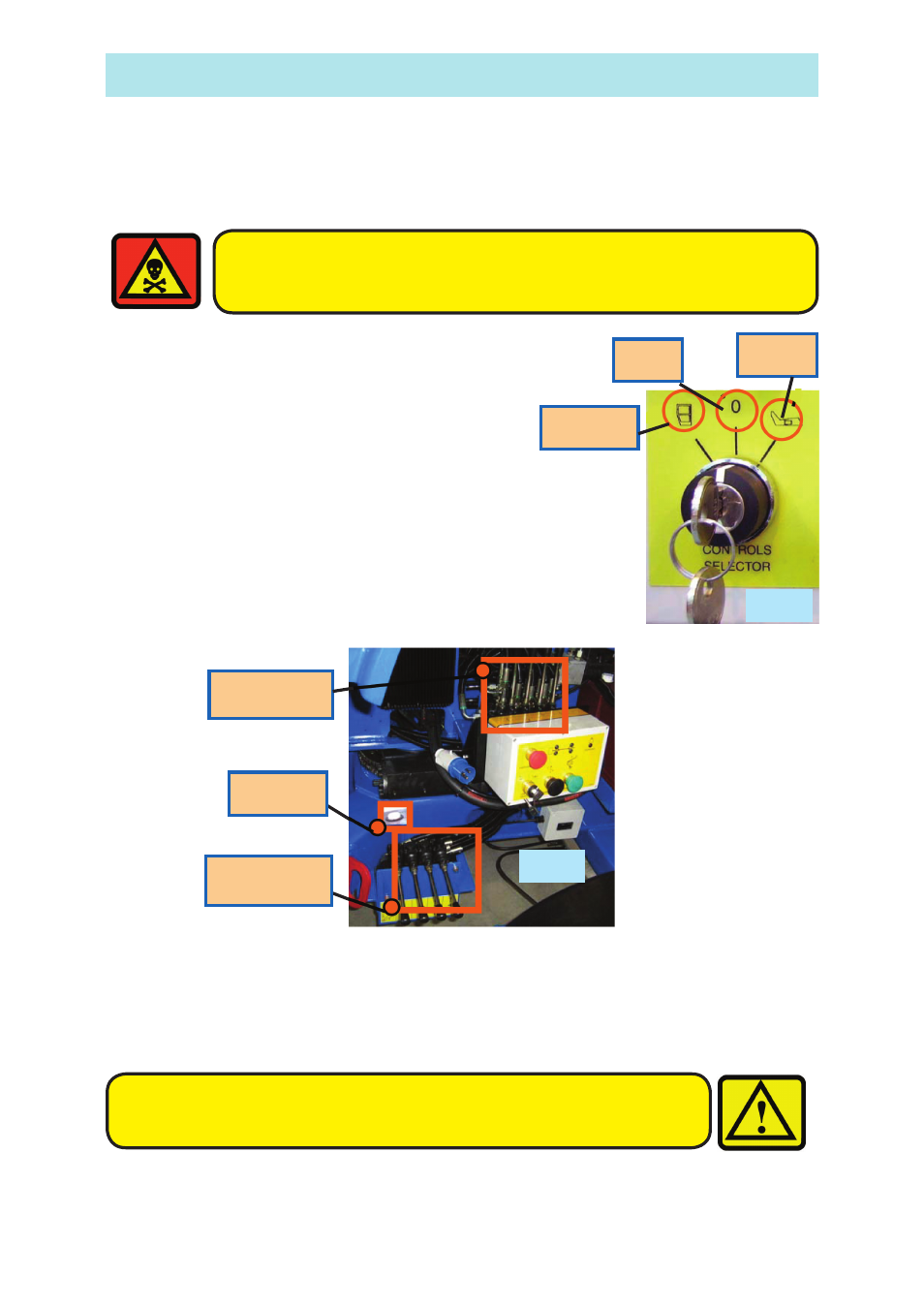

SETTING UP
Do not attempt to set up the machine on steep slopes, ramps or soft
ground.
1. Park the unit in an appropriate location at the workplace.
2. Apply the handbrake on the trailer and remove from the towing vehicle.
3. With platform key switch set to ’Ground’ (Fig 3)
lower the outriggers by keeping the ‘Outrigger
Motor Run’ button (Fig 5) pushed in, operate the
appropriate ‘Outrigger control lever’ (Fig 4), until
all four are 25mm to 50mm from the ground.
Basket
OFF
Ground
Fig. 3
Control Levers
Ground
Level
indicator
Control Levers
Outriggers
4. Lower the Outriggers two at a time starting at the tow bar end (No’s 3&4) until the jockey
wheel just clears the ground.
5. Lower Outriggers 1&2 until the green LED display indicates that they are under load.
(Fig 6)
6. Repeat this sequence for Outriggers 3&4.
Fig. 4
Take EXTREME care NOT to ground either the Basket, or the Jockey
Wheel during the next step.
