Maintenance
Never perform service on the work platform
in the Elevating Assembly area while
platform is elevated without first blocking
the Elevating Assembly.
DO NOT stand in Elevating Assembly area
while installing or removing brace.
DO NOT support or raise the front of the
platform during any maintenance operation
as this may result in damage to the tension
members.
Blocking Elevating Assembly (Figure 6)
Installation
1. Park the work platform on firm level ground.
2. Remove Control Module covers.
3. Verify both Emergency Stop Switches are ON.
4. Turn Chassis Key Switch to CHASSIS.
5. Position Chassis Lift Switch to UP and elevate
platform approximately 12 inches (305 mm).
6. Place a jackstand with a minimum rating of
4,000 lbs. (1,814 Kg) between the Lower Arm
and Chassis just behind the front axle.
7. Push Chassis Lift Switch to DOWN position
and gradually lower platform until jackstand is
secured tightly between Lower Arm and Chas-
sis.

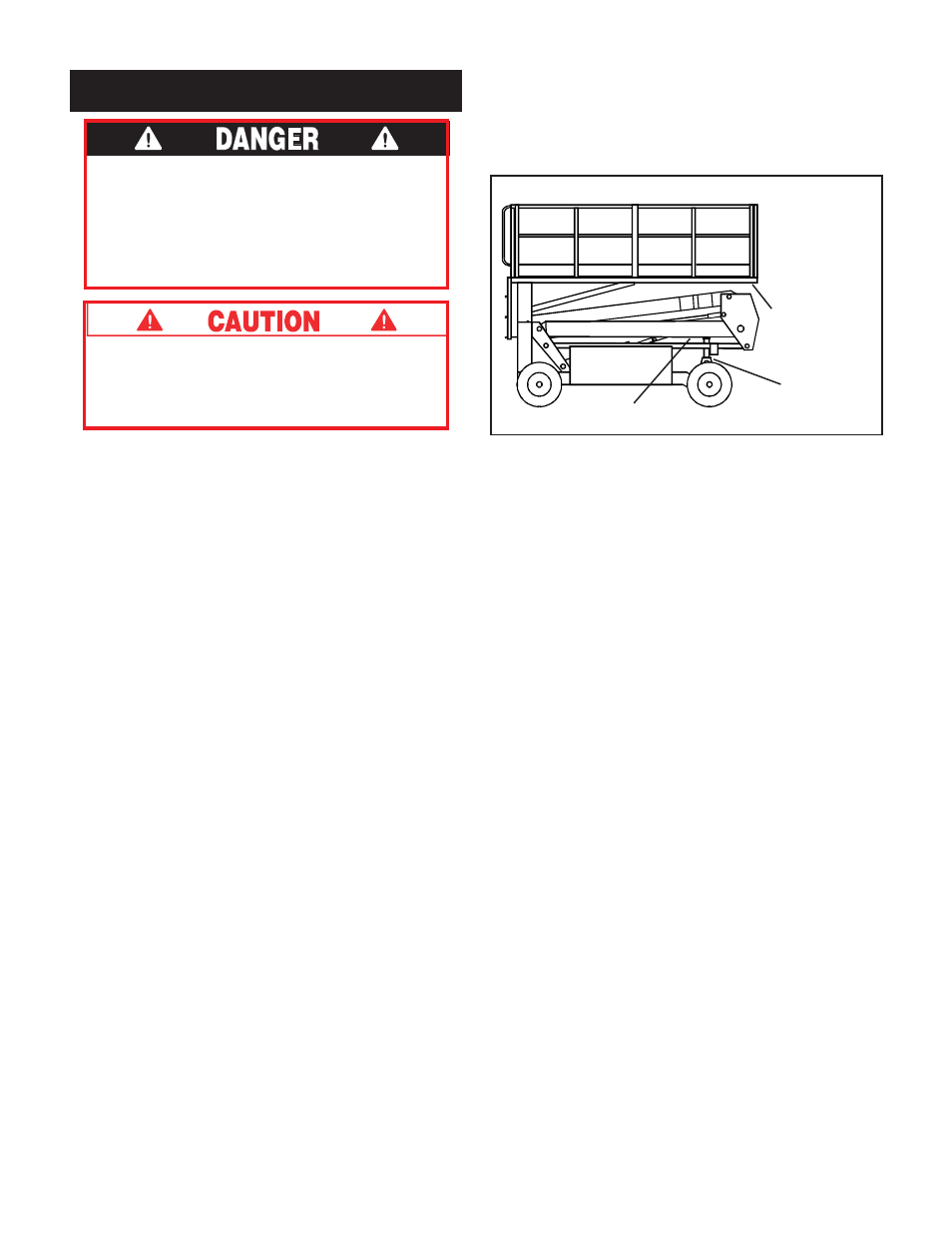

Figure 6: Blocking Elevating Assembly
Lower Arm
Jackstand
DO NOT lift or
support the
Platform from
the front
Removal
1. Push Chassis Lift Switch to UP position and
gradually raise platform until jackstand can be
removed.
2. Remove jackstand.
3. Push Chassis Lift Switch to DOWN position
and completely lower platform.
