5

Fold Down Guardrails

This procedure is only for the purpose of passing
through doorways. Guardrails must be returned
to proper position before using the work plat-
form.

Fold Down Procedure

1. Remove controller from guardrail and lay it on

the platform deck.

2. Remove retaining pin securing the top cross-

bars at the front and rear of the platform and
rotate the crossbars towards the right guardrail.

3. Pull up on right deck guardrail (or platform

guardrail if not equipped with a deck exten-
sion) and fold down.

4. Repeat step 3 for the remaining guardrails

Erection Procedure

1. Raise the left platform guardrail and push

down securing the guardrail in the vertical
position.

2. Repeat step 1 for the remaining guardrails
3. Rotate the top front crossbar into place across

the platform and pin to top left guardrail.

4. Repeat step 3 for top rear crossbar.
5. Place controller at front corner of platform.

Transporting Work Platform

By Forklift

NOTE: Forklifting is for transporting only.

See specifications for weight of work
platform and be certain that forklift is of
adequate capacity to lift platform.

Forklift from the side by lifting under chassis
modules (Figure 3).

By Crane

1. Secure straps to chassis lift points only (Figure 3).

By Truck

1. Manoeuvre the work platform into transport

position and chock wheels.

2. Secure the work platform to the transport

vehicle with chains or straps of adequate load
capacity attached to the chassis tie down lugs
only

(Figure 3).

Tie down lugs are not to be used to lift
work platform.
Over-tightening of chains or straps through
tie down lugs may result in damage to
work platform.

3. Open chassis emergency lowering valve.

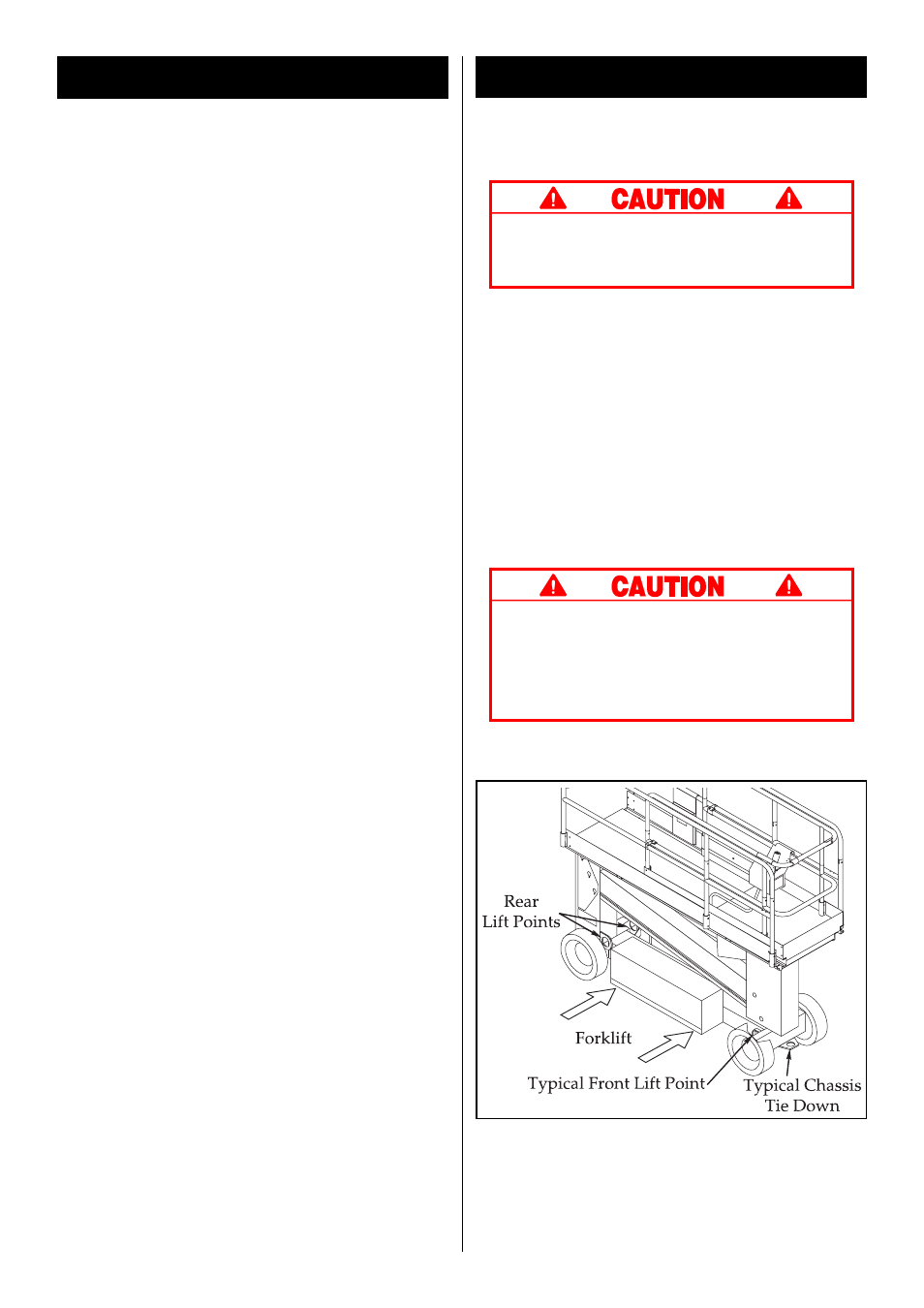

Figure 3: Transporting Work Platform
