Controls and Indicators
6 SB66JRT – 0084221
13. Ground operation switch
14. Engine throttle switch
15. Boom rotate switch
16. Platform overload light
17. Engine temperature gauge
18. Ammeter

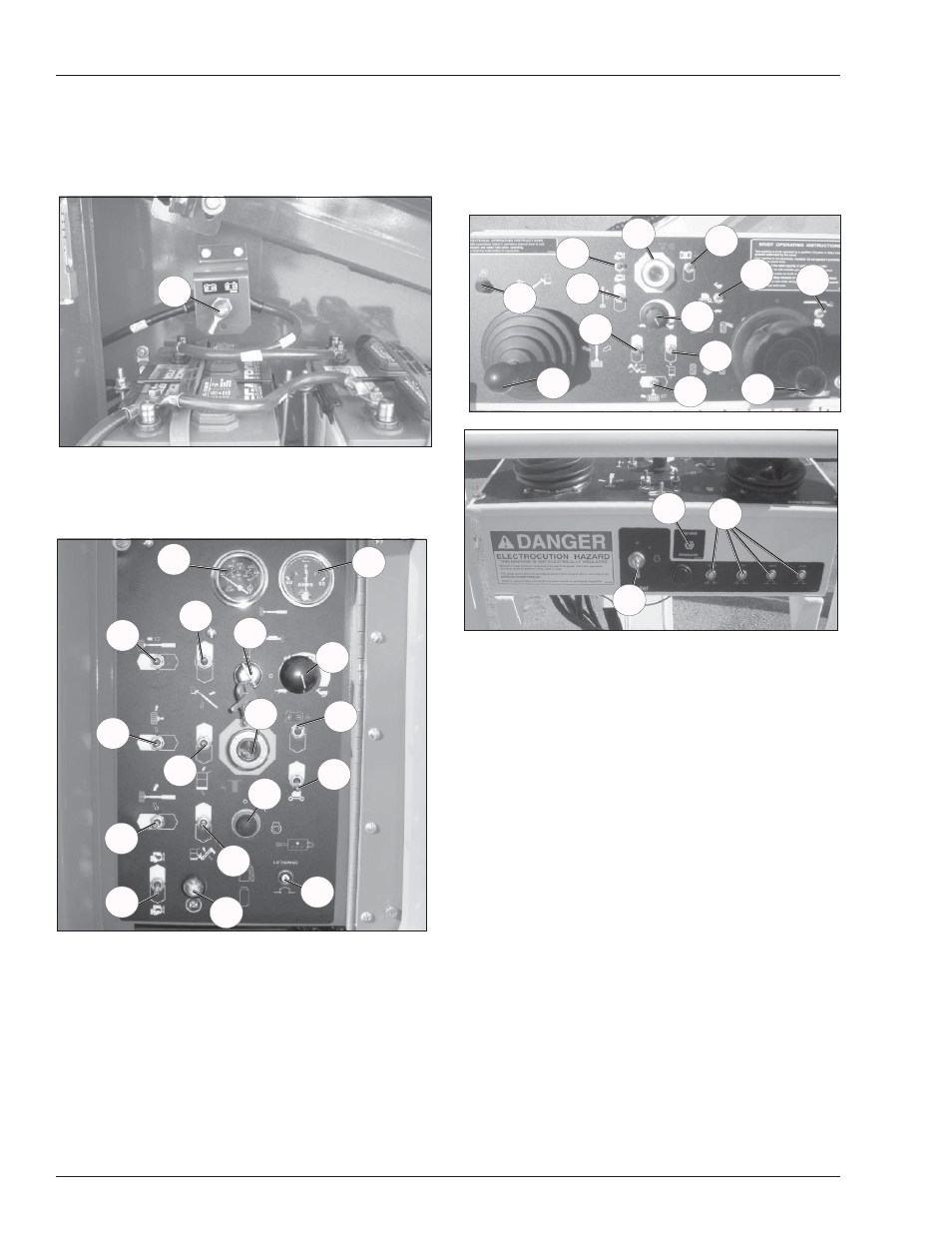

Figure 4 – Upper Controls and Indicators
19. Start switch
20. Engine/emergency power switch
21. Emergency stop button
22. Boom speed knob
23. Circuit breaker reset buttons
24. Platform level switch
25. Platform rotate switch
26. Jib articulation switch
27. Boom extend/ retract switch
28. Engine throttle switch
29. Drive range switch
30. Drive/ boom selector switch
31. Drive joystick
32. Boom joystick
33. Platform overload light
34. Machine/generator switch
Controls and Indicators
The operator shall know the location of each control and
indicator and have a thorough knowledge of the function
and operation of each before attempting to operate the
machine.
Figure 2 –Battery Disconnect Switch
1. Battery Disconnect Switch
Figure 3 – Lower Controls and Indicators
2. Start button
3. Engine/emergency power switch
4. Emergency stop button
5. Boom speed knob
6. Circuit breaker reset button
7. Platform level switch
8. Platform rotate switch
9. Jib articulation switch
10. Boom extend/ retract switch
11. Boom elevation switch
12. Control selector switch
1
2
4 3
5
6
7
8
9
11
12
13
14
15
17 18
16
10
34
19
23
28
29
30
31
32
33
20
21
24
22
25
26
27
