Specifi cations
20 SB66JRT – 0084221
Specifi cations
Aerial Platform
Working height
21.9 m (72
′)
Maximum platform height 20.1 m (66
′)
Horizontal reach 17.1 m (56
′)
Main boom
Articulation
-1° to +72°
Extension 0 to 8.33 m (0 to 328
″)
Turntable rotation 360° continuous
Turning radius, inside 4.7m (15
′ 5″)
Wheelbase 3 m (10
′)
Ground clearance 33 cm (13
″)
Maximum wheel load 5,900 kg (13,000 lbs)
Maximum ground pressure 11.3 kPa (78 psi)
Weight, GVW
Approximate
11,916 kg (26,220 lbs)
Stowed width 2.4 m (7
′ 11.5″)
Stowed length 10 m (33
′)
Stowed height 2.7 m (8
′ 9″)
Platform
Dimensions
Standard steel
76 cm x 152 cm (30
″ x 60″)
Rated work load 227 kg (500 lb)
Optional aluminum 76 cm x 244 cm (30
″ x 96″)
Rated work load 227 kg (500 lb)
Rotation 90° CW to 80° CCW
Maximum number of occupants 2 people
Optional AC generator 220 VAC
Function Speed
Turntable rotation, 360 degrees
165 to 175 seconds
Main boom
Up
64 to 75 seconds
Down 64 to 75 seconds
Extend 65 to 75 seconds
Retract 35 to 45 seconds
Jib
Up
7 to 13 seconds
Down 7 to 13 seconds
Platform rotation, 170 degrees 16 to 20 seconds
Drive
High, booms stowed
4.8 km/h (3.0 mph)
Low, booms elevated 0.96 km/h (0.6 mph)
Drive System
Standard
Four wheel drive
Optional Two wheel drive
Gradeability – theoretical 4x4 65%
Tires
Foam Filled, 12 ply
38 cm x 50 cm (15
″ x 19.5″)
Electrical System
Voltage
12 V DC negative chassis ground
Source Two - 12 V 550 CCA batteries
Fluid recommended distilled water
Hydraulic System
Maximum pressure
17,250 kPa (2,500 psi)
Reservoir capacity 99 l (26.1 US gal)
System capacity 132 l (35 US gal)
Maximum operating temperature 93°C (200°F)
Hydraulic fluid recommended
Above -12°C (10°F)
Mobil DTE-13M (ISO VG32)
Below -12°C (10°F) Mobil DTE-11M (ISO VG15)
Engine
Diesel
Deutz F4L-2011F
Fuel Tank Capacity
Diesel
151 l (40 US gal)
Ambient Air Temperature Operating Range
Celsius -18°C
to 43°C
Fahrenheit 0°F to 110°F
Maximum Wind Speed
Gust or steady
45 km/h (28 mph)
Vibration less than 2.5 m/sec 2
Sound Threshold
below 100 dB(A)

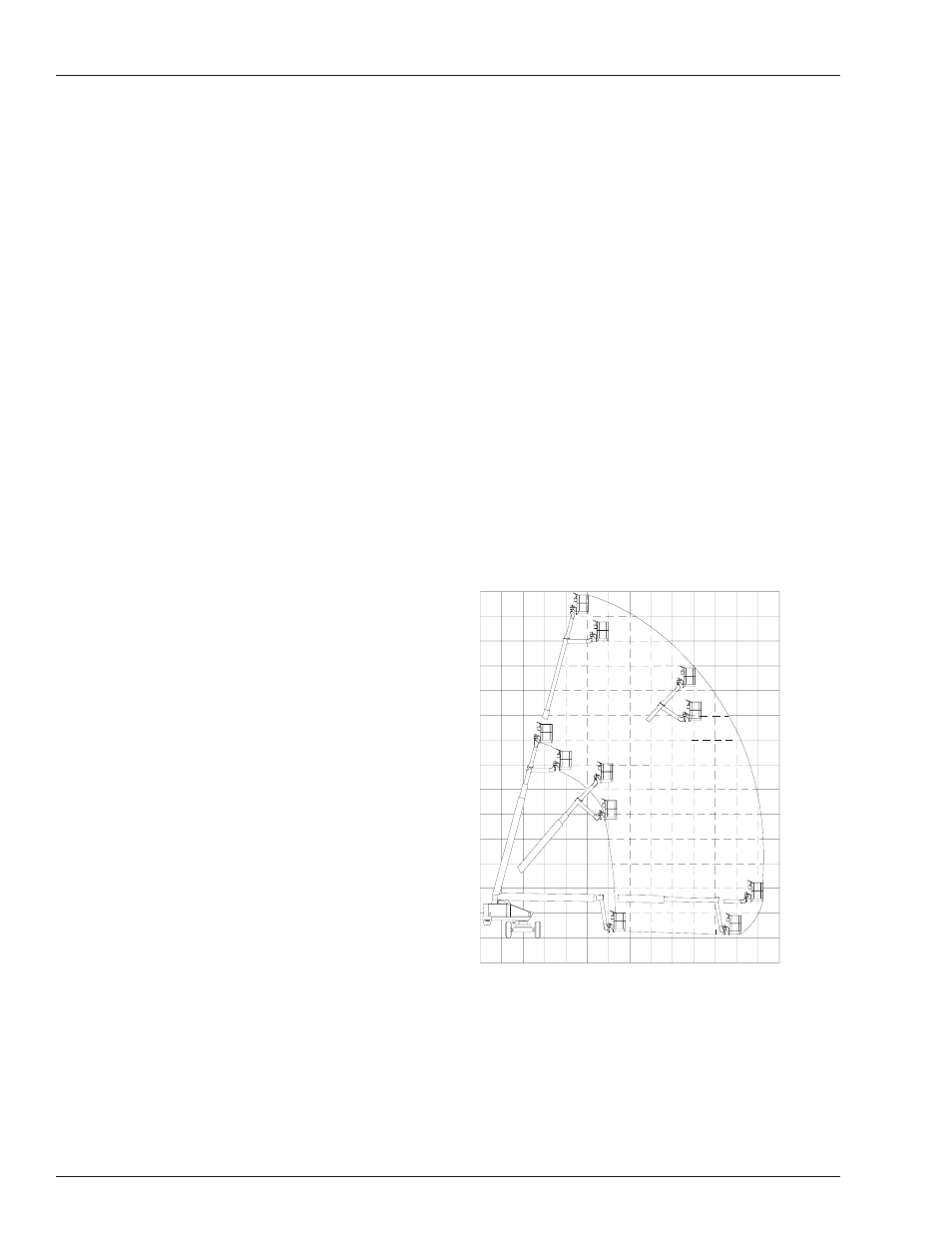

Working Envelope
12.2
(40)
9.1
(30)
3.0
(10)
6.1
(20)
15.2
(50)
18.3
(60)
Meters
(Feet)
3.0
(10)
15.2
(50)
6.1
(20)
9.1
(30)
12.2
(40)
18.3
(60)
21.3
(70)
0
0
