Chapter 5 – Gauges and Displays
18
SB47JRT – 0075522
Fluid Level and Temperature Gauge
A gauge on the right end of the reservoir displays the
level and temperature of the hydraulic fluid (refer to Fig-
ure 5.6).

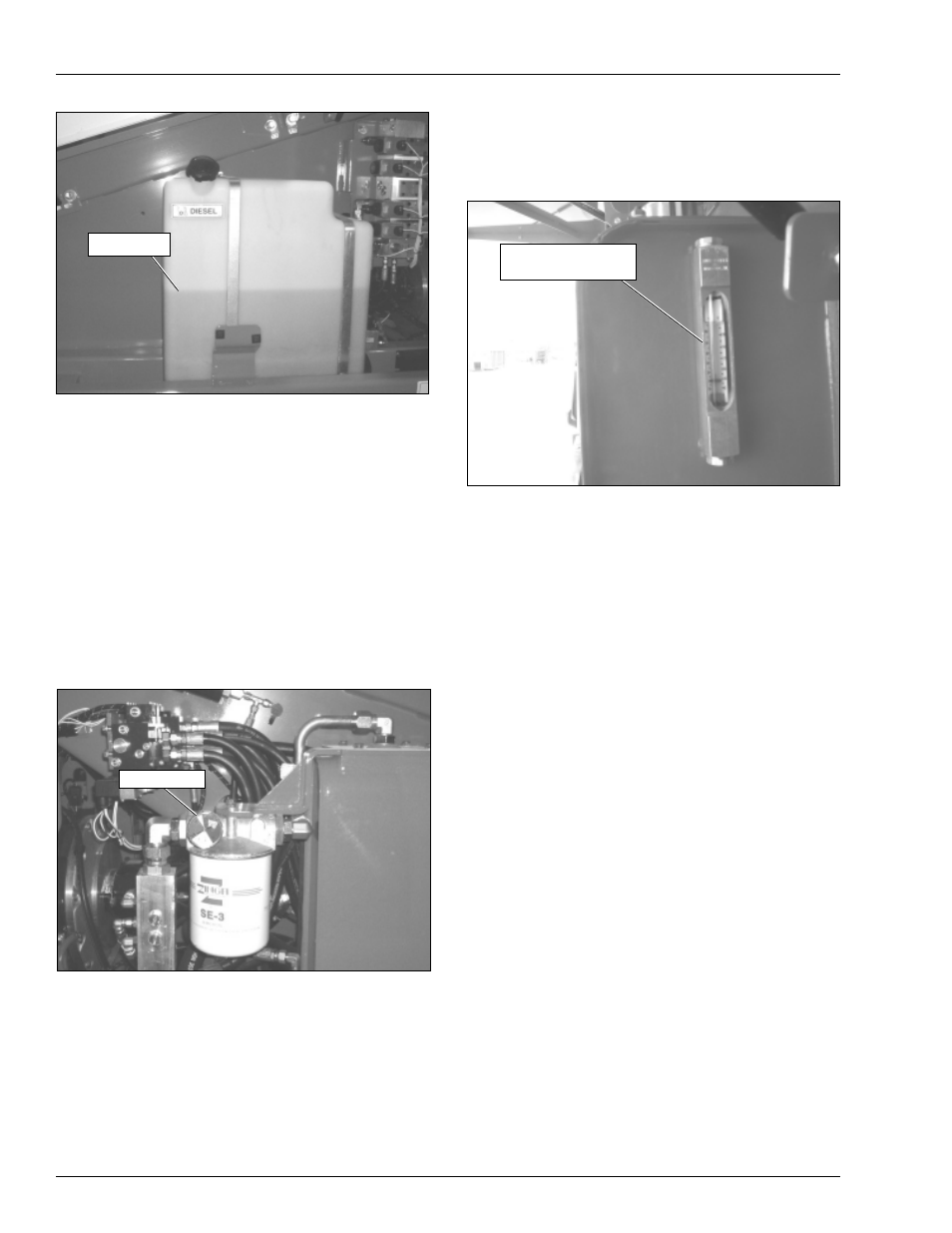

Figure 5.6 – Hydraulic Fluid Gauge
If the temperature rises above 93°C (200°F) stop machine
operation and let the fluid cool before resuming opera-
tion.
Figure 5.4 – Fuel Tank
Engine Oil
The engine oil level is measured with a dipstick. The dip-
stick is the only way to accurately determine the engine
oil level. The engine oil level should always be between
the add and full marks on the dipstick.
Hydraulic Fluid Filter Gauge
The fluid filter gauge (refer to Figure 5.5) is located on the
return line filter on the left side of the reservoir. The reser-
voir is behind the door on the left side of the turntable.
During high pump flow situations, the gauge indicates
the condition of the filter. When the needle on the gauge
is in the red zone, it is time to change the filter.
Figure 5.5 – Hydraulic Fluid Filter Gauge
Fuel Level
Filter Gauge
Fluid Level and
Temperature Gauge
