2. Operation & Specifications
2.2 G
ENERAL
D
ESCRIPTION
The MB20N/26 are self propelled, fast acting aerial work platforms, designed to raise
two operators with hand tools to a platform floor height of 6.00m and 7.76m
respectively. The accessible height is approximately 2.00m above these figures.
The unit offers the ability to reach over obstacles but
must be used on firm and level
ground at all times.

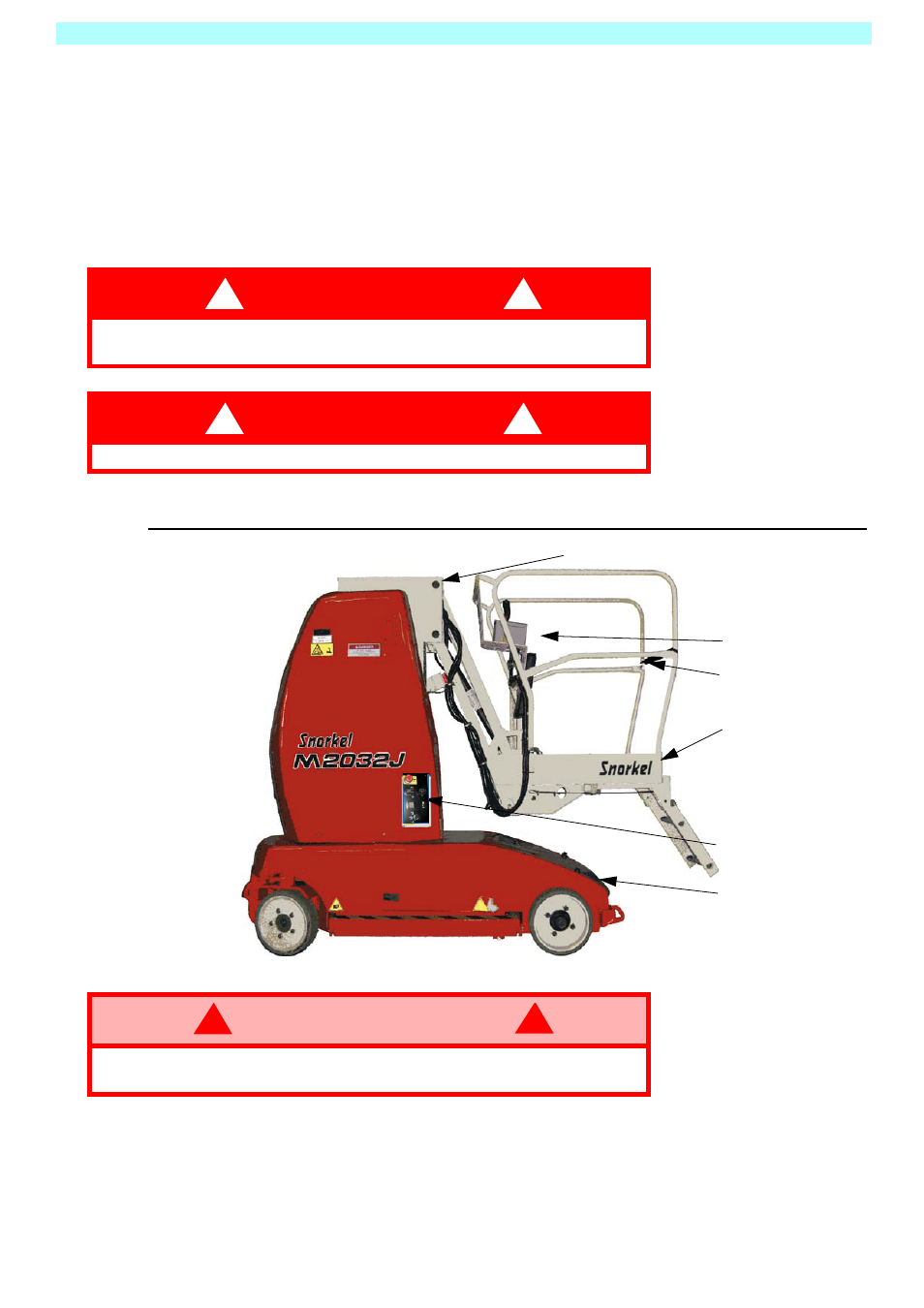

Figure 3: Work Platform
D A N G E R
!
!
DO NOT use the lifting mechanism to raise or lower goods or persons
except within the cage and subject to the specified weight limitations.
D A N G E R
!
!
DO NOT enter the platform from any structure, rack or other platform.
W A R N I N G
!
!
DO NOT use the work platform without safety drop-bar in place and
with the safety harness fitted.
Platform
Platform Controller
Elevating Assembly
Chassis Controls
Safety Drop-bar
Chassis
