7

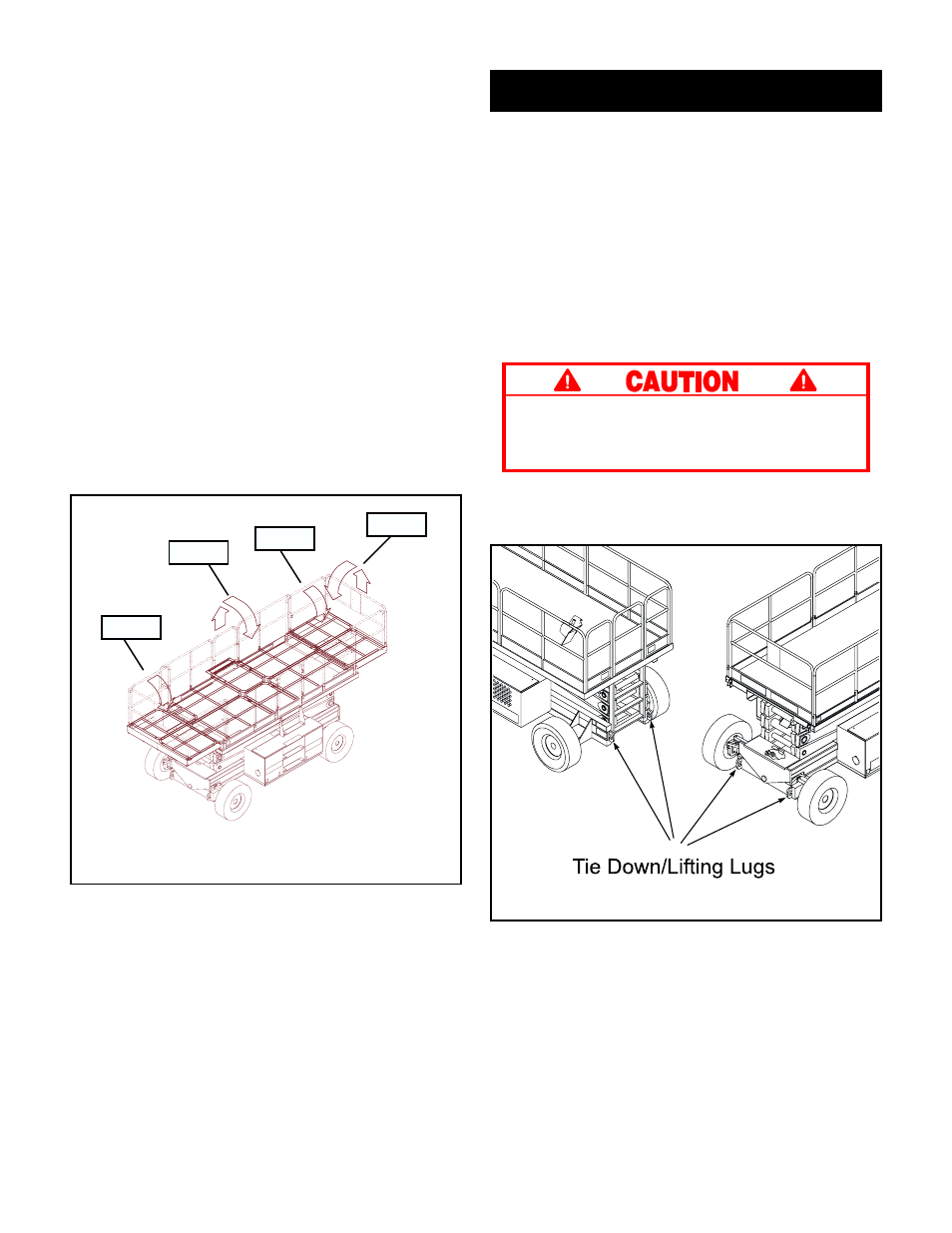

Figure 8: Transporting Work Platform
Transporting Work Platform
By Crane
1. Secure straps to chassis tie down/lifting lugs
only (Figure 8).
By Truck
1. Maneuver the work platform into transport
position and chock wheels.
2. Secure the work platform to the transport
vehicle with chains or straps of adequate load
capacity attached to the chassis tie down/lifting
lugs (Figure 8).
Overtightening of chains or straps through
tie down lugs may result in damage to
work platform.
Double Deck Erection Procedure
IMPORTANT: After guardrails have been
completely assembled, torque all hardware to
values specified in torque chart on page 10.
1. Raise front guardrail making sure it is pushed
down to secure the guardrail in the vertical
position. Repeat for rear guardrail.
2. Raise guardrails making sure each is pushed
down to secure the guardrail in the vertical
position. Align holes and install hardware.
3. Raise one of the four slide out deck side guard-
rail assemblies. Align holes and install
hardware. Repeat this procedure for the other
three slide out deck side guardrails.
4. Hang controller on front guardrail.
5. Before operating work platform, check that all
fasteners are in place and properly torqued.
Figure 7: Fold Down Guardrails (Double Deck)
step 2
step 5
step 3
step 6
Note: Illustration above is shown with decks
extended for clarity. Perform this procedure
with guardrails retracted.
