Introduction
4 AB46E – 0260229
Introduction
This manual covers the AB46E Aerial Work Platform.
This manual must be stored on the machine at all
times.
Read, understand and follow all safety rules and operating
instructions before attempting to operate the machine.
When contacting UpRight for service or parts information,
be sure to include the MODEL and SERIAL NUMBERS
from the equipment nameplate. Should the nameplate be
missing, the SERIAL NUMBER is also stamped on top
of the chassis at the front of the machine.
Battery Disconnect
Switch
Operator
Manual
Front
Platform
Foot Switch
Rear
Lower
Controls
Main Boom
Tip Boom
Jib
Right Side
Left Side
Tie-Down/Lifting
Lugs
Riser
Boom
Front
Rear
Upper Controls
Lanyard
Anchors
Platform
Power to Platform
Outlet
Riser
Battery Tray
(Both Sides)
Chassis
Tie-Down/Lifting Lugs
Front Axle
Drive Control Compartment
Hydraulic Pump • Drive Motors
Battery Charger • Level Sensor
Power to Platform Inlet
Tie-Down Lugs

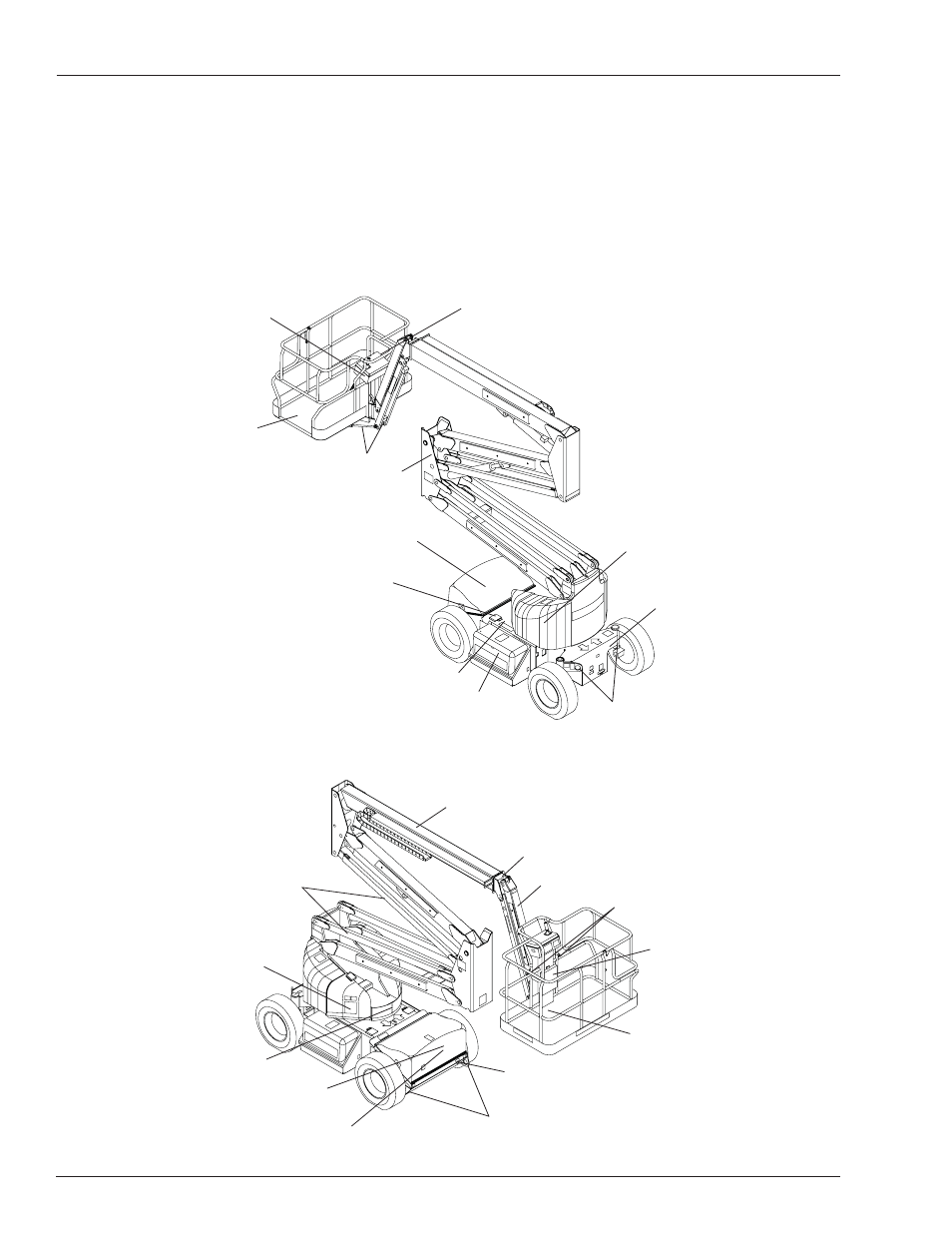

Component Identifi cation
Nameplate Location
Battery
Charger Plug
Hydraulic Fluid Filter
Hydraulic
Reservoir
