Specifications
A46JRT – 0260228 23
Specifications
Aerial Platform
Working height 16.3 m (53′ 6″)
Maximum platform height 14.3 m (46′ 10″)
Up and over height 7.8 m (25′ 8″)
Maximum horizontal reach 7.4 m (24′ 6″)
Main boom
Articulation 0° to +72°
Extension 2.0 m (80″)
Jib
Articulation -70° to +70°
Extension 1.5 m (5′)
Tail swing 0
Turntable rotation 360° non-continuous
Turning radius
Inside 0.8 m (32″)
Outside 3.1 m (10′ 5″)
Wheelbase 2.5 m (8′ 6″)
Ground clearance 33 cm (13″)
Maximum wheel load 4,470 kg (9,850 lb)
Maximum ground pressure 8.8 kg/cm² (125 psi)
Weight, EVW
Approximate 6,622 kg (14,600 lb)
Width 2.1 m (6′ 10″)
Stowed length 5.6 m (18′ 8″)
Stowed height 2.1 m (7′ 2″)
Platform
Dimensions
Standard steel 99 cm x 183 cm (39″ x 72″)
Rated work load 227 kg (500 lb)
Optional Aluminum 76 cm x 244 cm (30″ x 96″)
Rated work load 227 kg (500 lb)
Optional Aluminum 76 cm x 153 cm (30″ x 60″)
Rated work load 250 kg (550 lb)
Toeboard height 15.2 cm (6″)
Rotation 80° CW to 80° CCW
Maximum number of occupants 2 people
Optional AC generator 220 V, 2,000 W
Function Speed
Turntable rotation 65 to 85 seconds
Riser
Up 35 to 40 seconds
Down 20 to 25 seconds
Main boom
Up 25 to 30 seconds
Down 20 to 25 seconds
Extend 20 to 25 seconds
Retract 22 to 27 seconds
Platform rotation 16 to 20 seconds
Jib
Up 20 to 25 seconds
Down 30 to 35 seconds
Drive
High, booms stowed 7.2 km/h (4.5 mph)
Low, booms raised/extended 1.2 km/h (0.8 mph)
Drive System
Standard Four wheel drive
Gradeability – theoretical 45%
Tires
Bar lug 355/55D625NHS, 14 ply
Electrical System
Voltage 12 V DC negative chassis ground
Source One - 12 V 600 CCA battery
Fluid recommended distilled water
Hydraulic System
Drive circuit max. pressure 34,473 kPa (5,000 psi)
Boom circuit max. pressure 18,960 kPa (2,750 psi)
Reservoir capacity 94 l (25 US gal)
System capacity 162 l (43 US gal)
Maximum operating temperature 93°C (200°F)
Hydraulic fluid recommended
Above -12°C (10°F) Mobil DTE-13M (ISO VG32)
Below -12°C (10°F) Mobil DTE-11M (ISO VG15)
Engine
Diesel Kubota V1505-T
Fuel Tank Capacity
Diesel 94 l (25 US gal)
Ambient Air Temperature Operating Range
Celsius -18°C to 43°C
Fahrenheit 0°F to 110°F
Maximum Wind Speed
Gust or steady 45 km/h (28 mph)
12.5 m/s – Beaufort scale 6
Vibration less than 2.5 m/sec 2
0.3 m/sec 2 (measured)
Sound Power Level below 107 dB(A)
Sound Pressure Level
At work station below 100 dB(A)

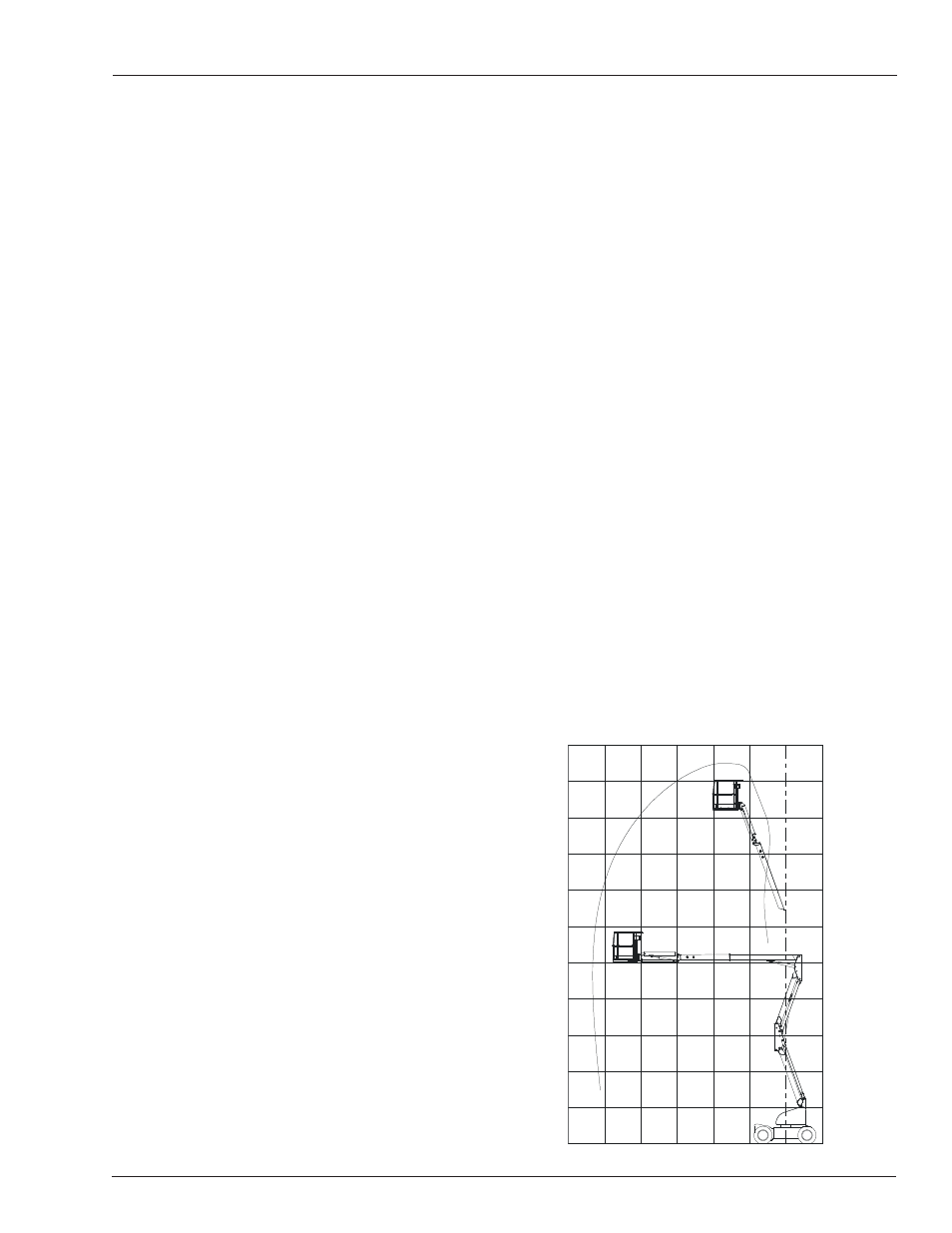

Working Envelope
4.5
(15)
6.1
(20)
9.1
(30)
7.6
(25)
3.0
(10)
1.5
(5)
Meters
(Feet)
3.0
(10)
13.7
(45)
6.1
(20)
9.1
(30)
12.2
(40)
15.2
(50)
16.7
(55)
0
1.5
(5)
4.5
(15)
7.6
(25)
10.6
(35)
