sPOD 1997-2002 Instructions Center Bracket User Manual

Page 5

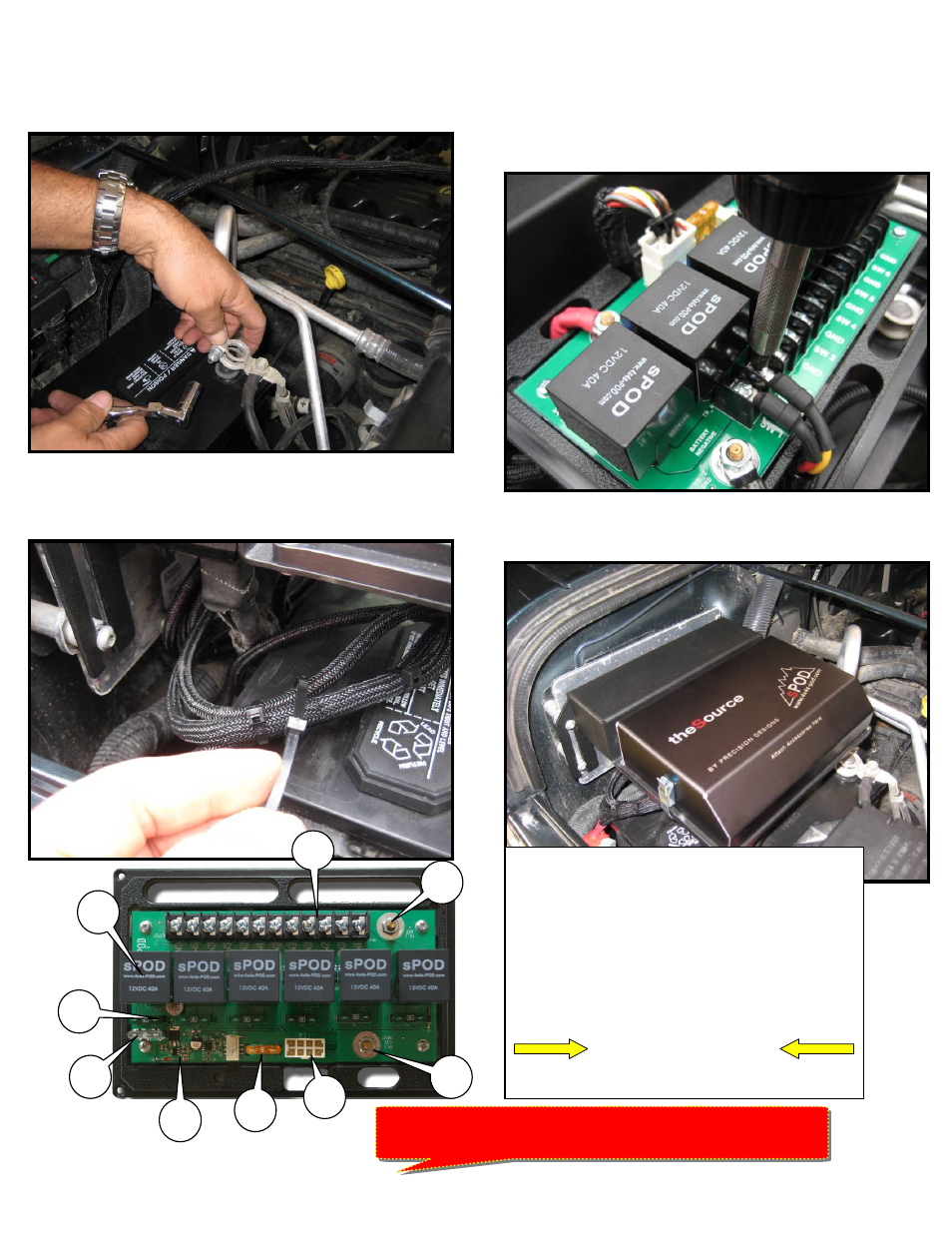

After installation

!!!Must start engine to activate system!!!

18) Connect positive, then negative terminals to battery
(photo 18).

Photo 18

19) Be sure all cables are clear and secured with zip ties
(photo 19).

Photo 19

20) Attach accessories as needed. If your accessory came
with a different fuse rating than the one in the S-Pod, change
the fuse in the power source to the proper amperage (not to
exceed 30 amps!) (photo 20).

Photo 20

21) Install cover. Re-check all connections (photo 21).

Photo 21

1. Attach your accessories here.
SWx Is the

Positive

and GND is the negative terminals.

2. Negative battery terminal.
3. Positive battery terminal.
4. Switch panel harness input.
5. Switch panel fuse.
6. Low voltage detection circuit.
7. Low voltage detection circuit fuse. Remove this fuse to
disable LVCO

•

If the LVCO detects a low voltage (10.6VDC) and
shuts the sPOD down, turn off all switches on sPOD
and start the vehicle to enable the sPOD again.

8. Accessory fuses. Any fuse can go here up to 30 AMPs. (6 pl.)
9. Relays that are removable.

Always keep your engine running

whenever possible when powering

electrical accessories
