POD Installation Instructions
2012 - 2015 Jeep JK Wrangler
www.4x4s-POD.com
3
10 mm socket
12 mm socket
Auto Reset
Circuit Breaker
Just loosen this one
Remove this
8mm screw
After installation
!!!Must start engine to activate system!!!

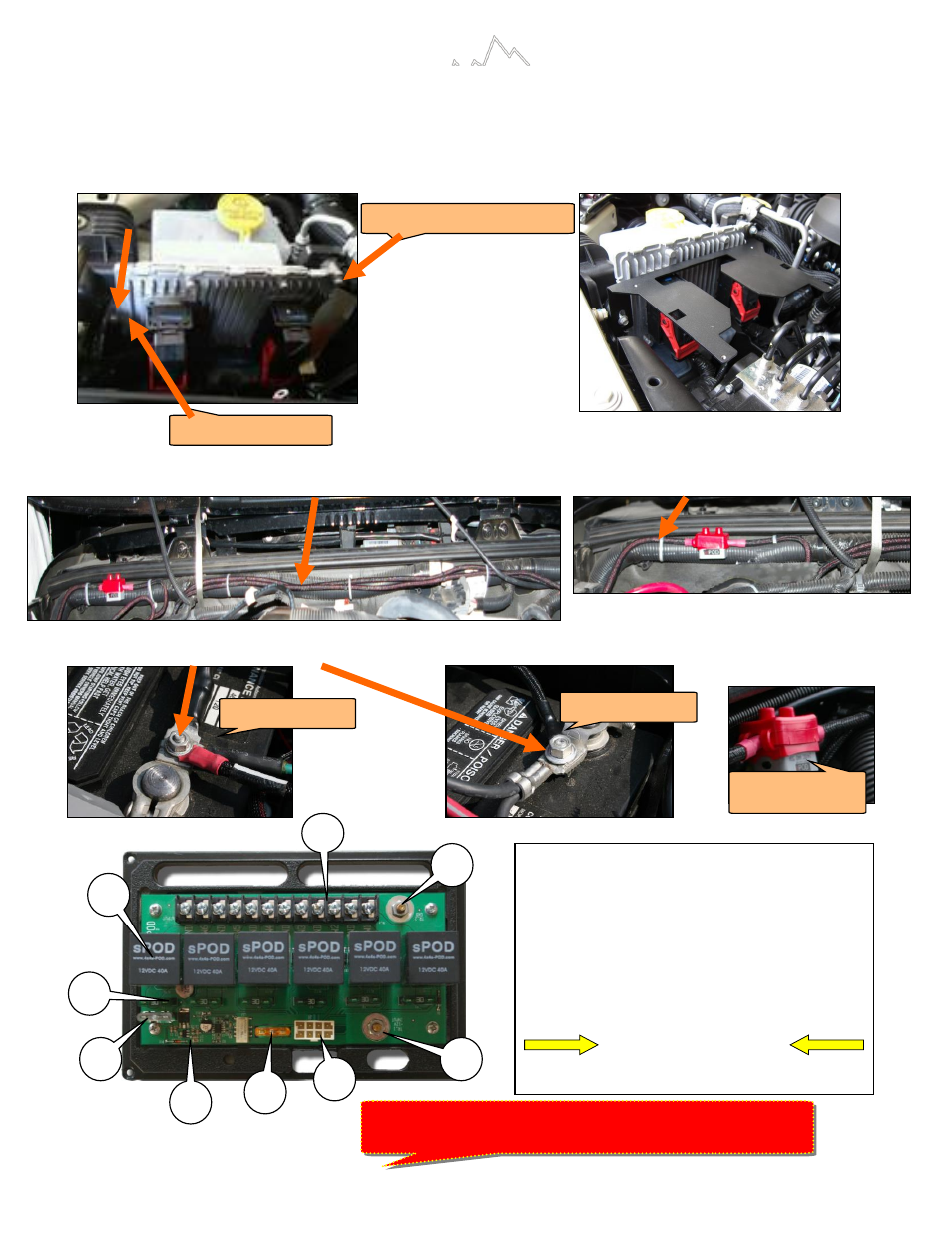

Snugly route power leads along firewall over to battery using supplied cable ties to secure..
Connect
Positive
& Ground wire to battery terminals. Use supplied cable ties to secure all cables.
1. Attach your accessories here.
SWx Is the
Positive
and GND is the negative terminals.
2. Negative battery terminal.
3. Positive battery terminal.
4. Switch panel harness input.
5. Switch panel fuse.
6. Low voltage detection circuit.
7. Low voltage detection circuit fuse. Remove this fuse to
disable LVCO
If the LVCO detects a low voltage (10.6VDC) and
shuts the sPOD down, turn off all switches on sPOD
and start the vehicle to enable the sPOD again.
8. Accessory fuses. Any fuse can go here up to 30 AMPs. (6 pl.)
9. Relays that are removable.
Always keep your engine running
whenever possible when powering
electrical accessories
