7

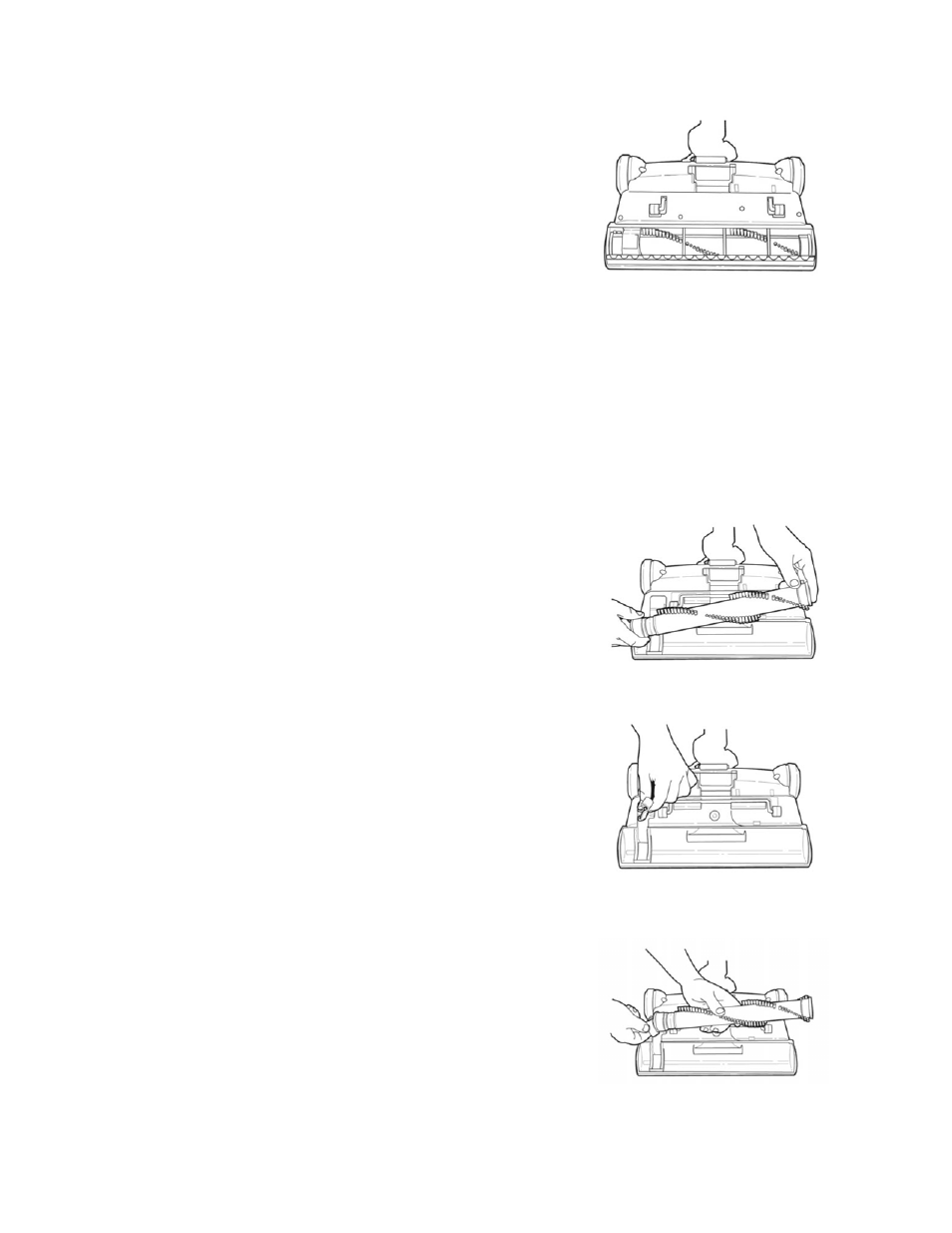

7. Replace the brush cover by inserting the tabs on the front
of the cover into the appropriate slots in the Powerbrush
base (as shown in Figure 6) and press down on the front
clips until they snap-lock into place. Then replace the 4
screws.
POWERBRUSH MAINTENANCE
How to Change Poly-V Belt.
WARNING: Always switch off the Powerbrush and disconnect plug from wall electrical
outlet and disconnect the hose before servicing the Powerbrush.
1. Remove the brush cover as described in “Brush Roller
Cleaning” steps 1 and 2.
2. Insert a string around the brush roller close to the
poly-v belt. Pull both ends of the string upwards so that
the brush roller disengages from the base. Similarly,
disengage the other end. (as shown in Figure 7)
3. Remove and clean the bearing shaft from the brush roller
ends.
4. Remove the old belt. (You may also cut the old belt with
scissors to quickly remove it).
5. Slip the new Poly-V belt over the gear on the motor shaft.
(as shown in Figure 8).
6. Now slip the belt onto the brush gear of the brush roller.
(as shown in Figure 9).
7. Slide the bearing housing in the corresponding slots on
the base. Make sure both are completely pushed into
place.
8. Replace the Brush cover as described in item 7 under
Brush Roller Cleaning.
Figure 6.
Figure 7.
Figure 8.
Figure 8.
