Figure 9-17 accumulator assembly, Accumulator assembly -38, See figure 9-17 for details) – Lull 1044C-54 Series II Parts Manual User Manual

Page 356: Or, (see figure 9-17 for details)

background image

1044C-54 Series II

31200069

9-38

HYDRAULIC COMPONENTS

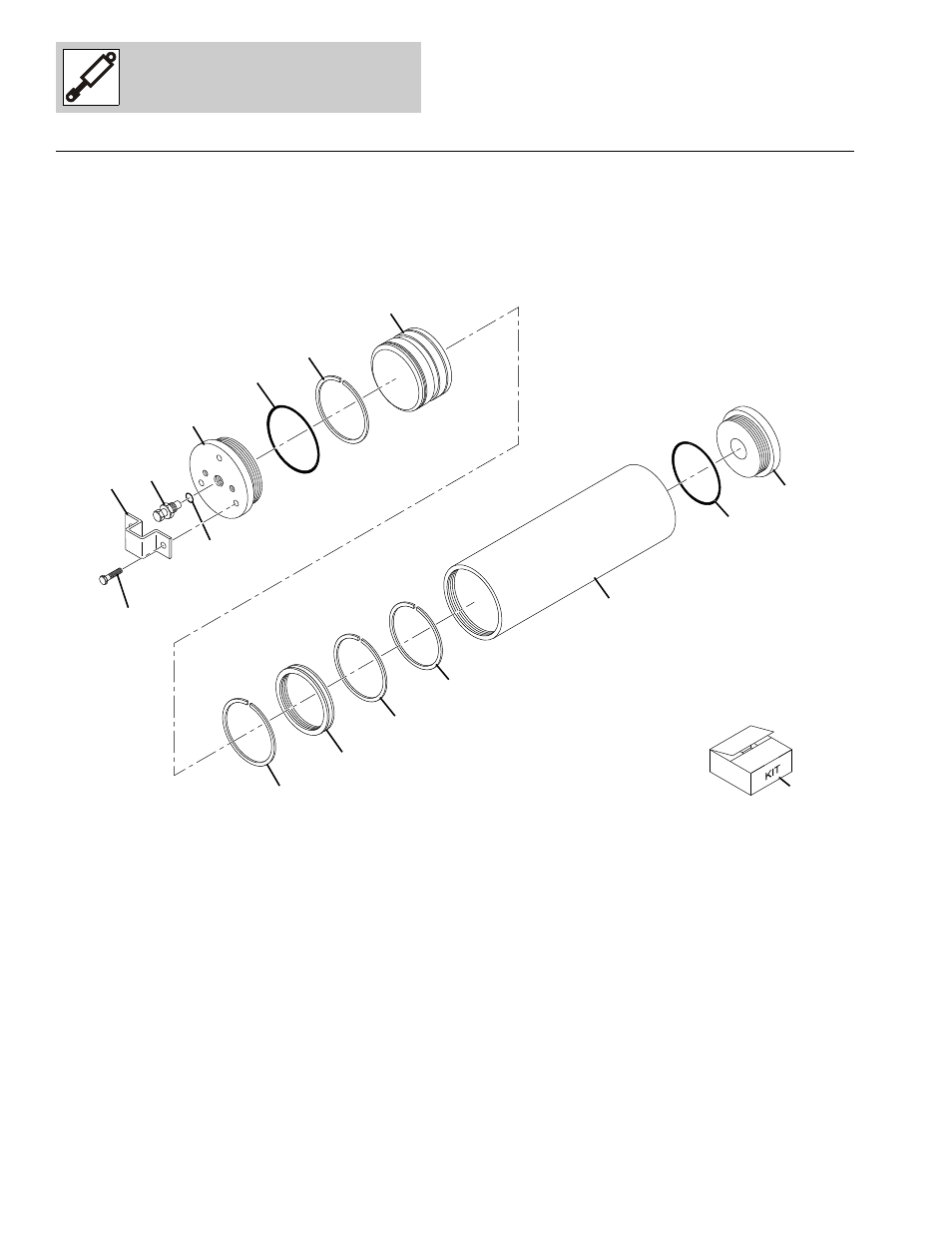

Figure 9-17 Accumulator Assembly

PAP14770

K1

1

2

3

4

5

6

7

9

6

7

11

12

11

10

8
