Lull 1044C-54 Series II Parts Manual - Manual (Page 34)

1044C-54 Series II 31200069 2-16
BOOM

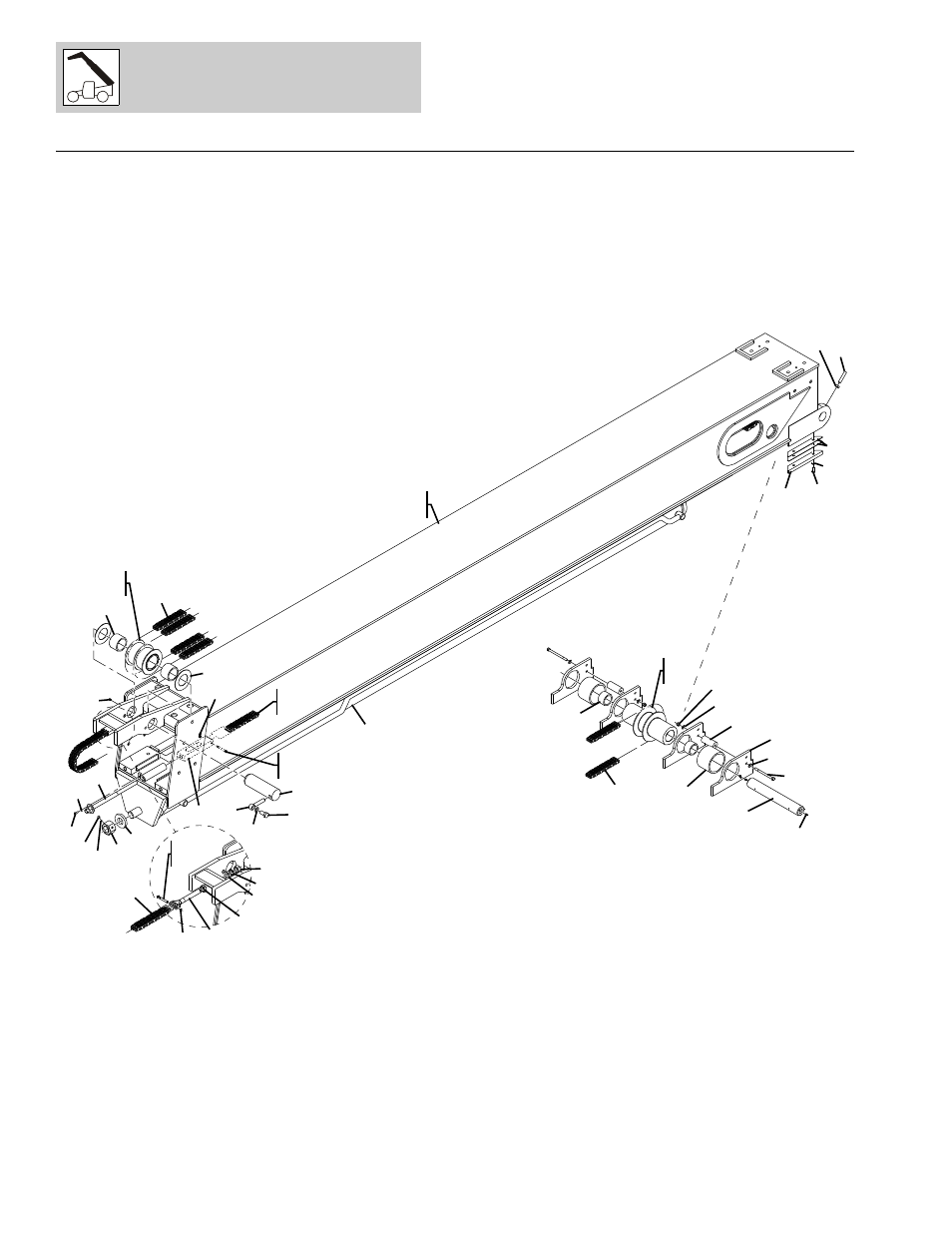

Figure 2-3 Second Boom Section
PAP14710
406
408
313
407 403
70
35
65
39
5
55
57
29
202
203
205
32
201
204
71
30
12
502
501
13
711
2
101
23
74
44
41
42
10
20
109 123
113
120
110
119
117
115
125
102
114
122
118
114
107
106
601
602
31
S/N 0160037900 & After including 0160037855
