Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

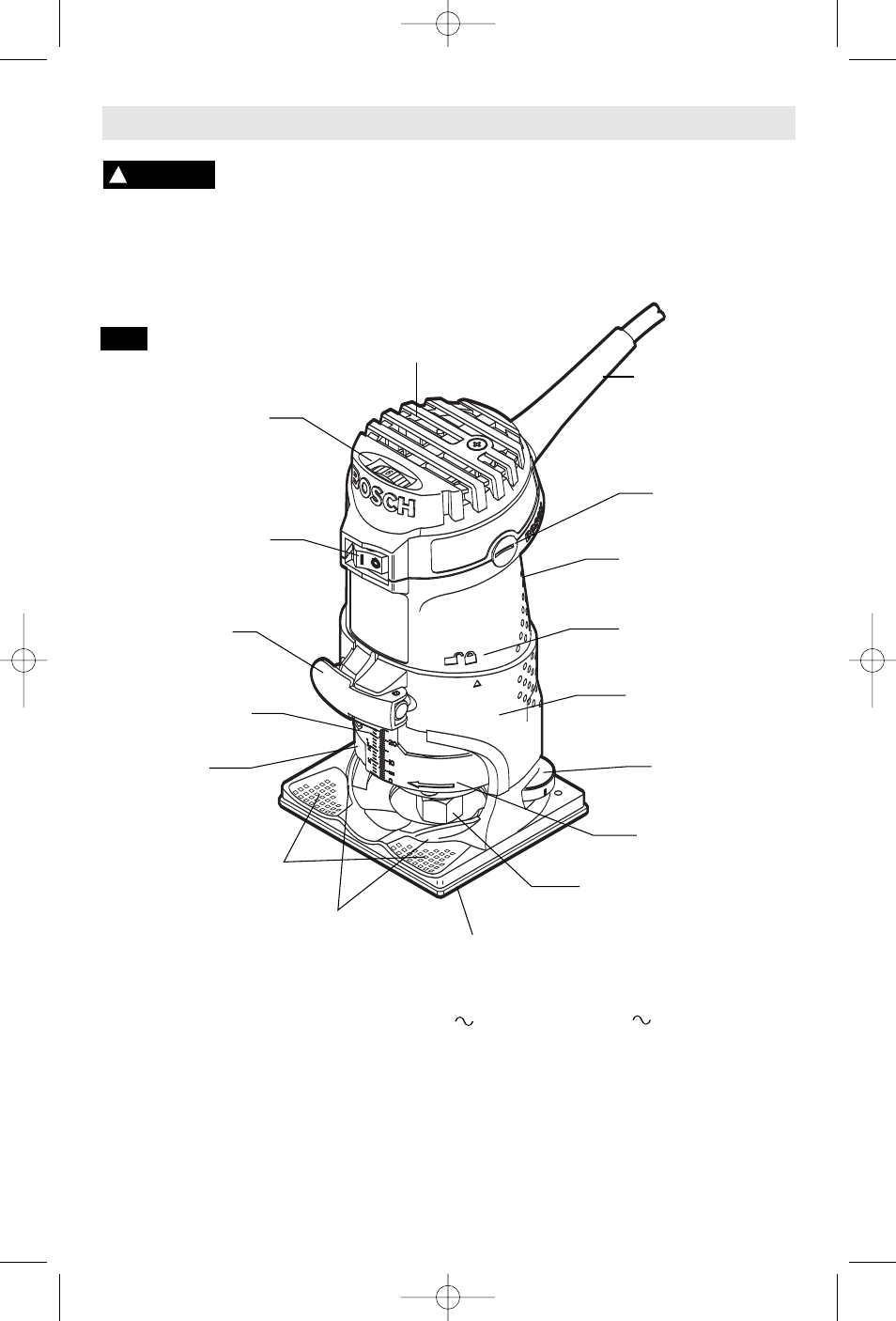

Palm Router
Microfine Depth
Adjustment
Bit Rotation Arrow
Collet Nut
Contoured
Grip Area
Brush Cap
Variable-Speed Dial
(PR20EVS model)
Finger Support Pockets
Finger Guards
Power Cord
Quick-Clamp
System Lever
Depth Scales
(Imperial & Metric)
Spindle Lock
Sub-Base
Rugged Aluminum
Base
Coarse Adjustment
Unlock/Lock Indicator
Rocker
On/Off
Switch
Air Vents
FIG. 1
Model Number
PR10E
PR20EVS
Voltage rating
120 V 60 Hz
120 V 60 Hz
Amperage Rating
5.7A
5.7A
No load speed
n
0
35,000/min
n
0
16,000-35,000/min
Bit Capacity
1/4" shank
1/4" shank
Max. Cutter Diameter
*
*
*Cutter diameter must be at least 1/4” smaller than opening for the bit and cutter.
