-6-

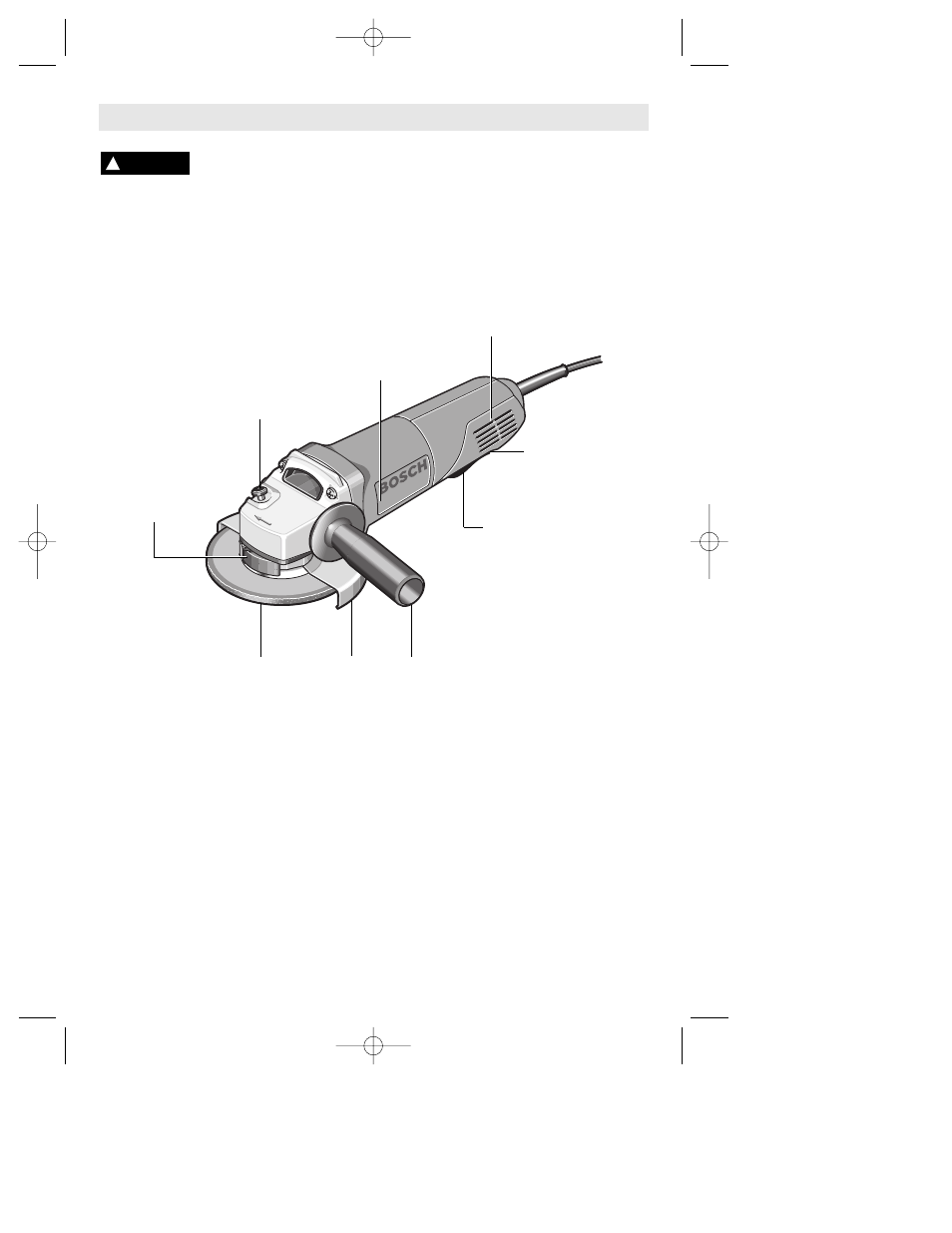

Functional Description and Specifications
GRINDING
WHEEL
GUARD
RELEASE / LOCK
LATCH
SPINDLE LOCK
SIDE
HANDLE
WHEEL
GUARD
VENTILATION
OPENINGS
SWITCH
BUTTON
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
! WARNING
NOTE: For tool specifications refer to the nameplate on your tool.
Angle Grinders
PADDLE SWITCH
"LOCK-OFF" SWITCH
RELEASE LEVER
Model number 1710 & 1710D 1711 & 1711D
Max. wheel diameter 4 1/2" (115mm) 5" (125mm)
Spindle thread 5/8"-11 UNC 5/8"-11 UNC
Max. wire wheel 4" Dia. 4" Dia.
Max. wire cup brush 3" Dia. 3" Dia.
Max. sanding disc 4 1/2" Dia. 5" Dia.
Max. cut off wheel 4 1/2" Dia. 5" Dia.
Max. dry diamond wheel 4 1/2" Dia. 5" Dia.
