+ = Not Illustrated * = As Required F/C = Failure Code AW = Refer to AW Labor Time Chart
37
2 608 000 174
Backing Pad
88
38
2 600 712 006
Baffle
24
39
2 601 329 037
Spring
27
40
2 603 100 056
Rubber Buffer {3}
9
41
2 602 319 010
Switch Slide
15
42
2 600 101 088
Shim {2}
65
* 42.1
2 600 101 089
Shim 0.3mm
65
* 42.2
2 600 101 090
Shim 0.4mm
65
* 42.3
2 600 101 091
Shim 0.5mm
65
45
2 600 290 025
Housing Holding Ring
89
46
2 601 015 075
Felt Pad
77
+ 701
2 608 000 200
Extension Plate
94
+ 702
2 608 000 198
Oval Extension Plate
94
+ 703
2 608 000 199
Narrow Extension Plate
94
803
2 604 010 939
Armature w/Fan 120V
AW
w/pos. 3/6, 14, 26
808
2 601 119 175
Nameplate
9
810
2 607 014 010
Brush Set
26
830
2 606 100 900
Pinion Gear Assembly
32
1
2 605 104 545
Housing Assembly
71
2
2 604 220 577
Field 120V
22
3/6
2 606 610 083
Fan
23
5
3 604 460 555
Cord 120V 18/2
11
5/1
1 900 452 012
Terminal Sleeve {2}
11
6
2 600 703 018
Strain Relief
11
7
2 601 035 001
Cord Clamp
89
9
2 601 118 941
Label "1294VS"
9
13
2 600 917 002
Needle Bearing
60
14
3 600 900 512
Ball Bearing
61
16
2 607 233 024
Switch & Brush Holder
25
17
2 604 448 034
Cable 88mm {2}
10
19
2 603 435 036
Screw {9}
89
26
2 606 333 033
Bevel Gear
33
27
1 600 910 018
Needle Bearing
56
28
2 600 390 026
Bearing Sleeve
82
34
2 608 000 173
Release Button
80
35
2 601 098 044
Foot Plate
88
36
2 604 680 000
Retaining Spring
89

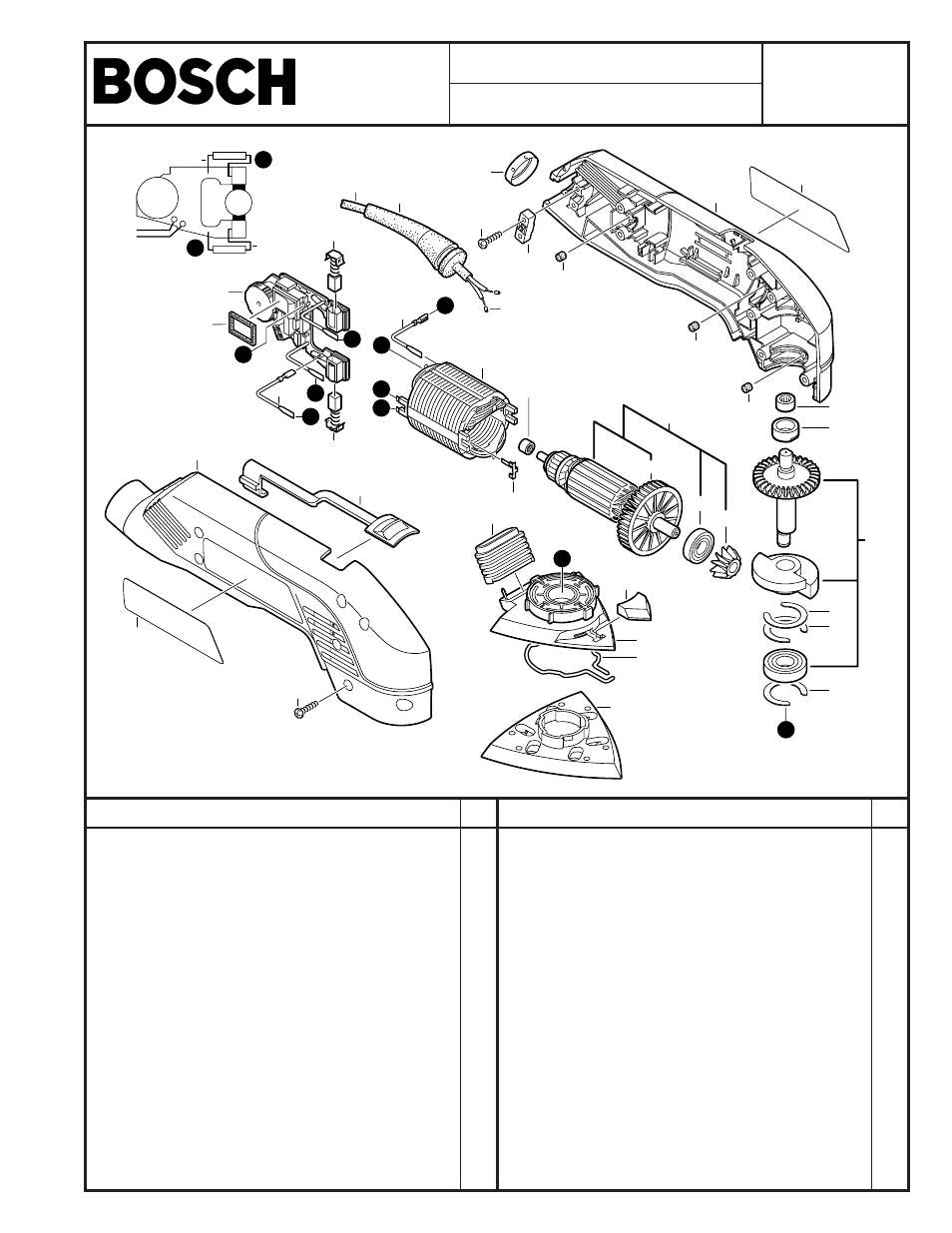

DETAIL SANDER
Model 0601294739
INDUSTRIAL
April 1999
S-B Power Tool Company Chicago IL 60646-5999
F/C
Pos.
Part Number
Description {Qty}
F/C
Pos.
Part Number
Description {Qty}
1294VS
41
1
808
19
42
42
42
830
28
27
E
40
1
40
19
7
9
40
45
A
B
C
D
13
2
39
17
26
14
803
3/6
37
35
36
34
38
6
17
46
810
D
C
B
A
810
5
E
5/1
M
17
17
D
C
Cord
16
