E MULEX M ODEL 355 SAN S TORAGE S WITCH
U SER ’ S G UIDE C HAPTER 3: S WITCH M ANAGEMENT
E MULEX C ORPORATION 36
P ART N UMBER 00041407-002 R EV . B
Single-Switch Zoning
The simplest zoning configuration is to place each port into a single zone, so that zones are separate
from each other as shown in
Figure 3-13 .
In Figure 3-13 , zone 1 includes ports 1, 3, and 4, while zone 2 includes ports 2 and 5. Devices on ports
1, 3, and 4 have direct access to each other and devices on ports 2 and 5 have direct access to each
other; however, devices 1, 3, and 4 are separated from devices 2 and 5.

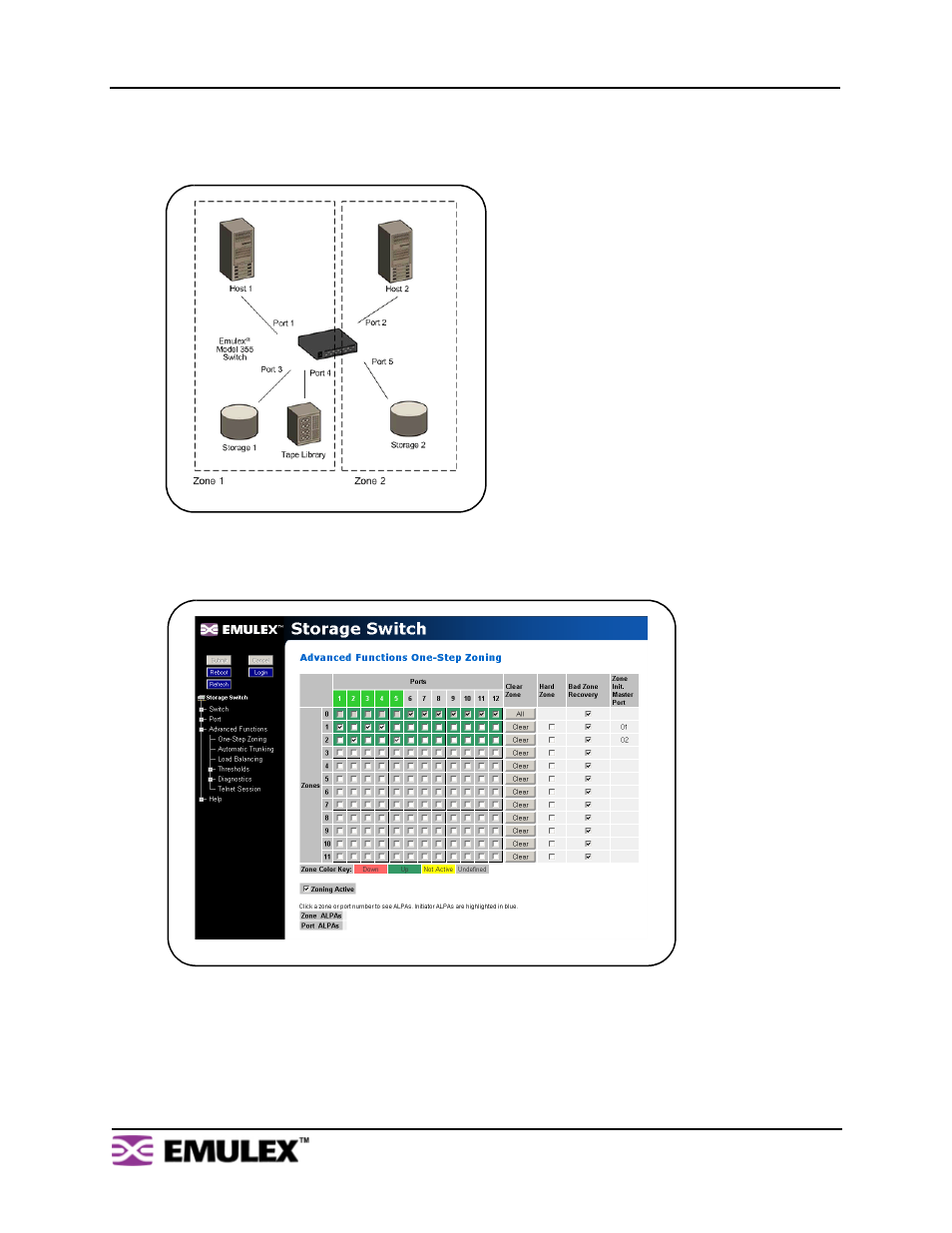

Figure 3-13: Devices in a Single Zone
Figure 3-14: Single switch zoning configuration
