Electra Verse Fender Set (350114, 350113) - Manual (Page 5)

4)
5)
6)
Bend tabs on fender hanger, making sure tabs
completely wrap around fender edges.
Fender hanger is designed to be mounted so
that it sits under the brake bridge and within
the frame.
Reattach brake and tighten mounting bolt,
making sure that the brake is centered

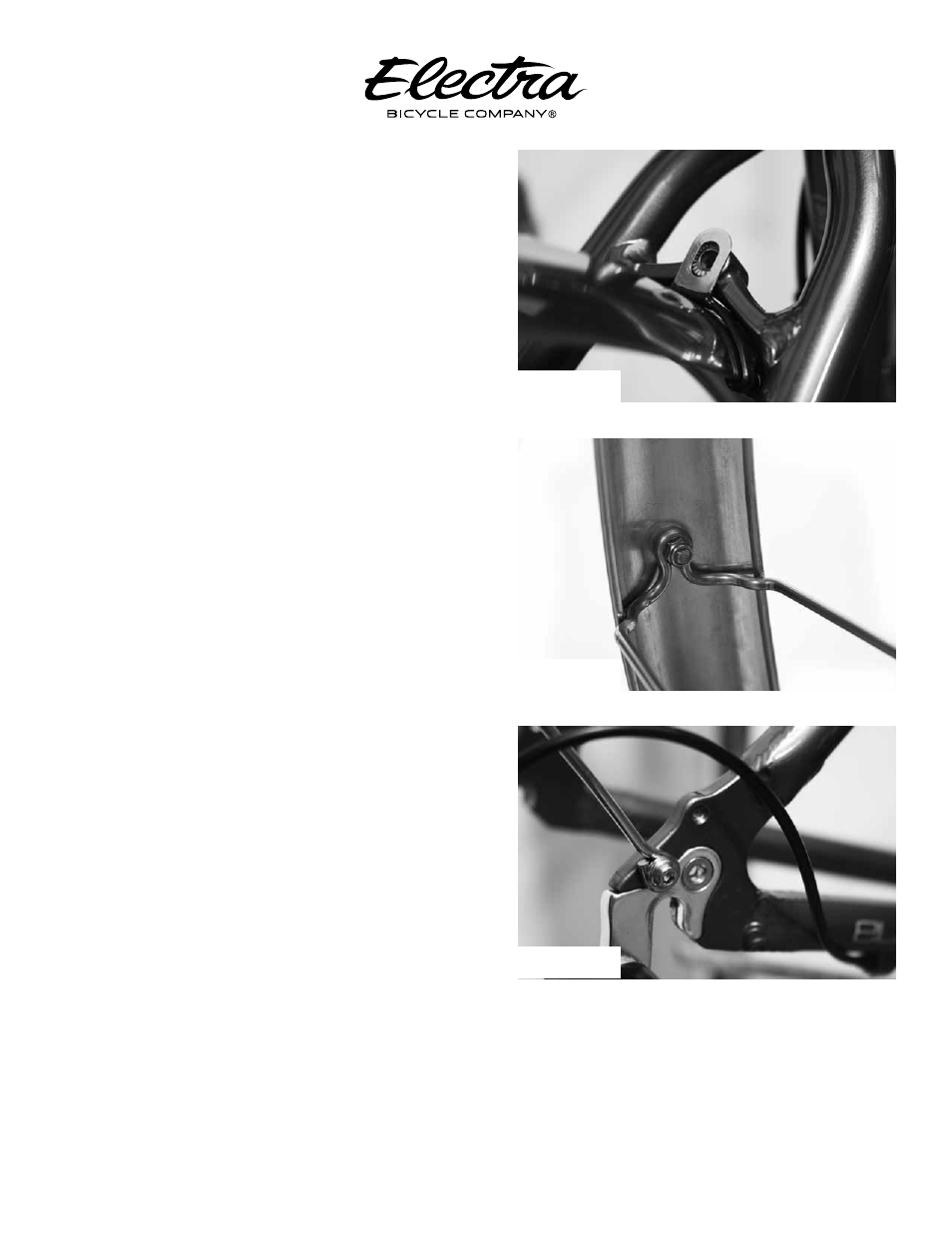

Using M5x11mm machine screw, fasten
bottom edge of fender to frame kickstand/
fender mounting plate.
Attach stay to rear fender using M4x9mm
machine screw and lock nut.
Attach stay to lower dropout mount using
M5x11mm machine screws.
IMPORTANT: Check front and rear brake
operation prior to riding. If brake rubs
on rims, center caliper and ensure that
mounting bolt is tight.
ELECTRA BICYCLE COMPANY , LLC. • 3270 CORPORATE VIEW, SUITE A, VISTA, CA 92081
TEL 760-607-2453 • ORDERLINE 800-261-1644 • FAX 760-598-7350 • ELECTRABIKE.COM
STEP 2:4
STEP 2:5
STEP 2:6
