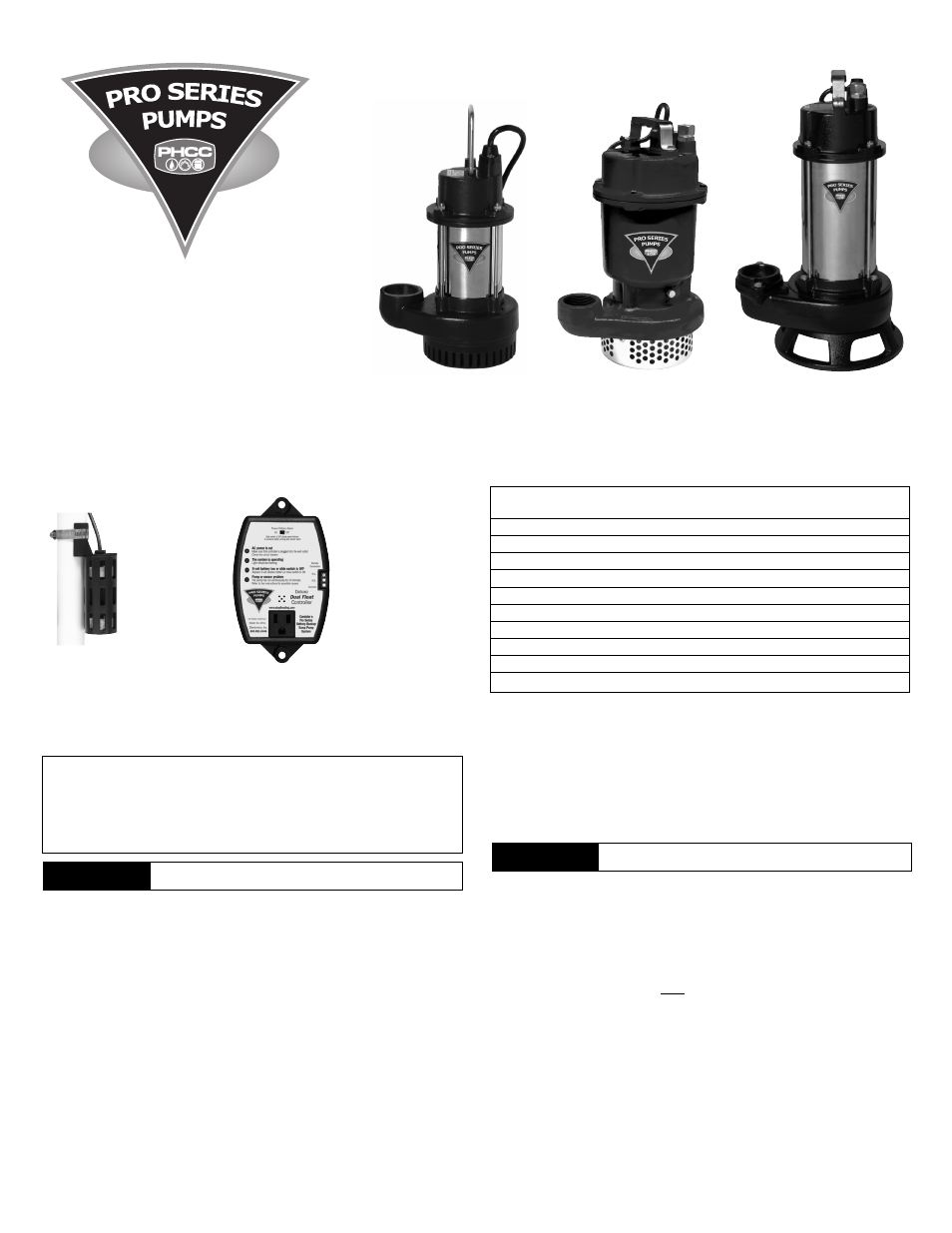

PHCC Pro Series S5 - S5 Series Sump Pump - Manual

Model Discharge Amps Max Solid Max GPM / GPH
No. HP Volts Diameter @ 10 Ј Handling Head @ 10 Ј
S3033 1 /
3
115 1 1 /
2
Љ 4.0 7 /
8
Љ 30 Ј 50 3000
S3050 1 /
2
115 2 Љ 4.3 7 /
8
Љ 33 Ј 65 3900
S3100 1 115 2 Љ 11.5 1 3 /
4
Љ 52 Ј 92 5520
S5033 1 /
3
115 1 1 /
2
Љ 4.0 1 1 /
2
Љ 26 Ј 59 3540
S5050 1 /
2
115 2 Љ 6.8 1 3 /
4
Љ 36 Ј 83 4980
E7040 4 /
10
115 2 Љ 6.3 2 Љ 22 Ј 74 4440
E7055 1 /
2
115 2 Љ 7.0 2 Љ 23 Ј 89 5340
E7100 1 115 2 Љ 12.8 2 Љ 23 Ј 114 6840
Specifications
S5 Series
Dewatering Sump Pumps
5 Year Warranty
E7 Series
Sewage Pumps
3 Year Warranty
PHCC Pro Series
Sump Pumps
Instruction Manual
& Safety Warnings
Important Safety Instructions and Warnings
SAVE THESE INSTRUCTIONS. This manual contains important SAFETY WARNINGS and
OPERATING INSTRUCTIONS for the PHCC Pro Series pumps. You will need to refer to it
before attempting any installation or maintenance.
ALWAYS keep these instructions with the unit so that they will be easily accessible.
Failure to read and follow these warnings and instructions could result in property
damage, serious injury, or death.
• ALWAYS disconnect the pump from the power source before servicing or making
adjustments.
• NEVER handle the pump or motor with wet hands or when standing on a wet or damp
surface while the pump is plugged into the power source.
• MAKE SURE THERE IS A PROPERLY GROUNDED RECEPTACLE AVAILABLE. This pump is
wired with a 3-prong grounded plug. To reduce the risk of electric shock, be certain
that it is only connected to a properly grounded, 3-prong receptacle (preferably with
ground fault circuit interrupt). If you have a 2-prong receptacle, have a licensed
electrician replace it with a 3-prong receptacle according to local codes and ordinances.
• NEVER bypass grounding wires or remove the ground prong from the plug.
• DO NOT use an extension cord. The electrical outlet should be within the length of the
pump’s power cord, and at least 4 feet above the floor level to minimize potential
hazards from flood conditions.
• DO protect the electrical cord from sharp objects, hot surfaces, oil, and chemicals.
Avoid kinking the cord.
• MAKE SURE the supply circuit has a fuse or circuit breaker rated to handle the power
requirements noted on the nameplate of the pump.
• DO NOT remove the power supply cord and strain relief or connect the pump directly to
the conduit.
• NEVER install the pump in locations classified as hazardous in accordance with the
National Electrical Code, ANSI/NFPA 70.
• ALWAYS install the pump in accordance with the National Electric Code and all
applicable local codes and ordinances. All wiring should be performed by a licensed
electrician.
• DO NOT use the power cord or strain relief to carry the pump. Use the pump handle.
• DO NOT expose the control unit to rain or snow.
• DO NOT operate the pump or control unit if it has been damaged in any way.
• DO drill an air bleed hole in the discharge pipe when a check valve is used. Drill
the hole angled toward the bottom of the sump to avoid splashing water outside
the sump pit. If a hole is not drilled above the pump, an air lock may prevent the
pump from operating. The hole must be drilled above the water line but below the
check valve. The optimum size of the hole is different for different pumps. Drill a
1/80 (3.2mm) hole in the discharge pipe for the S3 Series and S5 Series pumps.
Drill a 3/16” (4.76mm) hole in the discharge pipe for the E7 Series pumps.
• DO NOT use sump pumps in pits handling raw sewage, salt water, or hazardous liquids.
S2, S3 & S5 Series pumps are not designed for this purpose. E7 Series pumps are
sewage pumps.
• DO NOT disassemble the pump or control unit. When service is required, contact
Glentronics technical support at 800-991-0466, option 3. Return the product to the
manufacturer for any repairs at the following address:
Glentronics, Inc.
645 Heathrow Drive, Lincolnshire, IL 60069
ƽ CAUTION
ƽ WARNING
S3 Series
Dewatering Sump Pumps
3 Year Warranty
Risk of electric shock. To reduce this risk, observe the
following precautions.
To reduce the risk of hazards that can cause injury or
property damage, observe the following precautions.
1
The
Dual Float
Deluxe
Dual Float
Controller
