Loosen the Main Adjustment Knob (approximately a half turn)
and turn the Main Adjust Handle counterclockwise until the
case mouth is approximately 0.5" above the trimmer pilot
with the T-handle in the up position
Tighten the Main Adjustment Knob and lower the T-handle to
determine how much fine adjustment is needed until the case
mouth makes contact with the trimmer cutter.
Loosen the Main Adjustment Knob (approximately a half
turn) and turn the Micro Adjust Handle clockwise or
counterclockwise until the case mouth barely touches the
trimmer cutter.
NOTE: Each mark (knurl) on the Micro Adjust Handle is
equivalent to .001" of vertical adjustment.
Tighten the Main Adjustment Knob, plug in the power cord
and press the on switch to start the case trimmer motor.
With the case in the Shell Holder, lower T-Handle until it stops
on the spindle support and trim case neck.
Raise the T-Handle, shut off the motor and remove the case
from the Shell Holder by turning Cam-Lock
™ handle in a
clockwise direction.
Measure case length and make adjustments by loosening the
Main Adjustment Knob and turning the Micro Adjust Handle
in a clockwise up or counterclockwise down direction.
Repeat steps 14-16 until desired trim length is obtained.
Make sure the Main Adjustment Knob
Instructions for
Power Case Prep Tools:
Check to make sure the power cord is NOT plugged in and
screw Chamfer Tool, Deburring Tool, small and large Primer
Pocket Cleaners, Case Neck Brushes and optional Flash Hole
Deburring Tool and/or Primer Pocket Reamer into the threaded
sockets. You can arrange the various case prep tools in any
manner that suits your wishes.
Plug in the power cord and turn on the motor by pressing the
switch on the back of the machine. Sit or stand directly in
front of the Hornady Lock-N-Load
® Power Case Prep Center so
you are not working at an angle.
Use the Primer Pocket Cleaner Heads and the Case Neck
Brush to remove accumulated carbon deposits and powder
residue from your cases after every reloading cycle. These
tools are simple to use but we feel it would be helpful to cover
some basic techniques.
To use the Primer Pocket Cleaner Head, grasp a fired case
and guide the primer pocket to the small or large cleaner
head. Use small head for small rifle calibers, e.g. .223
Remington and large head for large rifle calibers, e.g. .243
Winchester. Apply light pressure for approximately five
seconds or until carbon deposits are removed from the primer
pocket. When you are satisfied with the condition of the
primer pocket use the wire brush to remove powder residue
from the case neck. If your cases require trimming then you
will need to use the Chamfer and Deburring Tools. These tools
are easy to use but we feel it would be helpful to cover the
basic techniques.
Grasp a trimmed case and slowly guide the case mouth on to
the point of Chamfer Tool with light pressure. Hold the case
on the Chamfer Tool for approximately five seconds or until
the tool produces a very small bevel on the inner surface of
the case mouth. This will make bullet seating easier.
When you are satisfied with the bevel on the case mouth
remove the burr from the outer surface of the case neck by
guiding the case mouth to the spindle of the Deburring Tool.
Apply light pressure and hold case on the Deburring Tool for
approximately five seconds or until the burrs are removed
from the outer surface of the case neck.
Optional Accessories
The following tools work with the Lock-N-Load ® Case Prep
Center and are available to purchase separately.
Small Primer Pocket Reamer .................................. 390750
Large Primer Pocket Reamer .................................. 390751
Large Caliber Chamfer (45 Cal. and larger) ........... 050170
Large Caliber Deburr (45 Cal. and larger) .............. 050171
17 Cal. Case Neck Brush.......................................... 380062
4
5
6
7
4 7
5
6

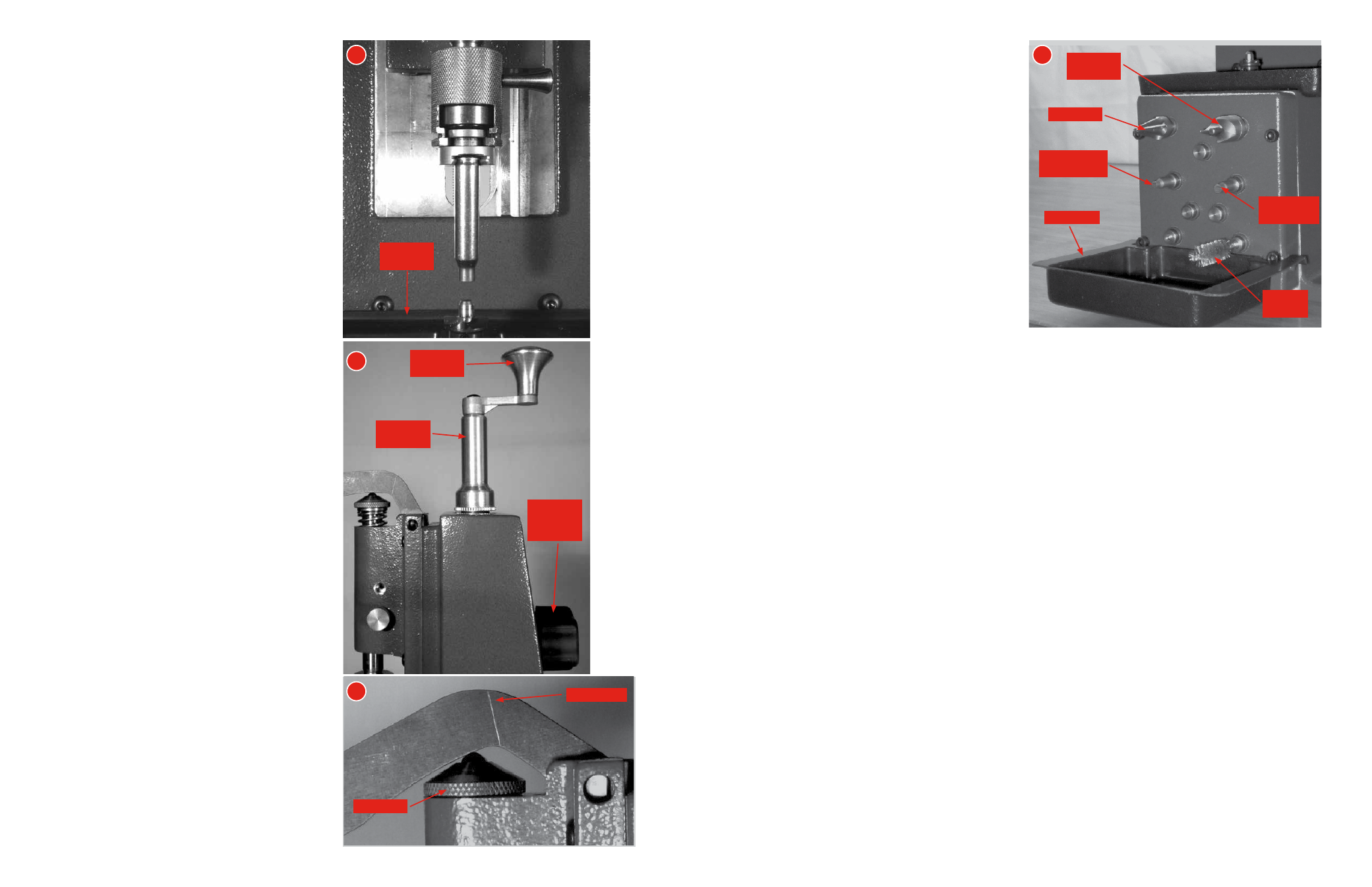

Chip Catcher
Accessory
Main Adjust
Handle
Small Primer
Pocket Cleaner
Chip Catcher
Large Primer
Pocket Cleaner
Main
Adjustment
Knob
Micro Adjust
Handle
Spindle Stop
T-Handle Arm
Chamfer Tool
Case Neck
Brush
Deburrring
Tool
