Hornady Lock-N-Load Power Case Prep Center - Manual (Page 2)

Item
No.
Production
Part No. Qty. Description
1 399117 1 Power Trimmer Handle
2 399142 1 Handle Trimmer Left
3 399133 1 Nut Spindle Stop
4 399128 1 1/4" Steel Ball
5 399141 1 Handle Trimmer Right
6 399113 1 Spindle Return Spring
7 399112 1 Trimmer Spindle
8 399119 2 Spindle Support Guide Rod
9 399136 6 Button Head Cap Screw (BHCS) 8-32 X 1/2
10 399116 1 Power Trimmer Spindle Support
11 399134 1 Spindle Locking Bolt
12 399121 1 Case Lock Power Trimmer
13 399135 1 Handle Pin
14 399122 1 Case Lock Plunger
15 380053 1 Spring Shell Holder Ram
16 399123 1 O-Ring
17 398219 1 Cam-Lock Handle Shell Lock
18 399126 1 Power Trimmer Chip Catcher
20 399153 6 Gear and Shaft Assembly
21 399152 1 Drive Gear and Shaft Assembly
22 399154 2 Idler Gear and Shaft Assembly
23 399131 10 Flange Bushing, 3/8" ID
24 399138 4 Socket Head Cap Screw (SHCS) 10-24 X 1¼
25 399100 1 ID Chamfer Tool
26 399101 1 OD Chamfer Tool
27 399107 1 Case Prep Chip Catcher
28 399108 1 Case Prep Cover
30 399143 3 Button Head Cap Screw (BHCS) 10-32 X 1/2
31 390651 1 Flat Washer, 3/16 SAE, Zinc
32 398218 1 Handle Trimmer
33 399129 1 Leed Screw Micro Adjust
34 391014 1 Screw Socket Set, 10-32 X 3/16
Item
No.
Production
Part No. Qty. Description
35 399110 1 Power Trimmer Frame
36 399132 1 Flange Bushing 1/2" ID
37 399120 1 Leed Screw Power Trimmer
38 399130 1 Knob, 1/4-20
39 399139 1 Washer Wave, 1/4" ID X .010 THK.
40 399114 1 Spindle Lock Power Trimmer
41 398332 1 Switch
42 390972 1 Cam-Lock Trimmer Cutter
43 392011 2 Hex Nut, 10-32
44 399111 1 Power Trimmer Motor Cover
45 399124 1 Motor
46 399115 1 Power Trimmer Cutter Spindle
47 399147 1 Washer, .036 THK., Steel
48 399148 1 Spring, Curved
49 392426 1 Roll Pin, 1/8 X 1/2
51 399149 1 Washer, .020 THK., Steel
53 399125 4 Motor Stand Off
54 399109 2 Motor Gear
55 399150 1 Washer, .010 THK., Steel
56 399140 4 Socket Head Cap Screw (SHCS) 8-32 X 2¼
– 380063 1 Case Neck Brush, 22 Cal.
– 380065 1 Case Neck Brush, 25 Cal./6MM
– 380066 1 Case Neck Brush, 270 Cal./7MM
– 380067 1 Case Neck Brush, 30 Cal.
– 380068 1 Case Neck Brush, 35 Cal.
– 380069 1 Case Neck Brush, 45 Cal.
– 398241 1 Pilots Trimmer 7 Pkg.
57 399185 1 E-Clip, 5/16
58 392306 1 Pin Dowel, 1/8 X 1/2
59 399179 1 Motor Mount
60 398837 2 Pan Head Screw 8 X 3/4
61 398838 2 Pan Head Screw 8-32 X 1/4
1
2
5
7
9
10
11
12
14
15
16
18
13
17
20
21
22
23
24
25
26
27
28
56
35
36
56
55
54
53
51
49
48
47
46
45
9
44
43
42
41
40
39
38
37
30
31
32
33
34
23
3
4
6
8
57
58
59
60
61

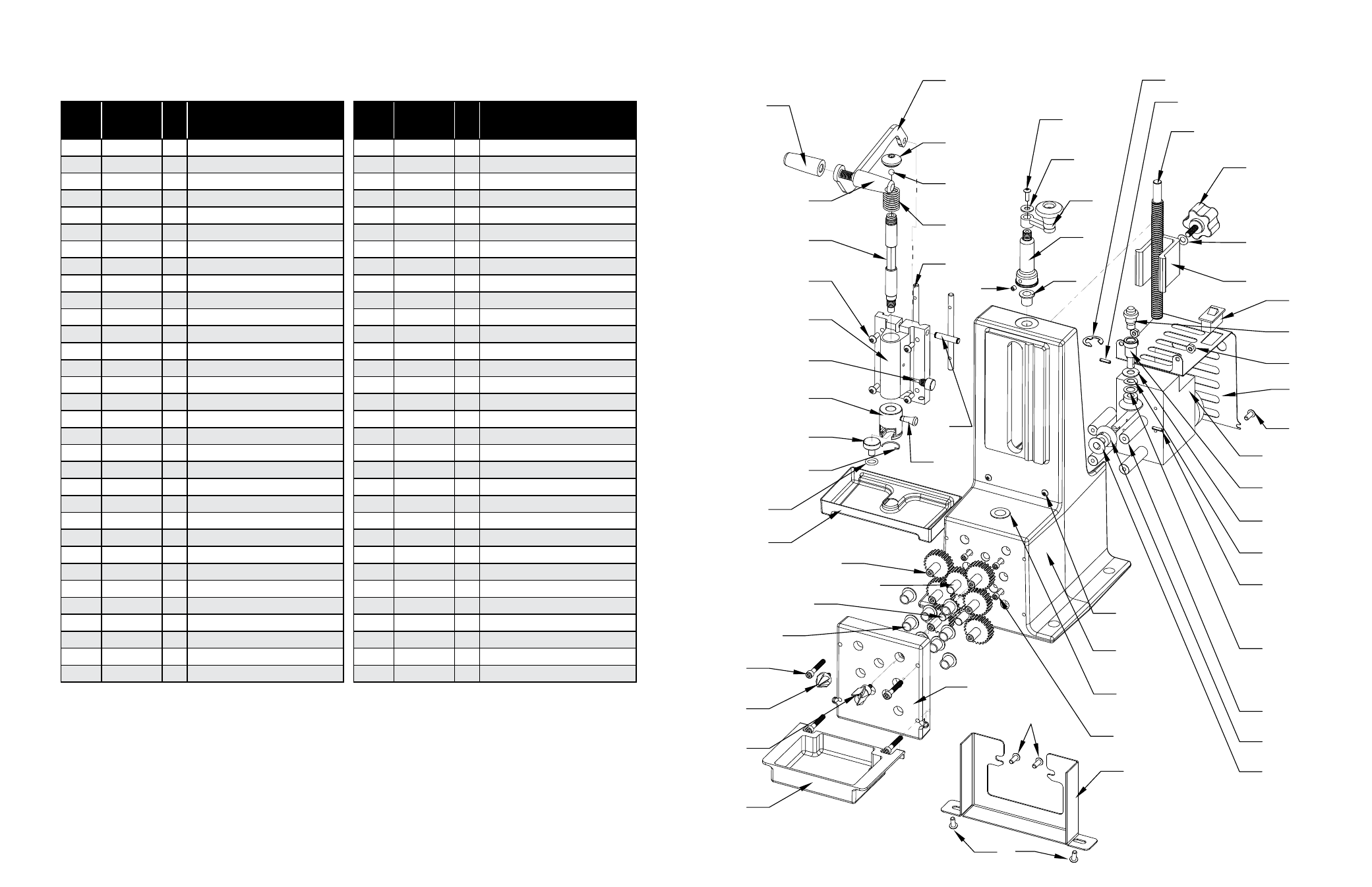

Lock-N-Load ® Power Case Prep Center
PARTS LIST
Lock-N-Load ® Power Case Prep Center
EXPLODED VIEW
- 3 - - 2 -
