FRAMING
1

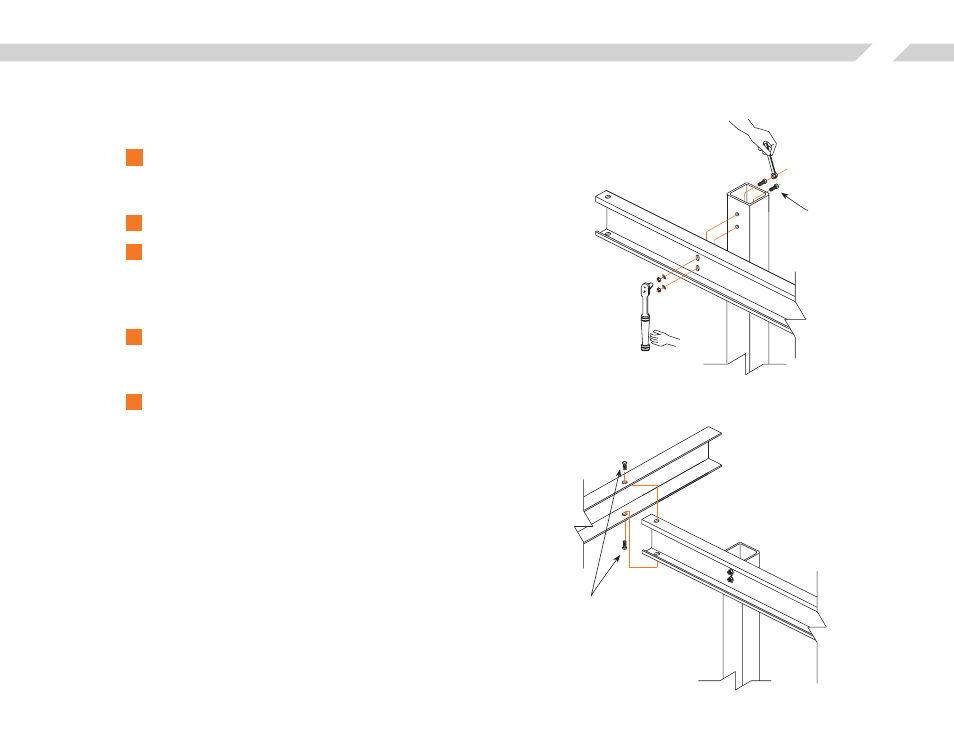

Turn open face of purlin to the center of carport. Align pre-
punched holes in column and purlin (P-1A) and attach with ½"
Hex Head bolts as shown.
2
Repeat step 1 at all columns as shown in framing details.
3
Install both cap channels (ER-1) as shown in the framing detail.
End of cap channel should be 4'-6" from center of column.
Making sure the purlins (P-1A) are inserted as deep as possible
into the cap channels. Attach with bolts as shown.
4
Center purlin (P-1) is installed according to dimensions shown on
drawing, and attached with bolts as shown. Turn open face of
purlin either direction.
5
Install the high side (P-1) and low side (P-1) purlins with the open
face of purlin pointed towards the center of the carport. Insert
the purlins as far as possible into the cap channel (ER-1) and
flush with the end of cap channel to form and outside corner and
attach with Flat Head bolts as shown.
½" x 1"
Hex Head Bolt
½" x 1"
Flat Head Bolt
