Mueller 20x20 Carport User Manual
Page 2

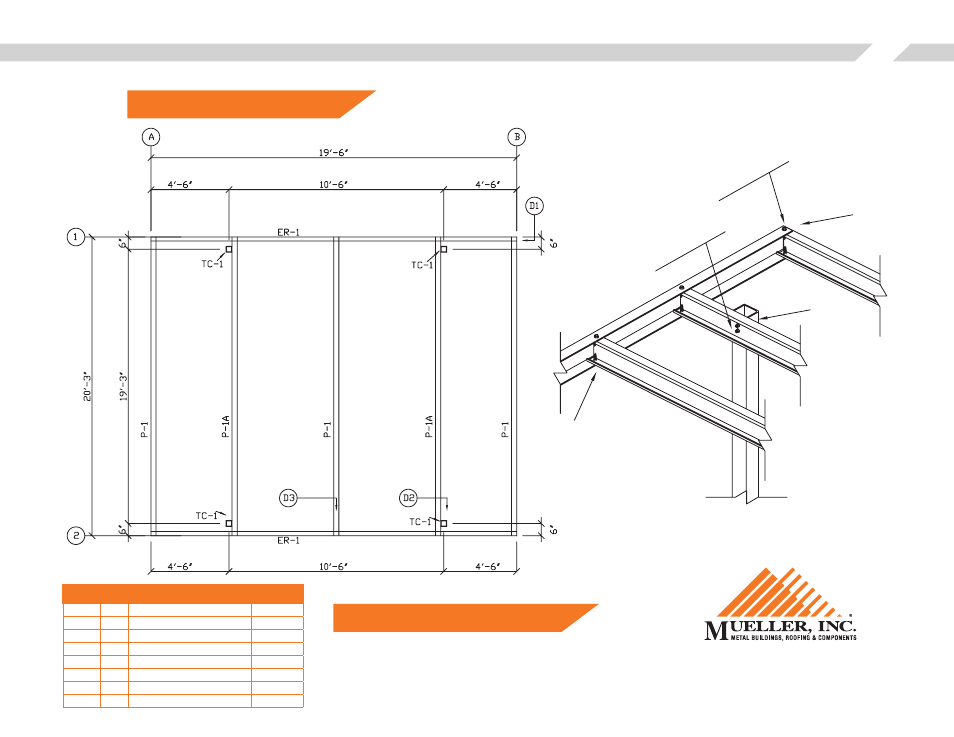

List of Materials
MARK QTY
DESCRIPTION
LENGTH
P-1
3
8" x 2½" C-BAR
20'-2½"
P-1A
2
8" x 2½" C-BAR "PU"
20'-2½"
ER-1
2
8" x 2 CAP CHANNEL
19'-6"
TC-1
4
4" x 4" SQUARE TUBE
10'-0"
8
BOLT - HEX HEAD
½" x 1"
20
BOLT - FLAT HEAD
½" x 1"
(4)
(4" x 4" x 12' OPTIONAL)
C- Bar Purlin
NOTE: Sheets are to hang off the low side.
Mueller, Inc. 24 x 24 Carport Instructions
2
NOTE: Carport kits are not engineered.
877-2- MUELLER
www.muellerinc.com
Detail D1
Detail D2
Detail D3
Squar
e
Tube
½" x 1"
Flat Head Bolt
½" x 1"
Hex Head Bolt
Cap Channel
