Raptor™ 100 & 150 1992 – 2000 Chevy Diesel
Section 6 Electrical Harness

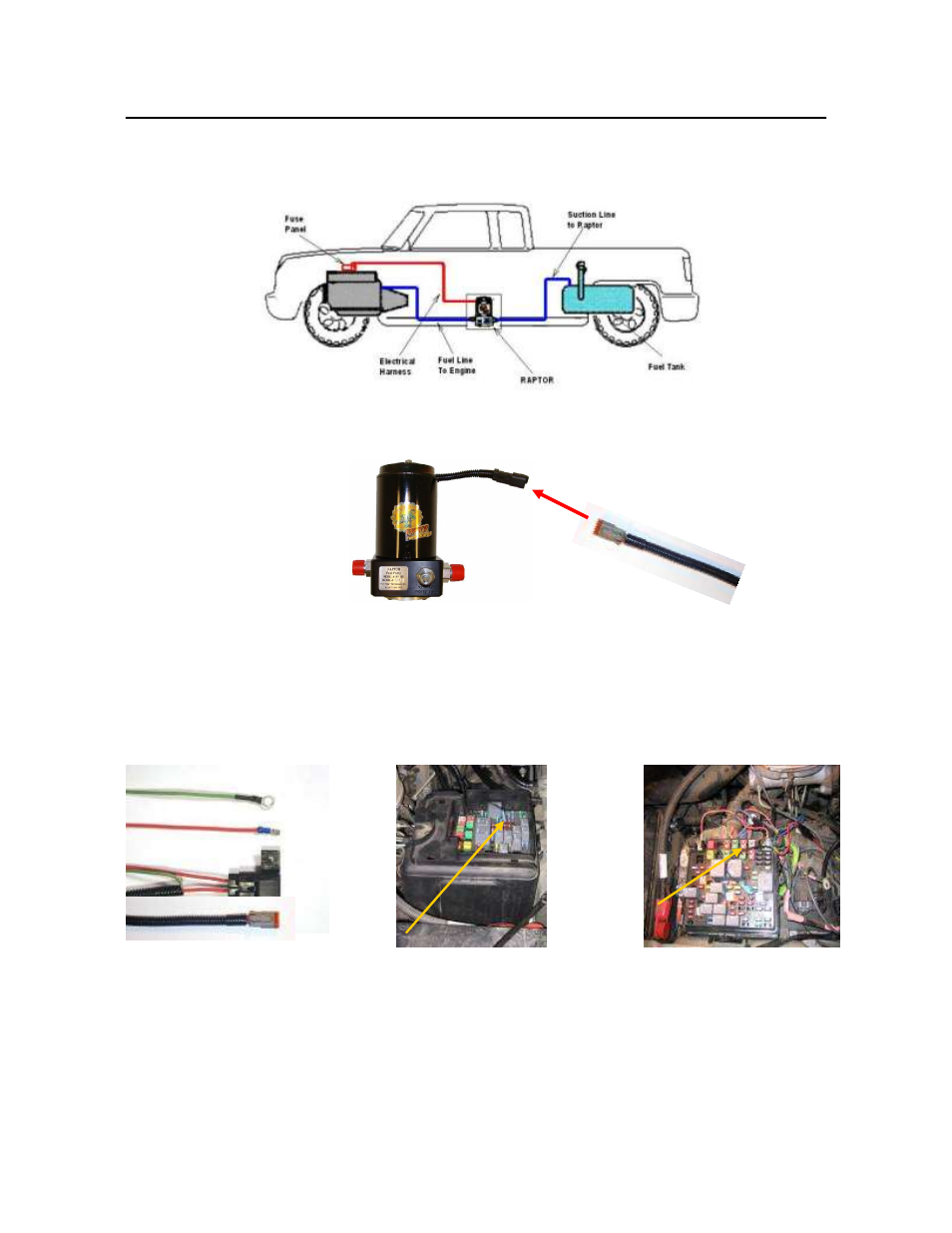

CHEVY DIESEL RAPTOR™ WIRING DIAGRAM
Figure 19
Installing the Raptor™ Fuel Pump wiring harness.
Figure 20
6-1.
To connect the Power Supply Lead to the Raptor™, insert the 2 pin Deutsch connector on
the end of the wiring harness into the corresponding connector on the Raptor™.
6-2.
Route the wiring harness from the Raptor™ to the fuse/relay panel located under the
hood on the drivers side.
6-3. Crimp the female spade connector on the end of the Red (+) wire.
Ground Wire
Hot Lead
Water Proof Fuse
Raptor Pump Lead
Figure 21 Figure 22 Figure 23
6-4.
Route the Red (+) wire to the fuse panel located under the hood on the driver’s side
wheel house and insert it into a spare fuse holder on the panel that is “hot” when the
starter key is turned to the on position. Secure the wire with plastic ties.
6-5. Connect the Black (-) wire to an adequate ground.
BE SURE TO PROPERLY ROUTE AND SECURE THE WIRING HARNESS TO THE
VEHICLE.
