PureFlow AirDog
AirDog
®
II Demand Flow 2011-2012 DuraMax Diesel
Section 6 Electrical Harness, cont’d
Connecting the power supply leads, cont’d

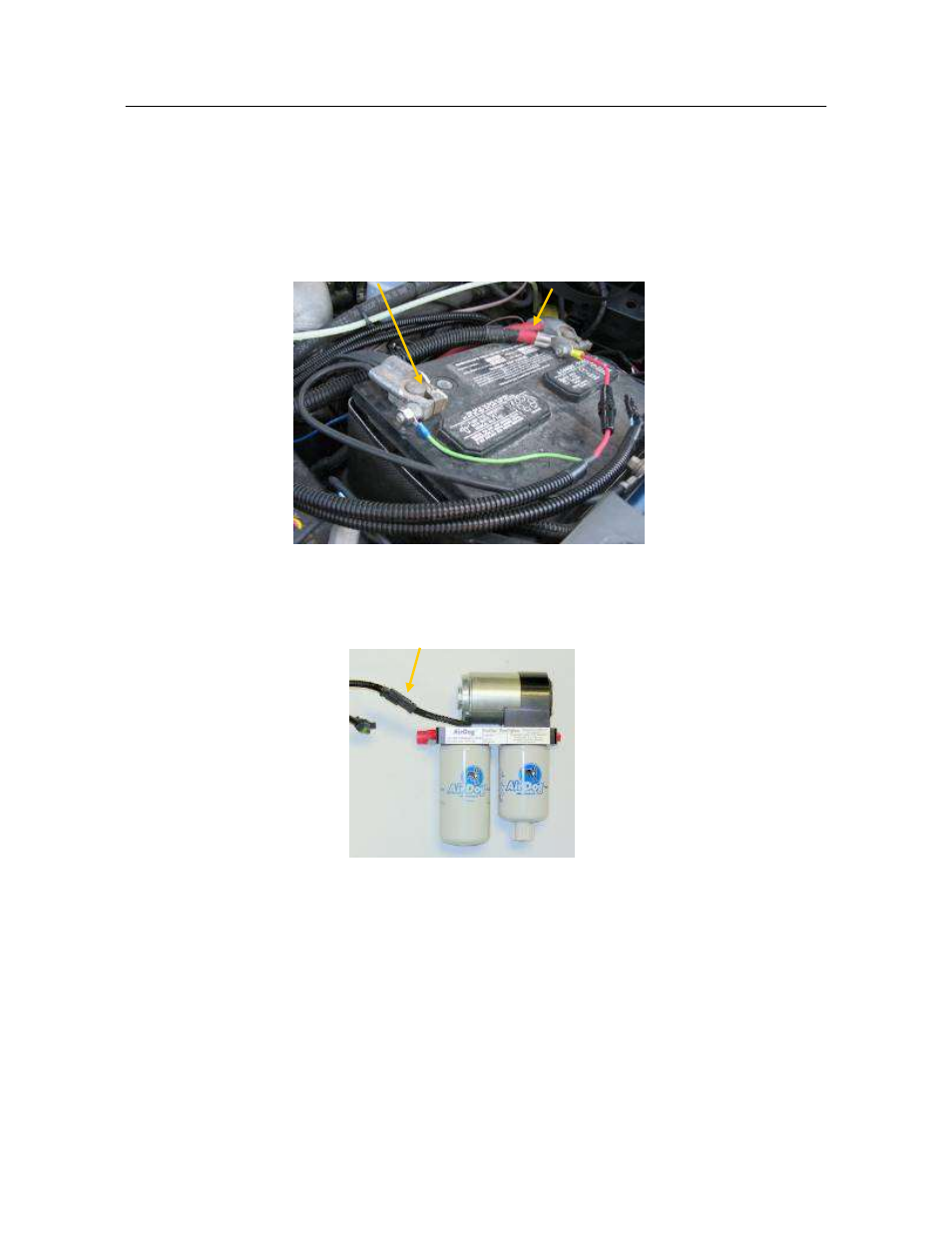

6-4B. Should you choose to connect the power supply leads directly to the battery,
connect the RED (+) lead to the POSITIVE (+) post of the driver's side battery.
Connect the BLACK (-) lead to the NEGATIVE (-) post of the same battery.
Black (-) Red (+)
Figure 32
6-5.
Route the wiring harness to the AirDog
®
II and connect the 2 pin Deutsch connector to the
corresponding connector on the AirDog
®
II.
Figure 33
NOTE: If the Optional Indicator Light is not used, secure the pressure switch lead to the
wiring harness with a plastic tie. Also, cover the pressure sensor lead to protect it, you may want
to use it later.
