Page 10
10
PureFlow AirDog
AirDog
®
II
2011-2012 DuraMax Diesel
Section 4 AirDog
®
& Mounting Brackets
Installing the AirDog
®
& Mounting Bracket
on the Truck’s
Frame, cont’d!
4-6. Mark mounting hole locations on frame jig bracket using the mounting bracket (001-3C-
0004) as a template. Or create a paper template from the mounting bracket (001-3C-
0004). Be sure to line the template up as described in order to get the proper clearance
needed when pump is installed.

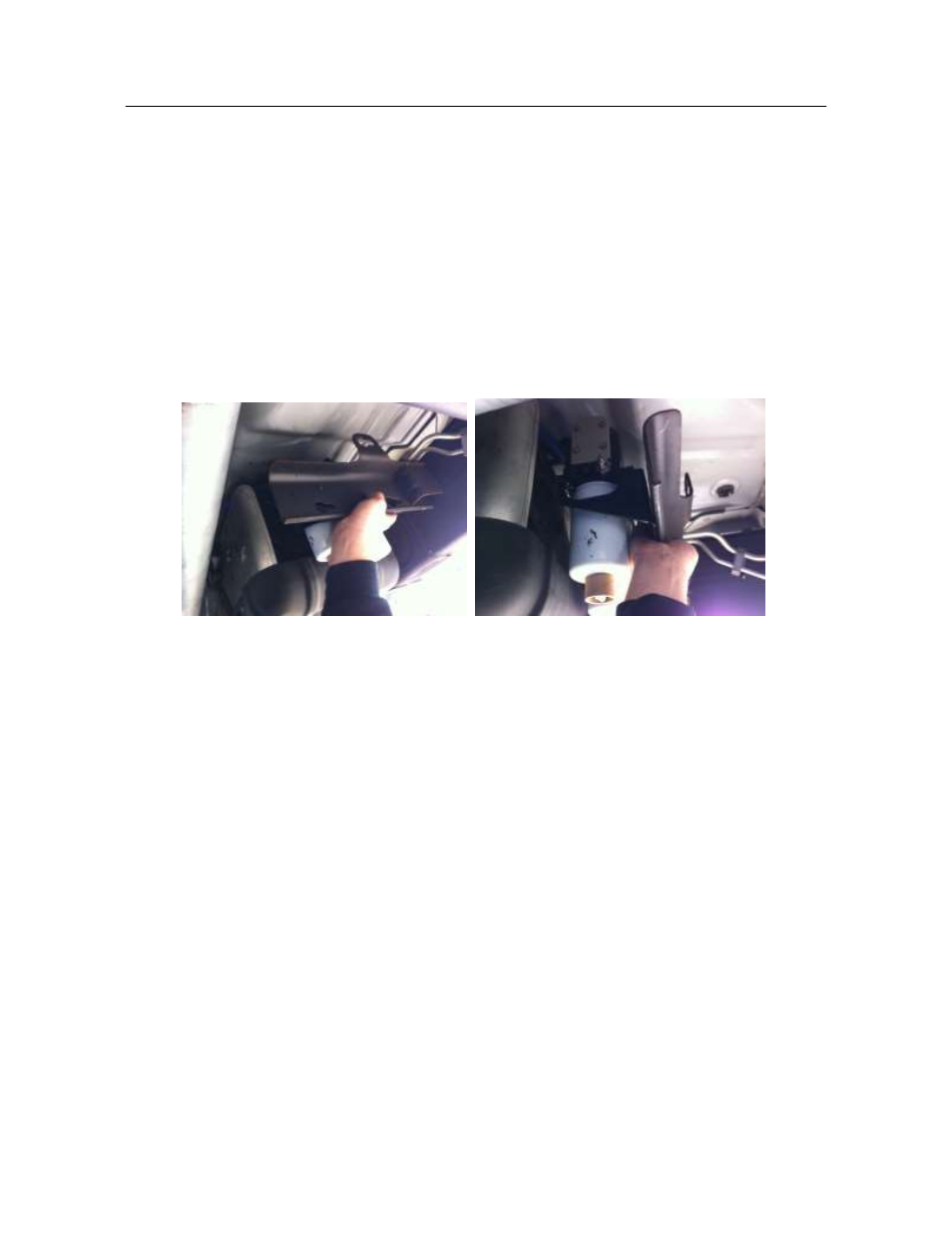

Figure 9
Figure 10
4-7.
After holes are marked drill (4) 3/8” holes for the mounting bolts.
4-8. Attach the completely assembled Airdog to the frame jig bracket.
