15
PureFlow AirDog
AirDog
®
II 2011-2012 DuraMax Diesel
Section 6 Electrical Harness
The AirDog
®
II is equipped with a relay controlled wiring harness.

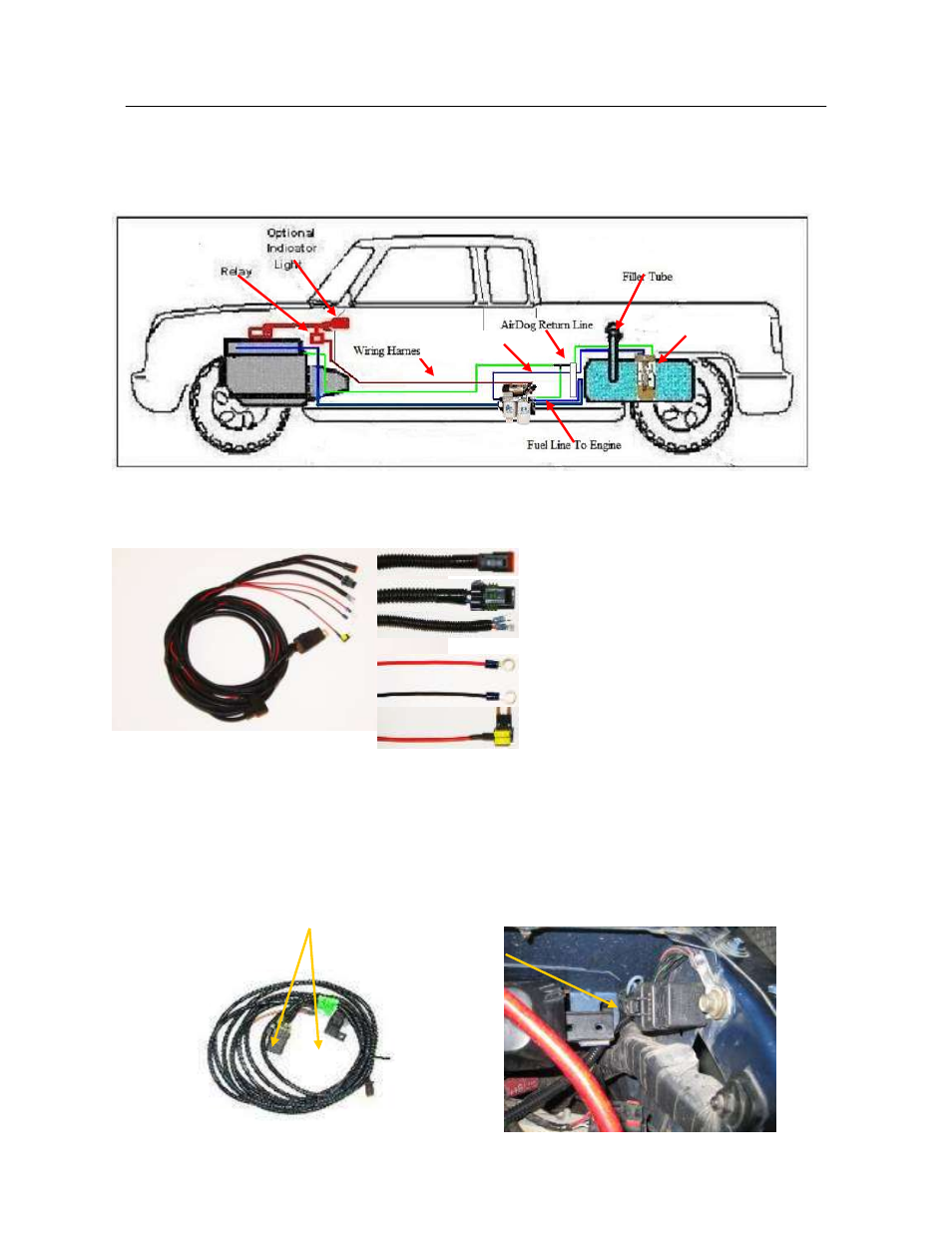

WIRING DIAGRAM (In Red)
Figure 24
The AirDog
®
II wiring harness!
AirDog®II Pump Motor Lead
Pressure Sensor/Switch Lead*
Indicator Light Lead*
Battery Positive Lead
Battery Negative Lead
Mini Fuse Tap Relay Lead
Figure 25
CAUTION: If the OPTIONAL Low Pressure Indicator Light is not used, be sure to insulate the
two (2) #10 Indicator Light connectors and pressure sensor lead to prevent accidental contact.
*
The light kit is sold separately and is not included in the kit.
Securing the Relay and Fuse Holder to the Vehicle
6-1.
Secure the relay and fuse holder to the vehicle.
Figure 26
Figure 27
Fuel Supply Line
Fuel Module
