II Ford PowerStroke 2008 - 2010 6.4L
Section 5-A Fuel Lines
AirDog
®
II Fuel Line to the Engine.

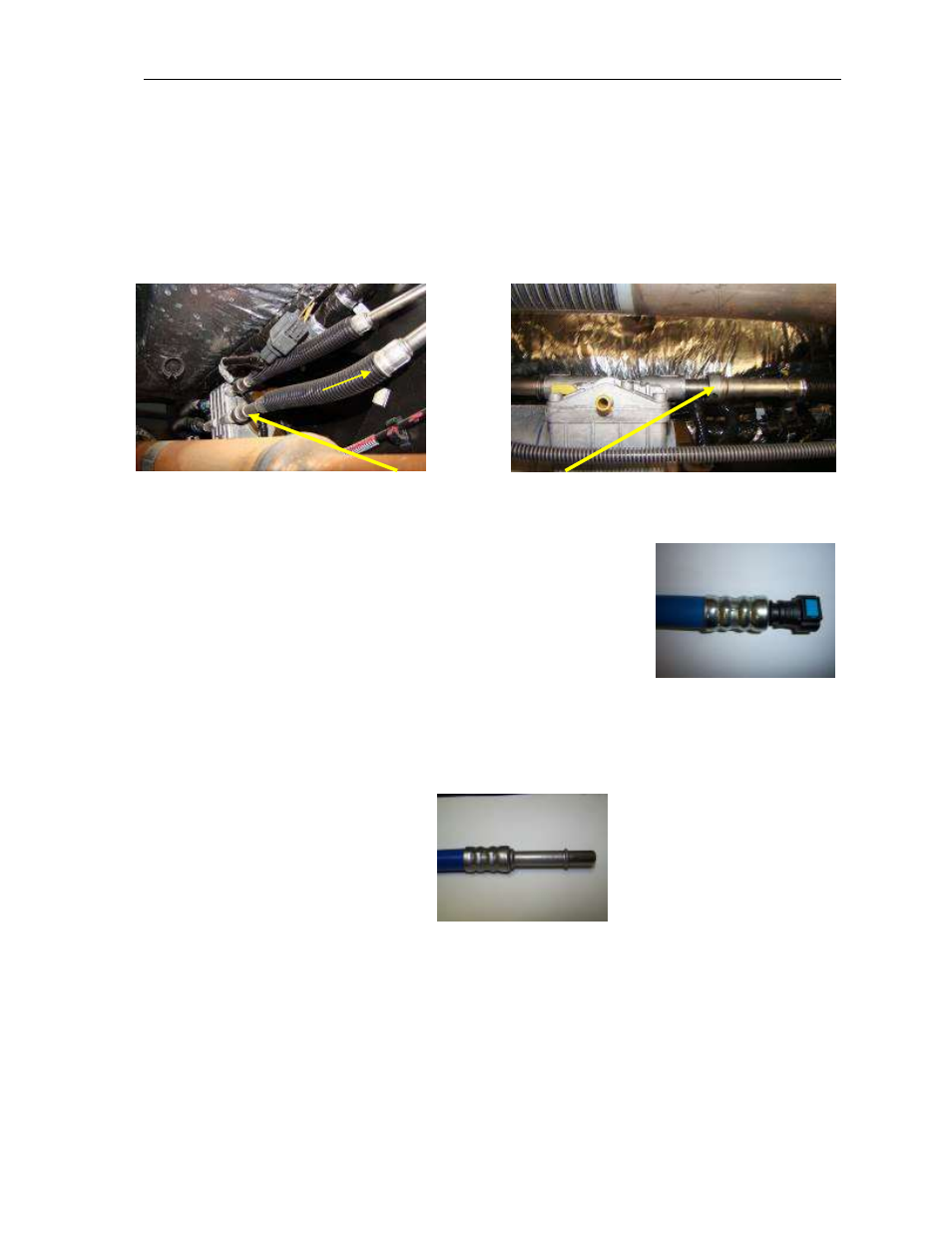

5A-1. Disconnect the fuel supply line to the engine from the OE fuel pump. This pump is
located on the driver’s side inside frame rail.
Fuel Pump with 1/2” Quick Connect Fitting
To Engine
Figure 11 DISCONNECT HERE Figure 12
View from Front View From Below
5A-2 Insert the female quick connect end (see figure 13) of the
“Pressure Hose Assembly” into the male quick connect
fitting previously installed in the port marked “ENGINE”.
You will hear a “click” when it connects.
Figure 13
5A-3. Connect the other end of the “Pressure Hose Assembly” (Figure 14) to
The original factory engine supply line shown in figures 11 & 12. It will “click” when
properly connected.
Figure 14
5A-4 Any excess fuel hose can be addressed by routing the hose in a fashion to take up the
extra length, or a section of the hose can be removed. Push lock splices have been
included if you choose to remove the excess hose.
