Section 4 AirDog
®
II & Mounting Brackets
Installing the AirDog
®
II & Mounting Brackets
on the
Truck’s Frame, cont’d.
NOTE: The AirDog®II installs easily and is well protected from road debris when mounted on
the inside of the driver’s side frame.
Mount the AirDog®II with the
Inside Driver’s Side Frame Rail
Fuel In port toward Rear of Vehicle
Inside
Driver’s Side
Frame Rail

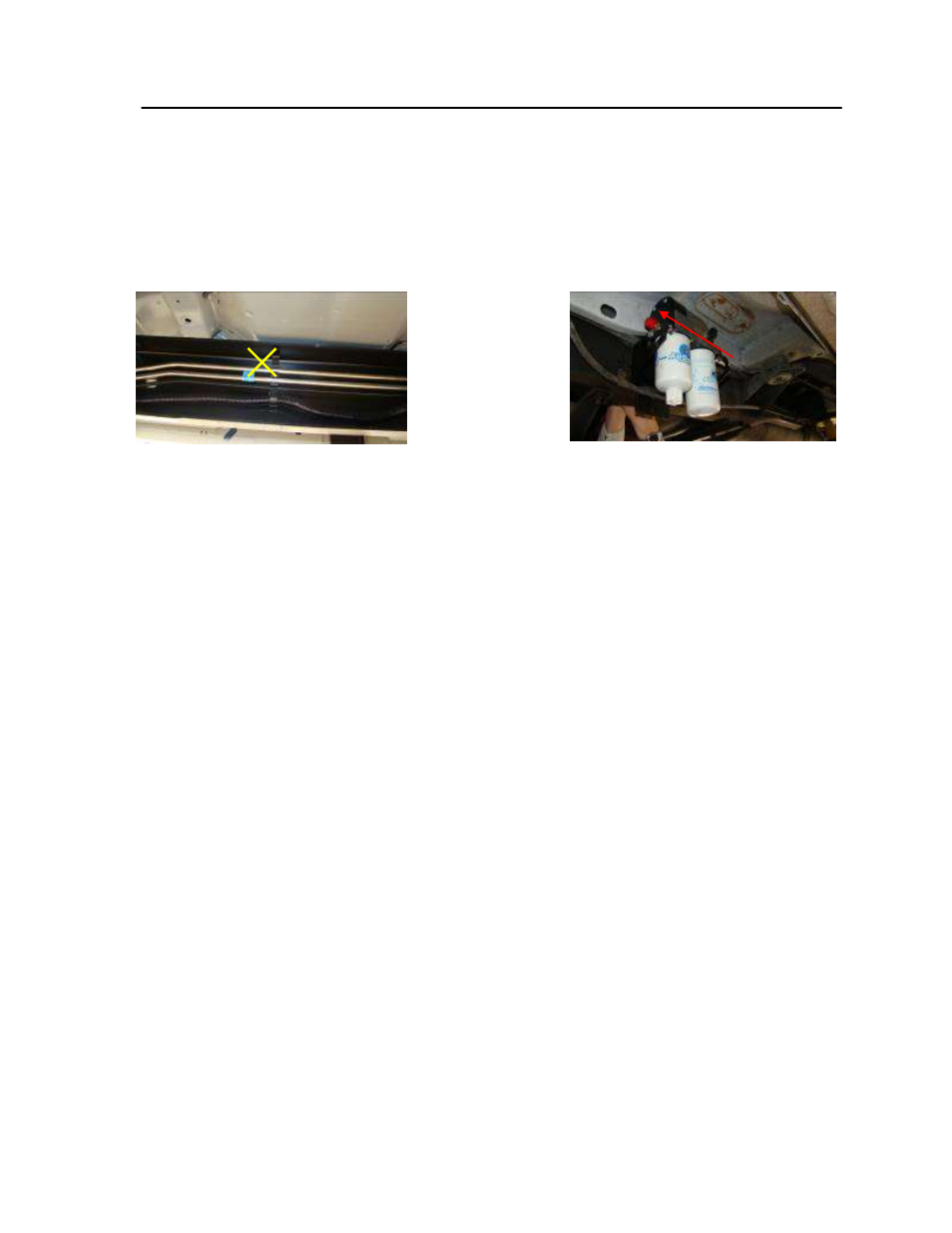

Figure 9
Figure 10
4-6.
Clamp the frame between the AirDog®II bracket assembly and the backing plate
using the 3/8” bolts, lock washers, and nuts included in the kit. Properly torque all
fasteners!
NOTE: Be sure to mount the AirDog®II on the Ford pickup so the “FUEL IN” port is directed
toward the REAR of the vehicle.
