The following link options (output configurations) are available:
1. MONO (no stereo links)

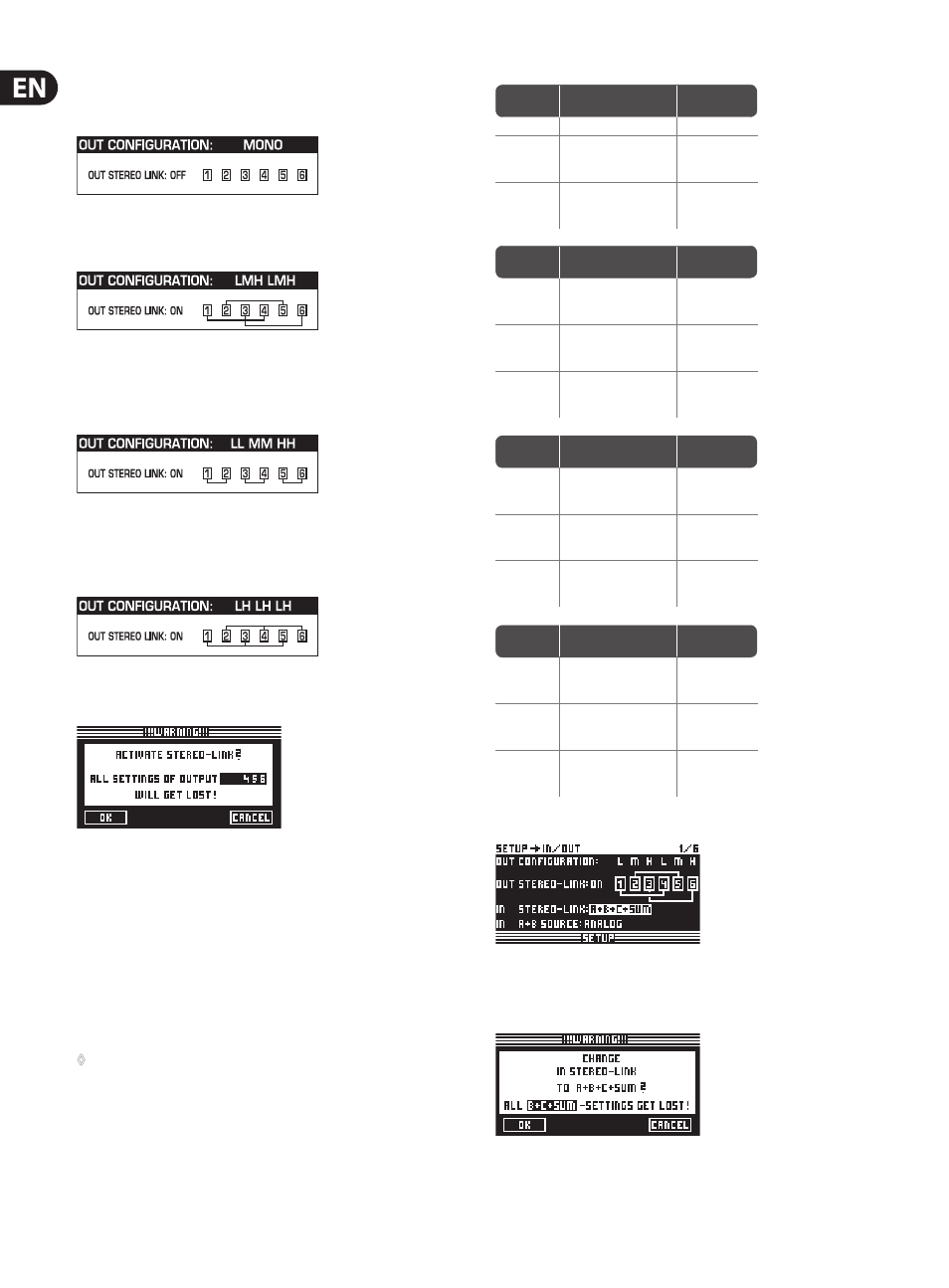

Fig. 4.4: Output configuration MONO
2. L(1) M(2) H(3) L(4) M(5) H(6)
Fig. 4.5: Output configuration LMHLMH
Link: L(1) > L(4) / M(2) > M(5) / H(3) > H(6)
3. L(1) L(2) M(3) M(4) H(5) H(6)
Fig. 4.6: Output configuration LLMMHH
Link: L(1) > L(2) / M(3) > M(4) / H(5) > H(6)
4. L(1) H(2) L(3) H (4) L(5) H(6)
Fig. 4.7: Output configuration LHLHLH
Link: L(1) > L(3) > L(5) / H(2) > H(4) > H(6)
Fig. 4.8: Setup ➠ In/Out
When Out Stereo Link is enabled, the unit warns you that all settings for the
linked outputs will be lost, because they will be overwritten with the values of
the output to be selected.
Any further changes to the parameters of a specific output will be transferred
directly to the linked output. However, any edits made to a LONG DELAY value
(see chapters 4.2.2 and 4.5.5) will not be transferred to the other output.
This parameter can be adjusted specifically for each output. SHORT DELAY
settings (see chapters 4.2.2 and 4.5.5) will be transferred as long as OUT Stereo
Link is on.
◊
In the MONO configuration, the Out Stereo Link function cannot
be activated.
OUT
Configuration
MONO 123456
LINK-Activation
OUT Stereo Link
OFF
not available
SHORT Delay
Link (Chassis)
1 ➟ 2 ➟ 3 ➟ 4 ➟ 5 ➟ 6
Sb ➟ L ➟ LM ➟ M ➟ HM ➟ H
activated by enabling
“OUT STEREO-LINK”
on SETUP-page 1/6
LONG Delay Link
(Loudspeakers)
1 ➟ 2 ➟ 3 ➟ 4 ➟ 5 ➟ 6
Sb ➟ L ➟ LM ➟ M ➟ HM ➟ H
activated by
enabling “LINK” on
OUT-page 8/8
OUT
Configuration
LMH LMH 123 456
LINK-Activation
OUT Stereo Link
1 ➟ 4 2 ➟ 5 3 ➟ 6
L ➟ L M ➟ M H ➟ H
activated by enabling
”OUT STEREO-LINK“
on SETUP-page 1/6
SHORT Delay
Link (Chassis)
1 ➟ 4 2 ➟ 5 3 ➟ 6
L ➟ L M ➟ M H ➟ H
activated by enabling
”OUT STEREO-LINK“
on SETUP-page 1/6
LONG Delay Link
(Loudspeakers)
1 ➟ 2 ➟ 3 4 ➟ 5 ➟ 6
L ➟ M ➟ H L ➟ M ➟ H
activated by
enabling ”LINK“ on
OUT-page 8/8
OUT
Configuration
LL MM HH 12 34 56
LINK-Activation
OUT Stereo Link
1 ➟ 2 3 ➟ 4 5 ➟ 6
L ➟ L M ➟ M H ➟ H
activated by enabling
”OUT STEREO-LINK“
on SETUP-page 1/6
SHORT Delay
Link (Chassis)
1 ➟ 2 3 ➟ 4 5 ➟ 6
L ➟ L M ➟ M H ➟ H
activated by enabling
”OUT STEREO-LINK“
on SETUP-page 1/6
LONG Delay Link
(Loudspeakers)
1 ➟ 2 ➟ 3 4 5 ➟ 6
L ➟ L M ➟ M H ➟ H
activated by
enabling ”LINK“ on
OUT-page 8/8
OUT
Configuration
LH LH LH 12 34 56
LINK-Activation
OUT Stereo Link
1 ➟ 3 ➟ 5 2 ➟ 4 ➟ 6
L ➟ L ➟ L H ➟ H ➟ H
activated by enabling
”OUT STEREO-LINK“
on SETUP-page 1/6
SHORT Delay
Link (Chassis)
1 ➟ 3 ➟ 5 2 ➟ 4 ➟ 6
L ➟ L ➟ L H ➟ H ➟ H
activated by enabling
”OUT STEREO-LINK“
on SETUP-page 1/6
LONG Delay Link
(Loudspeakers)
1 ➟ 2 3 ➟ 4 5 ➟ 6
L ➟ H ➟ L H ➟ L ➟ H
activated by
enabling ”LINK“ on
OUT-page 8/8
Tab. 4.1: Survey of all OUT LINK configurations
Fig. 4.9: Setup ➠ In/Out
The inputs can also be linked using the parameter IN STEREO LINK. Thus, all
settings of one input can be transferred to another input, or to all inputs.
Fig. 4.10: Setup ➠ In/Out
