6.1 Stereo tri-amp operation
XENYX X2222USB Mixing Console
EUROPOWER EP2000
Stereo power amplifier
High (3)
High (6)
Mid (2)
Mid (5)
Low (1)
Low (4) Loudspeaker left Loudspeaker right
Left
In A
Out 1 2 3 4 5 6
In B
Stereo output
Right

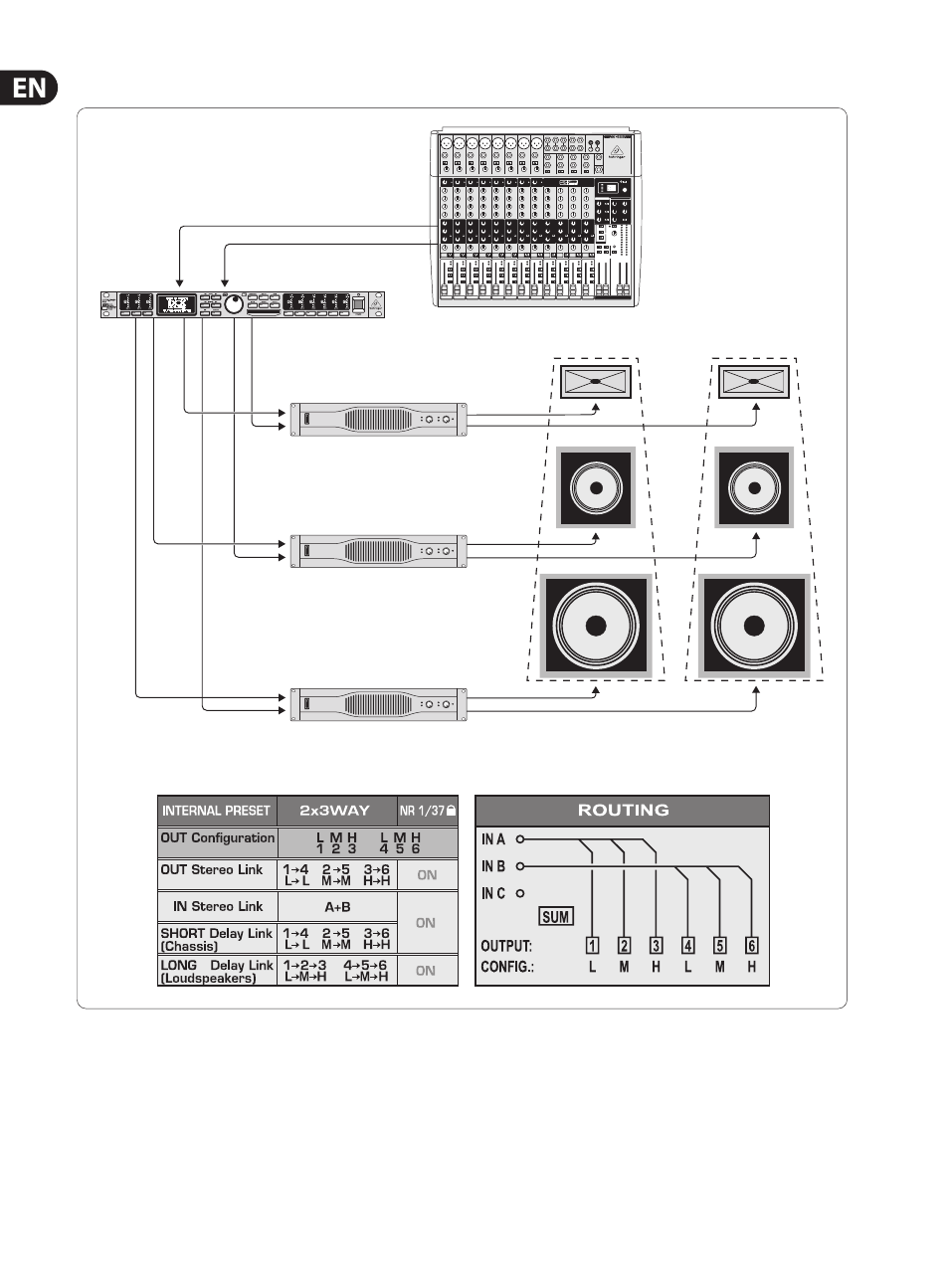

Fig. 6.1: Stereo 3-way operation
Stereo Tri-Amp operation is one of the most popular applications. The stereo input signals (In A+B) are split up into three frequency bands per stereo side and then
reproduced using the 6 outputs. This ensures the best possible use of your 3-way sound reinforcement system, since the individual drivers reproduce only those
frequency ranges for which they are ideally suited. Intermodulation distortion is thus effectively minimized.
